Epson PowerLite EB-L200W

To Next Page

To Previous Page

113

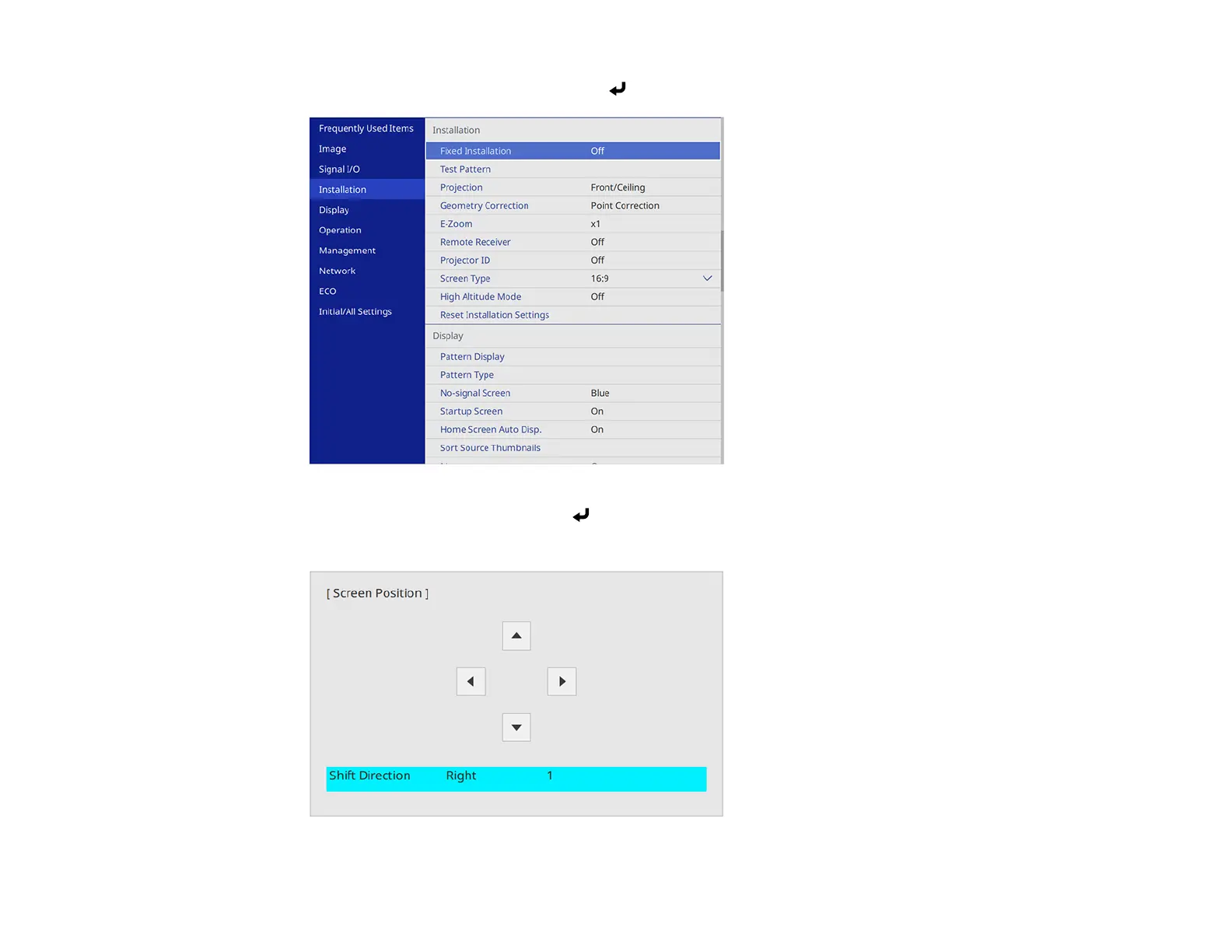

3. Select the Installation menu and press Enter.

4. Select Screen Position and press Enter.

5. Use the arrow buttons on the remote control or projector to adjust the position of the image.
