8 Speaker

9 HDMI1 and HDMI2 ports

10 Computer1 and Monitor Out/Computer2 ports

11 Video port

12 Remote receiver

13 LAN (network) port

14 USB-A port

15 USB-B port

16 Wireless LAN module cover screw

Parent topic: Projector Part Locations

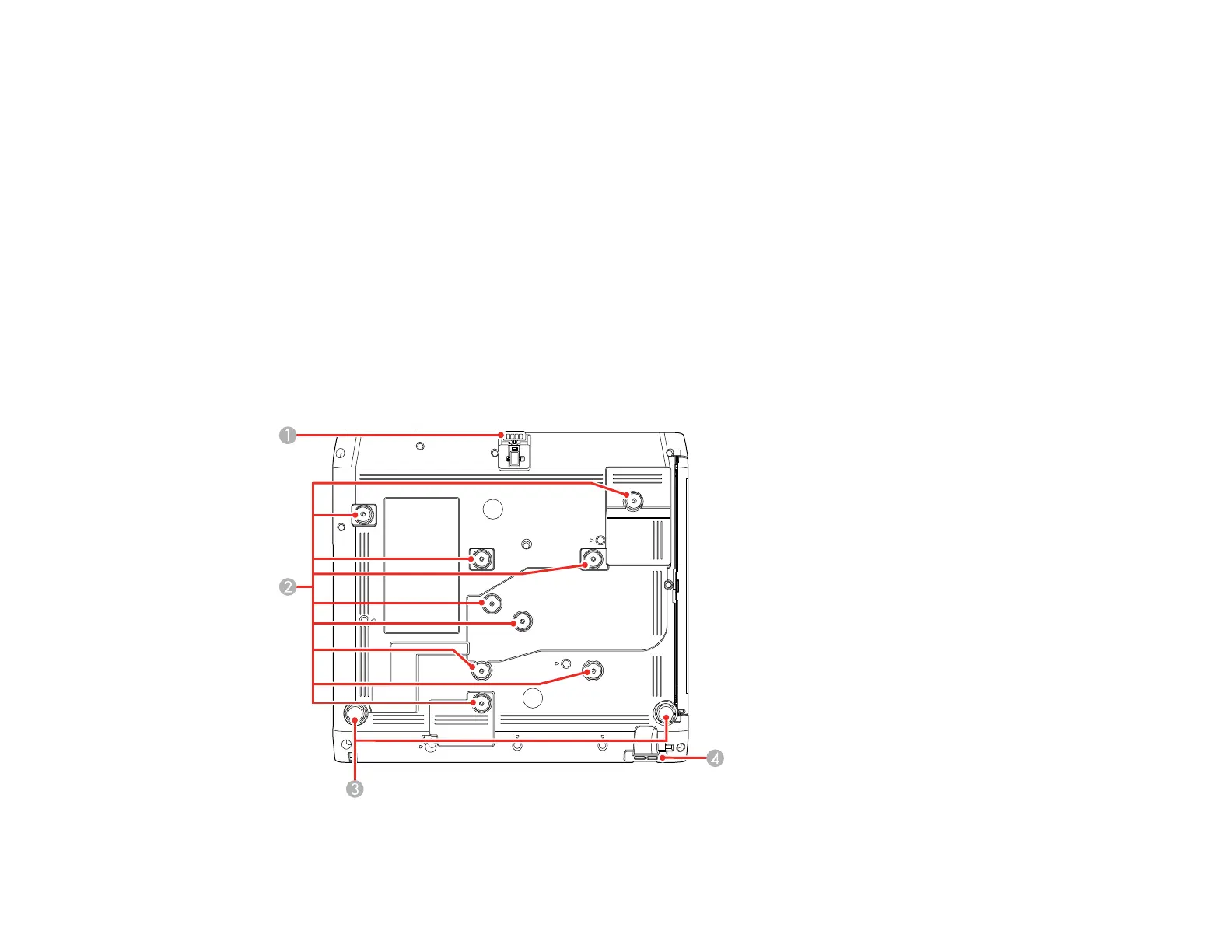

Projector Parts - Base
