22
1 Front adjustable foot
2 Ceiling/wall mount holes (9)
3 Rear feet
4 Security cable attachment point
Note: Use M4×9mm screws for mounting the projector.
Parent topic: Projector Part Locations

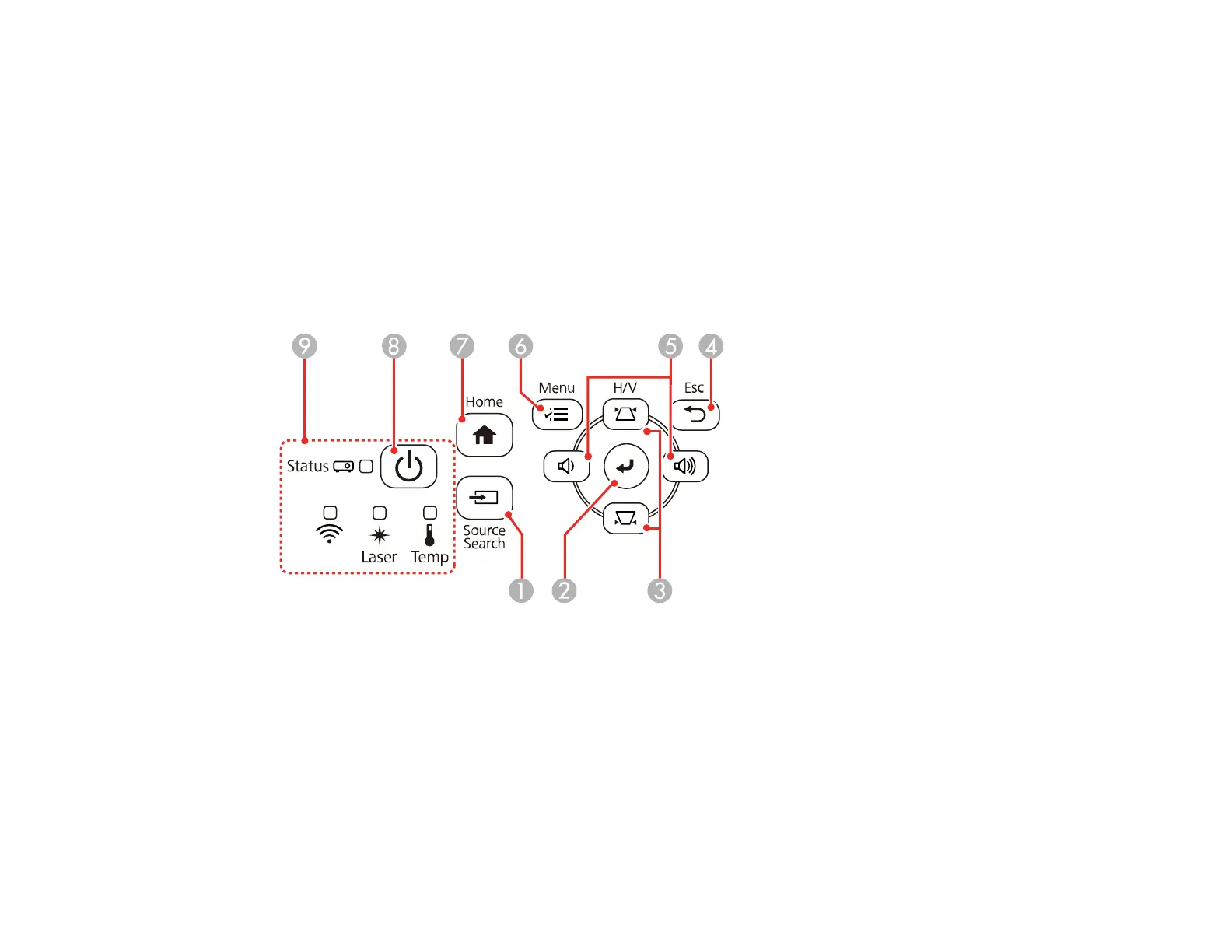

Projector Parts - Control Panel
1 Source Search button (searches for connected video sources)
2 Enter button (selects options)
3 Vertical keystone adjustment buttons (displays the adjustment screen and adjusts screen shape)
and arrow buttons
4 Esc button (cancels/exits functions)
5 Volume buttons (adjust speaker volume), horizontal keystone adjustment buttons, and arrow
buttons
6 Menu button (accesses projector menu system)
