Epson PowerLite S7 User Manual

Fine-Tuning the Projector 55

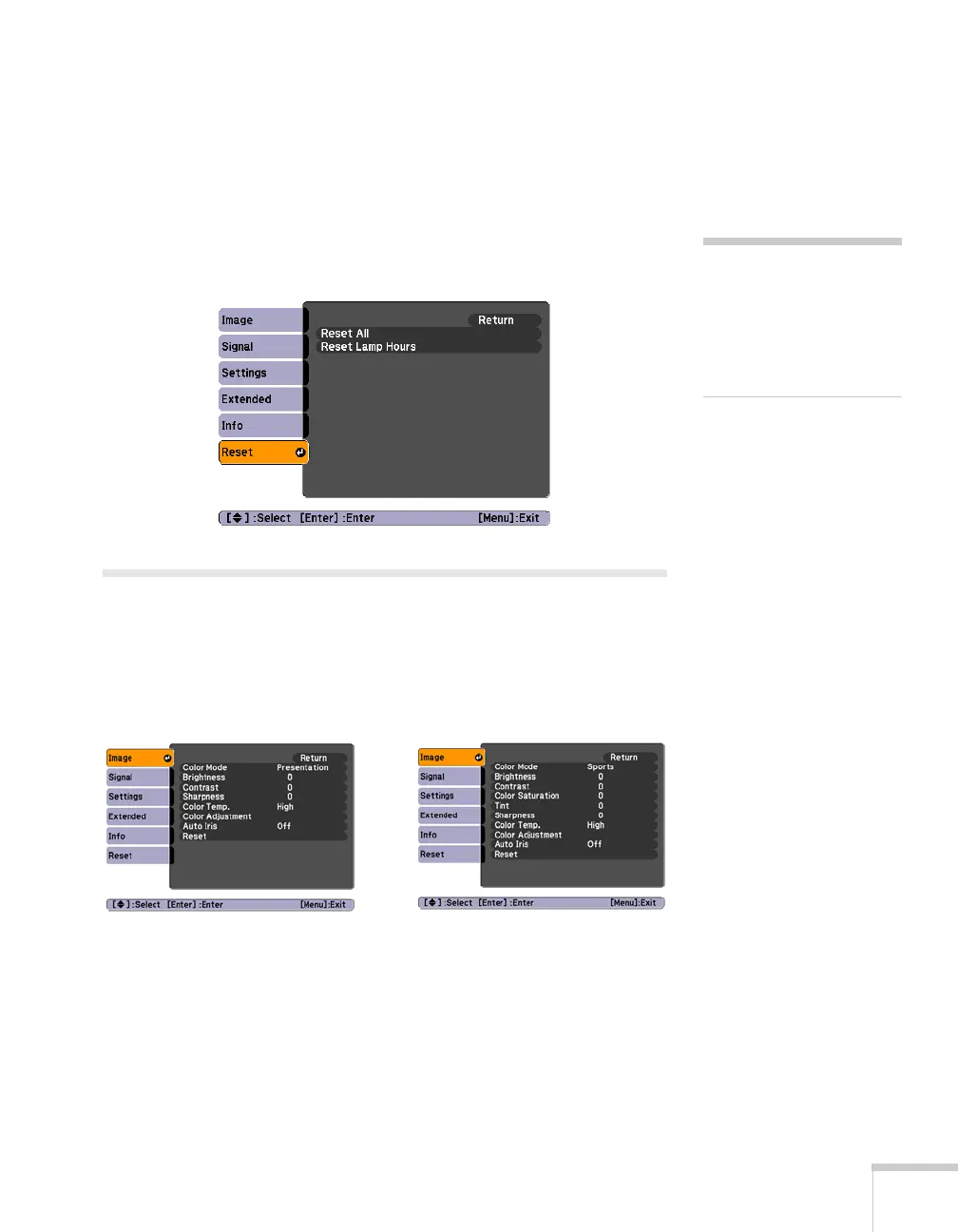

Restoring the Default Settings
You can use the Reset option on any menu to restore the
factory-default settings for the settings in that menu.
To restore all the projector settings to their factory-default values,
select the
Reset menu, highlight Reset All, press Enter, and select
Yes to confirm.
Adjusting the Image
1. You can use the Image menu to adjust the brightness, sharpness,
color, tint, contrast, and
Auto Iris settings.Press the Menu
button on the projector or remote control and select the
menu. You see a screen similar to one of these:
note
When you select Reset All
in the Reset menu, it does
not reset the Input Signal,
User’s Logo, Language, or
Lamp Hours settings.
Computer/RGB video Component video/
Composite video/
S-Video

Epson PowerLite S7 Specifications

General

projection system	Epson 3LCD, 3-chip optical engine
pixel number	480, 000 dots (800 x 600) x 3
native resolution	800 x 600 (SVGA)
resize	640 x 480 (VGA), 1024 x 768 (XGA), 1152 x 864 (SXGA1), 1280 x 800 (WXGA), 1440 x 900 (WSXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1280 x 768 (WXGA60-1), 1360 x 768 (WXGA60-2), 1400 x 1050 (SXGA+)
throw ratio range	1.45 – 1.96 (4:3)
size (projected distance)	30" – 350" (2.9' – 34.4')
keystone correction manual vertical	± 30 degrees
white light output	2300 lumens (ISO 21118 Standard)
color light output	2300 lumens
lamp type	175 W UHE (E-TORL)
lamp life (ECO mode)	up to 5000 hours
lamp life (normal mode)	up to 4000 hours
power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	244 W (Normal Mode), 2.6 W Standby (Communication On), 0.3 W Standby (Communication Off)
operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
speaker	1 W (Mono)
fan noise (normal mode)	34 dB
fan noise (ECO mode)	29 dB

Weight and Dimensions

dimensions (W x D x H) including feet	11.6" x 9.0" x 3.1"
dimensions (W x D x H) excluding feet	11.6" x 9.0" x 3.0"
weight	5.1 lb/2.3 kg
