Right view

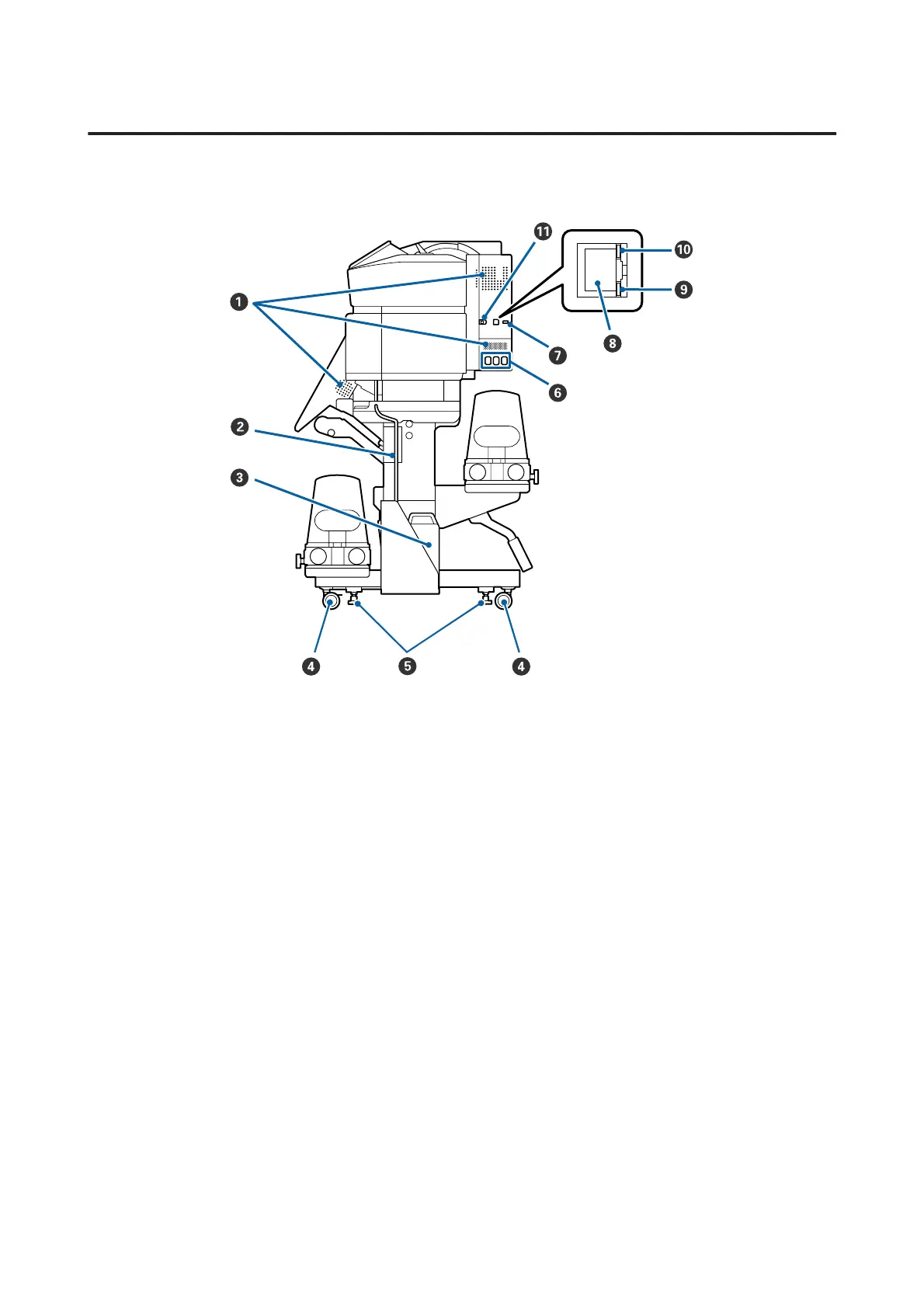

The illustration shows the SC-S80600L Series.
A Airflow vents
Allows air to flow into the printer. Do not obstruct these vents.
B Waste ink tube
Tubes for ejecting waste ink. Be sure the end of this tube is in the Waste Ink Bottle while the printer is in use.
C Waste Ink Bottle
Waste ink collects in this bottle. The shape varies according to the model being used.
Replace it with a new Waste Ink Bottle when a message is displayed on the control panel prompting you to do so.
U “Disposing of Waste Ink” on page 76
D Casters
There are two casters on each leg. Once installation is complete, the front casters should be kept locked while the
printer is in use.
E Adjusters
When installing on a carpeted floor or a sloping floor, check level gauge of the printer and adjust these to keep the
printer stable.
U Setup Guide
