EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 146
4.3.14 CR Guide Frame
V External View

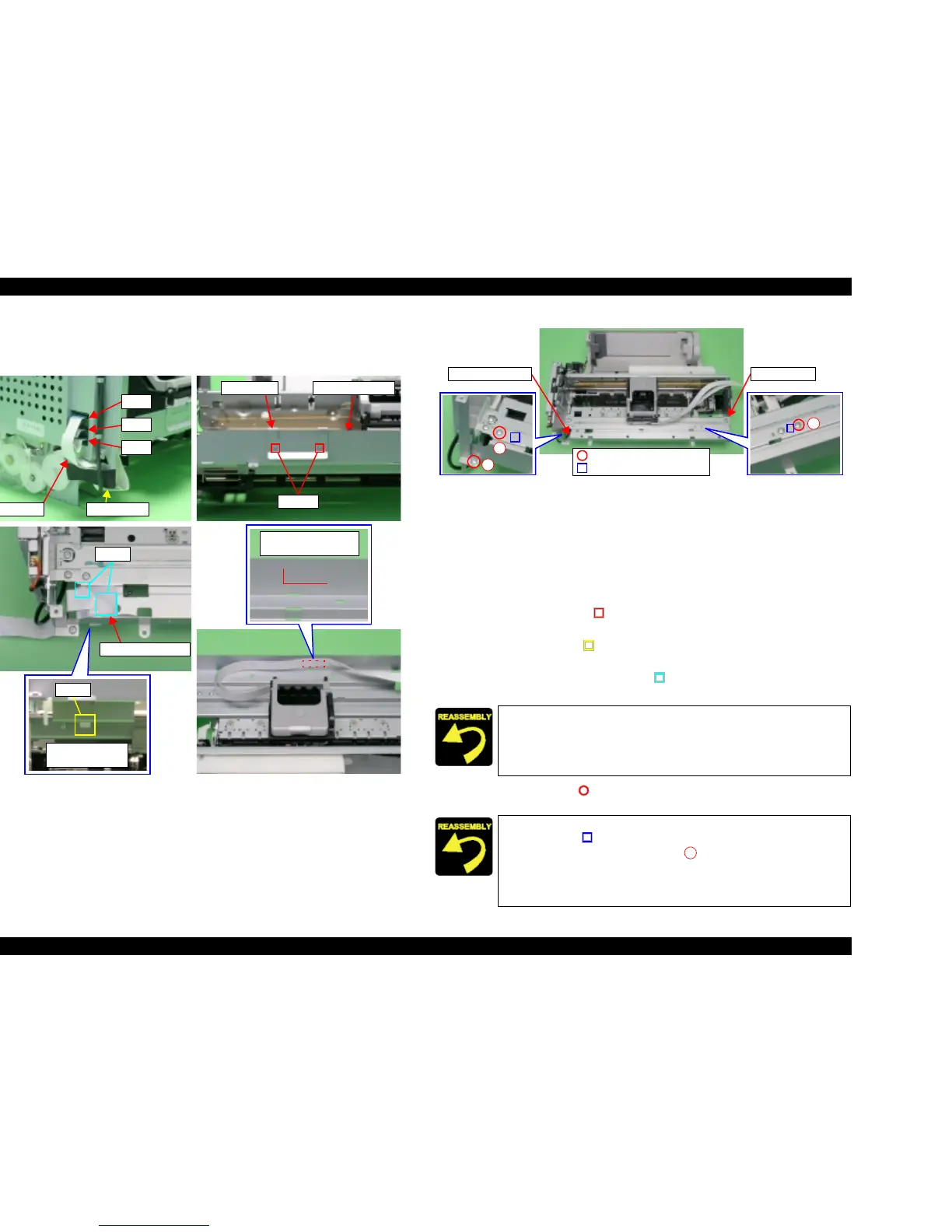

Figure 4-35. CR Guide Frame Removal (1)
Figure 4-36. CR Guide Frame Removal (2)
V Part/Unit that should be removed before removing CR Guide Frame.
Document Cover / Paper Support Assy. / Scanner Unit / Panel Unit /
Housing Upper / Printer Mechanism / Main Board Unit
V Removal procedure
1. Peel off the acetate tape (x1) for securing Head FFC (x3).
2. Disconnect Head FFCs from the connectors (CN5, CN6, CN7) of Main Board.
3. Release the dowels (x2, ) for securing FFC Guide, and then remove FFC
Guide from CR Guide Frame.
4. Release the hook (x1, ) for securing FFC Frame Holder from lower side of
CR Guide Frame, and then release FFC Frame Holder along with Head FFCs.
5. Release Head FFCs from hooks (x2, ) of FFC Frame Holder.
6. Peel off Head FFCs secured to CR Guide Frame by the double-sided tape (x1).
7. Remove screws (x3, ) for securing CR Guide Frame, and then remove CR
Guide Frame from Printer Mechanism.
Head FFC Acetate tape
CN7
CN5
CN6
FFC Guide
Dowels
CR Guide Frame
FFC Frame Holder
Hooks
Hook
CR Guide Frame
Lower Side
Printed Lines
(Installation Position)
Use the double-sided tape to attach Head FFCs to the printed line
position on CR Guide Frame.
T Align the positioning holes (x2) of CR Guide Frame with the
dowels (x2, ) of Front Frame.
T Locations for using the screws ( ) for combined tightening of
Main Board Unit and CR Guide Frame are at the lower side
screw hole tabs of CR Guide Frame.
T Tighten the screws in order shown by figure.
2
3
1
C.B.S 3x6 F/Zn (7±1kgfcm)
Dowels
CR Guide Frame Front Frame
3
To Next Page
