Epson Stylus S22 User Manual

Epson Stylus NX125/T13/NX130 series Revision F
Disassembly/Assembly Details of Disassembling/Assembling by Parts/Unit 17
Confidential

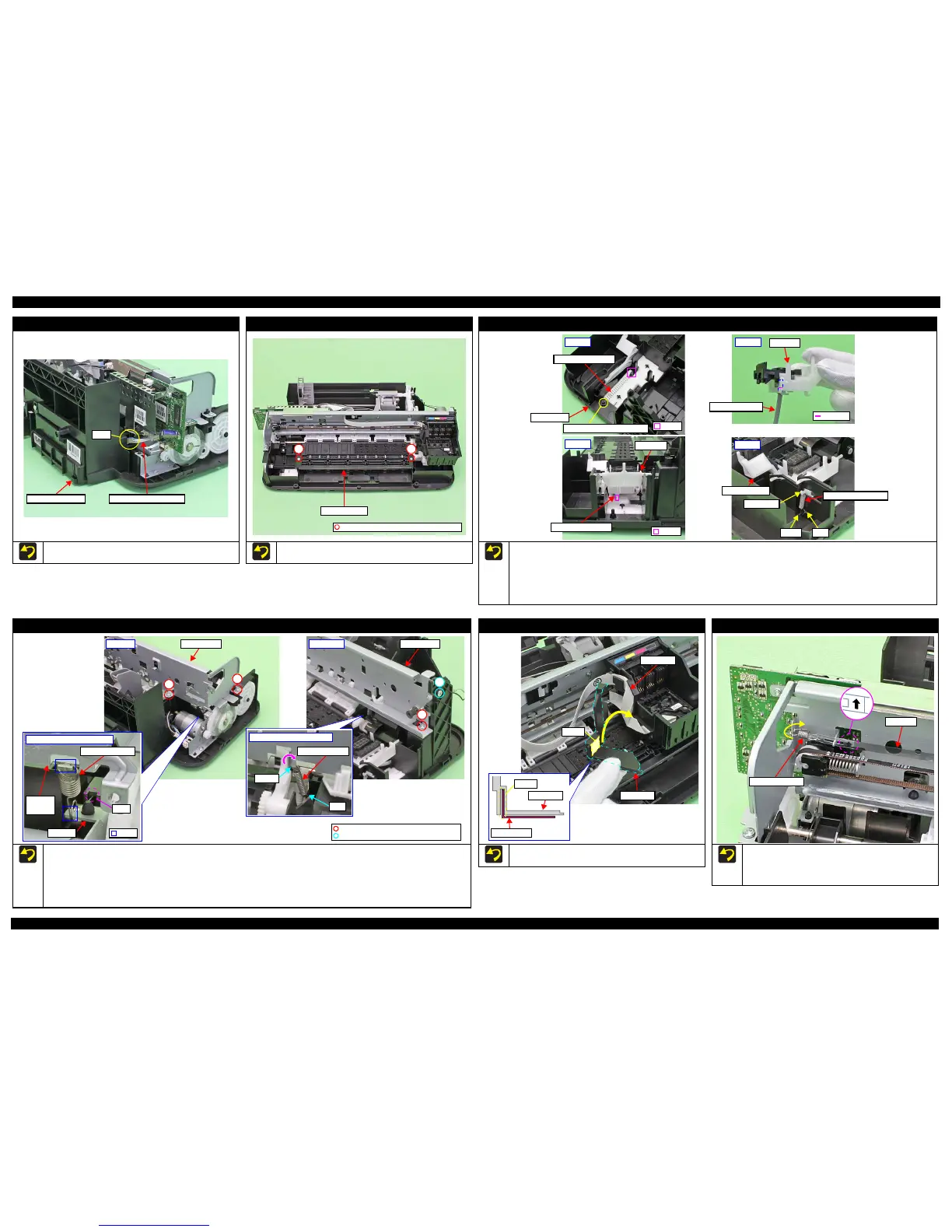

Power Supply Unit
Route the Power Supply Unit cable through the hole of the Frame
Base.
Power Supply Unit Power Supply Unit
Hole
Power Supply Unit Cable
EJ Frame Assy
Tighten the screws in the order indicated in figure above.
12
EJ Frame Assy
C.B.P-TITE SCREW 3x8 (5.0 ± 0.5 kgf·cm)
Cap Unit
When installing the Cap Unit, follow the instruction below.
1. Temporarily secure the Cleaner Case Spring to the hook and dowel of the Frame Base.
2. Insert the Waste Ink Tube to the Cap Unit until point A (p 19) is hidden.
3. Install the Cap Unit to the Frame Base, and attach the Cleaner Case Spring which is secured temporary earlier to the hook on the Cap Unit.
4. Insert one leg of the Cleaner Lever Spring to the hole of the Frame Base, and secure it to the dowel of the Frame Base, then secure the other leg
to the protrusion of the Lever Cleaner.
Cleaner Lever Spring
Dowel Hole
Lever Cleaner
Protrusion
Waste Ink Tube
Point A
Cleaner Case Spring
Hook
Cleaner Case Spring
Cap Unit
Cap Unit
Dowel for temporarily secure
Frame Base
Step 1
Step 2
Step 3
Step 4
Hook
Main Frame
 When installing the Grounding Spring of the lower part of the 80-digit side, follow the instruction below.
1. Insert the tip of the spring to the hole of the Frame Base.
2. Attach the eye of the spring to the Bracket and secure the other eye to the hook on the Main Frame.
 When installing the Extension Spring of the lower part of the 0-digit side, attach the tip of the Extension Spring to the hole of the Frame Base
first. Then attach the leg of the spring to the cutout of the Main Frame from the left side as seen from the rear of the printer.
 Tighten the screws in the order indicated in figure above.
Hook
Grounding Spring
Hole
Bracket
Main
Frame
Lower part of 80-column side
1
Main Frame
2
3
4
Main FrameLeft Side Right Side
C.B.P-TITE SCREW 3x8 (5.0 ± 0.5 kgf·cm)
C.B.S-TITE SCREW 3x5 (7.5 ± 0.5 kgf·cm)
Cutout
Hole
Lower part of 0-column side
Extension Spring
Printhead
Insert the folded part of the Head FFC into the groove of the FFC
Cover.
FFC Cover
Head FFC
Groove
FFC Cover
Groove
Head FFC
CR Scale
 When installing the CR Scale, confirm that the arrows on both
the edges of the CR Scale face upward.
 When installing the Extension Spring, be sure to attach it with
its leg facing the rear of the printer.
CR Scale
Extension Spring

Epson Stylus S22 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum print size	210 x 297 mm
Paper tray media types	Envelopes, Glossy paper, Photo paper, Plain paper
Paper tray media weight	0 - 75 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	10x15 \
Maximum ISO A-series paper size	A4
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	28 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Printing noise level	42 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.2 W
Power consumption (printing)	10.1 W
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows XP Windows Vista Windows 7 Mac 10.4.11 +
Country of origin	Thailand
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	60 pc(s)
Quantity per pallet (UK)	80 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)
Package depth	470 mm
Package width	295 mm
Package height	200 mm
Package weight	3400 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	227 mm
Width	415 mm
Height	135 mm
Weight	2400 g
