Epson Stylus TX121 Service Manual

Epson Stylus NX125/T13/NX130 series Revision F
Confidential
Maintenance Lubrication Point 29

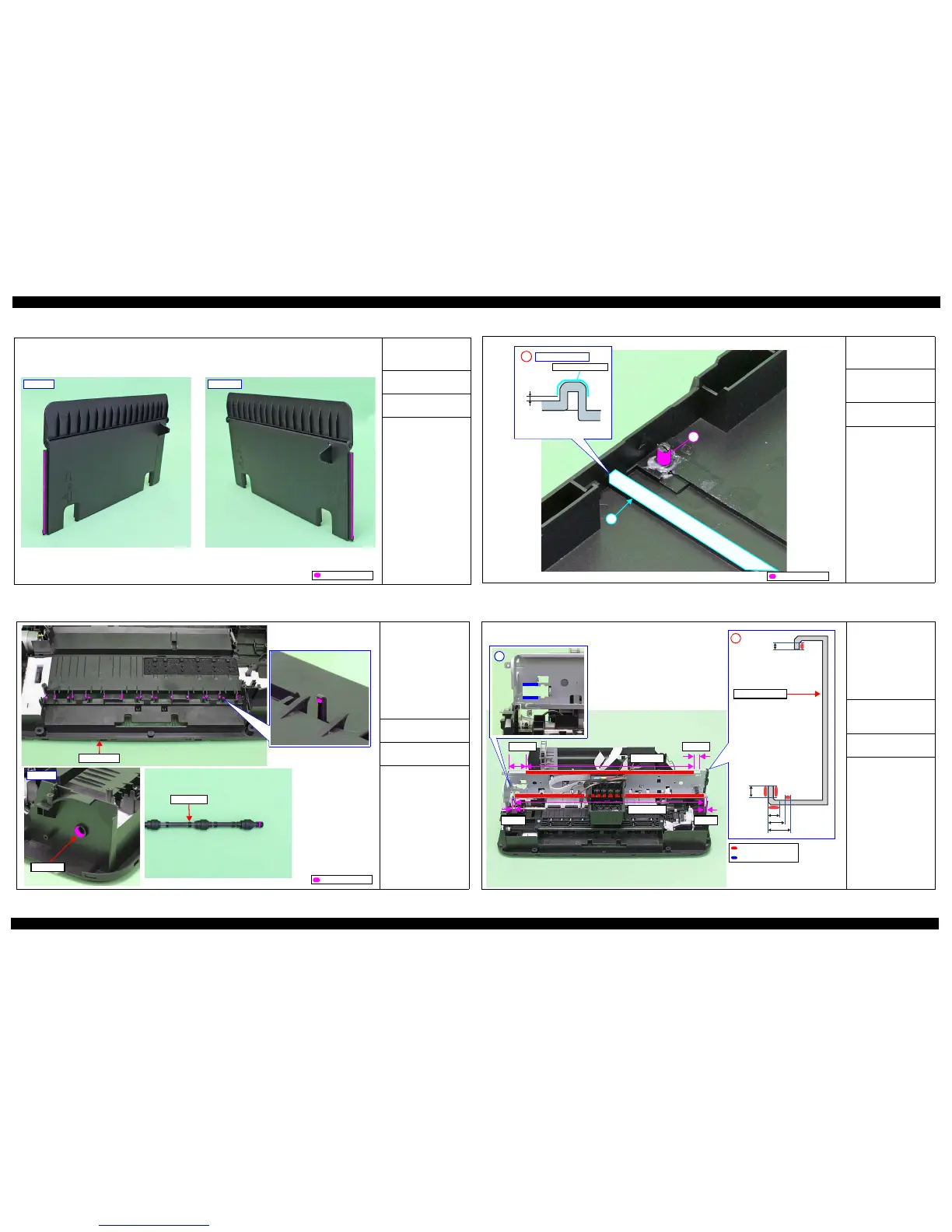

3.2 Lubrication Point
Figure 3-1. Lubrication on Paper Support Assy (NX125/NX130 series)
<Lubrication Point>
Rail of the Paper Support
Assy
<Type>
G-74
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with brush.
 Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Right side
Left side
Lubrication Point
Figure 3-2. Lubrication on Scanner Unit
<Lubrication Point>
Shaft on the Scanner
Housing
<Type>
1.G-94
2.G-94
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with brush.
 Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Lubrication Point
2
Cross-section view
1 mm
2.Lubrication area
2
1
Figure 3-3. Lubrication on EJ Roller
<Lubrication Point>
 Ribs (x20) of the
Frame Base
(contacting points with
the EJ Roller)
 Bearings of the Frame
Base (contacting points
with the EJ Roller)
 Shaft on the right side
of the EJ Roller
<Type>
G-71
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with injector.
Left side
Bearing
EJ Roller
Frame Base
Lubrication Point
Figure 3-4. Lubrication on Main Frame
<Lubrication Point>
 1.Contacting points
(x5) with the Carriage
Unit on the front side
of the Main Frame
 2.Contacting points
(x2) with the Driven
Pulley Holder
<Type>
1. G-71
2. G-71
<Application Amount>
Sufficient quantity
<Remarks>
 Wipe out grease.
 Apply with injector.
 Lubrication area:
・Top side of the Main
Frame: 316.4 mm
(x1)
・ Bottom side of the
Main Frame: 377.87
mm (x4)
2
3.2 mm
13 mm
5.1 mm
5 mm
6.6 mm
8.6 mm
2. Lubrication Point
1. Lubrication Point
316.4 mm
377.87 mm
35 mm
2 mm 2 mm
Main Frame
1

Epson Stylus TX121 Specifications

General

Print Technology	Inkjet
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Paper Sizes	A4, A5, A6, B5, Letter, Legal
Paper Capacity	100 sheets
Ink Cartridge	Black, Cyan, Magenta, Yellow
Operating System Compatibility	Mac OS X 10.4.11 or later
Print Speed (Black)	28 ppm (Draft)
Print Speed (Color)	15 ppm (Draft)
