Epson Stylus TX121 Service Manual

Confidential
Appendix Connector Summary 34
Epson Stylus NX125/T13/NX130 series Revision F
4.2 Connector Summary
Cable connections of this printer are shown below.

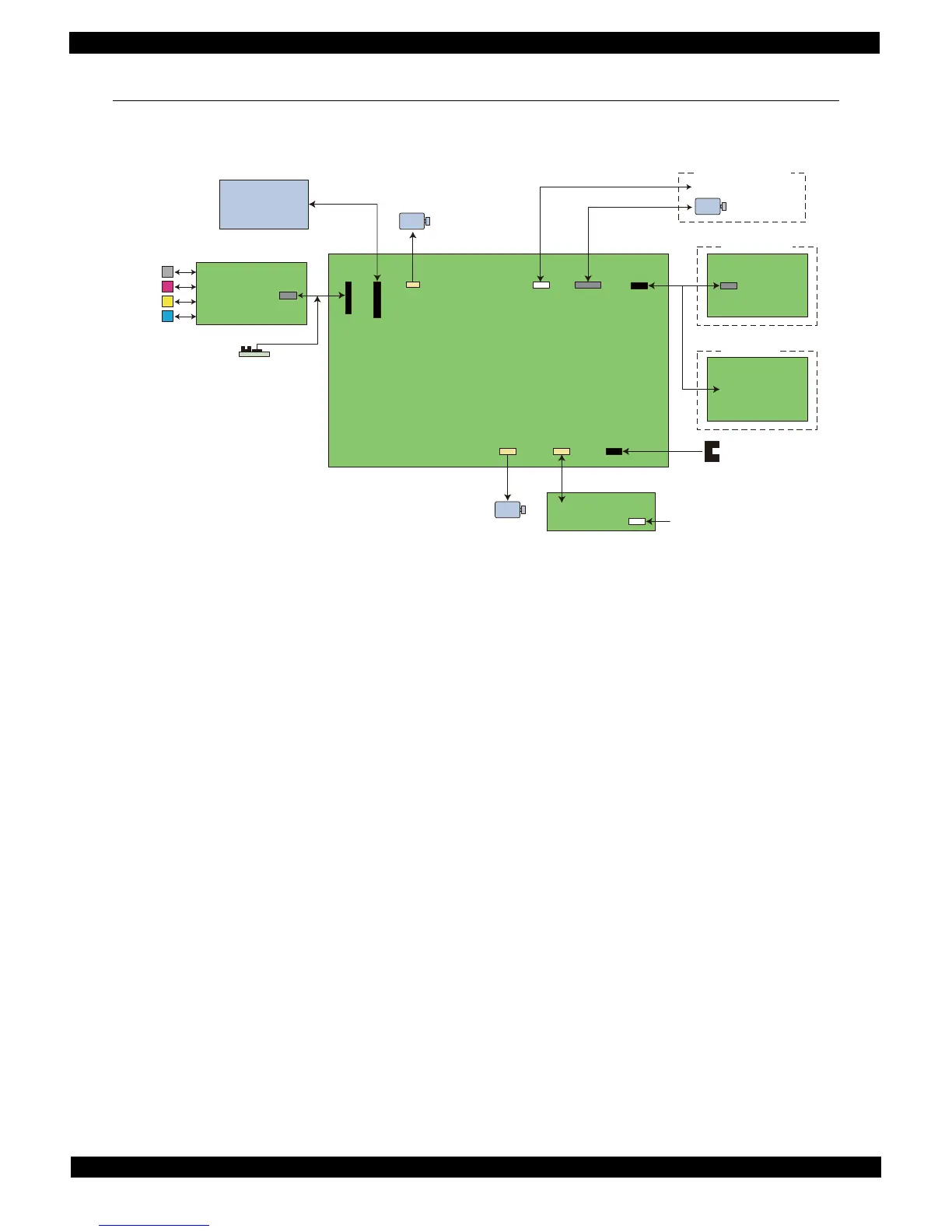

Figure 4-1. Connector Summary
B
M
Y
C
PS Board
Panel Board
Panel Board
J301
J3 J2
J5
J8
J7 J11 J10
J9
J4
Scanner Unit
Panel Unit
J601
CIS Module
J201
J201
PF Motor
Main Board
PF Encoder
Scanner Motor
Printhead
CR Contact Module
CR Encoder
CR Motor
AC in
CSIC
Only NX125 series
Panel Unit
T13 series
NX125 series

Epson Stylus TX121 Specifications

General

Print Technology	Inkjet
Functions	Print, Scan, Copy
Maximum Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Paper Sizes	A4, A5, A6, B5, Letter, Legal
Paper Capacity	100 sheets
Ink Cartridge	Black, Cyan, Magenta, Yellow
Operating System Compatibility	Mac OS X 10.4.11 or later
Print Speed (Black)	28 ppm (Draft)
Print Speed (Color)	15 ppm (Draft)
