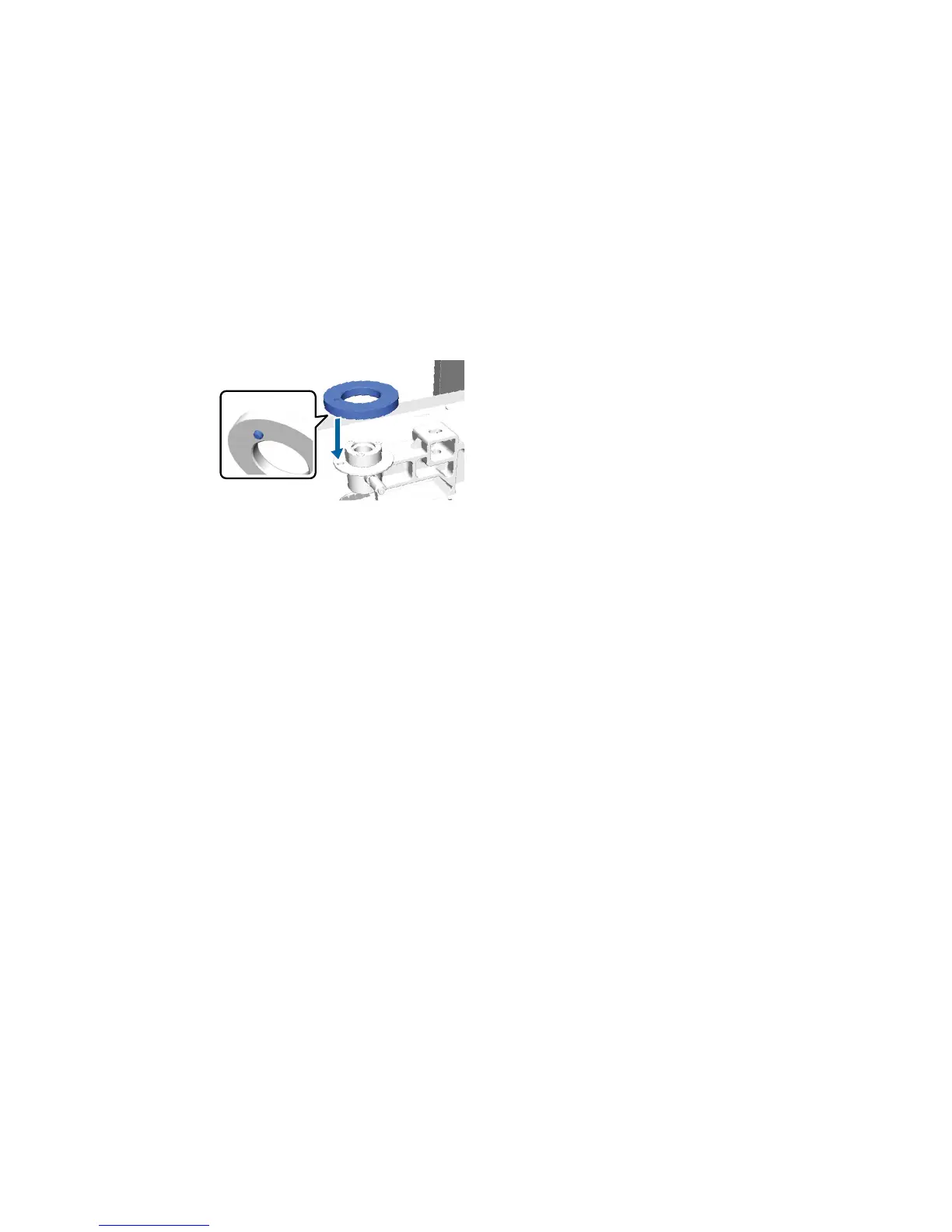

When attaching the indicator, align the protrusion on the round section with the hole as shown. If you
install it in an incorrect direction, the height adjustment lever does not move.
Parent topic: Printing on Thick Material
Related tasks
Removing the Round Platen Height Indicator
