Epson TM-P60II User Manual

11

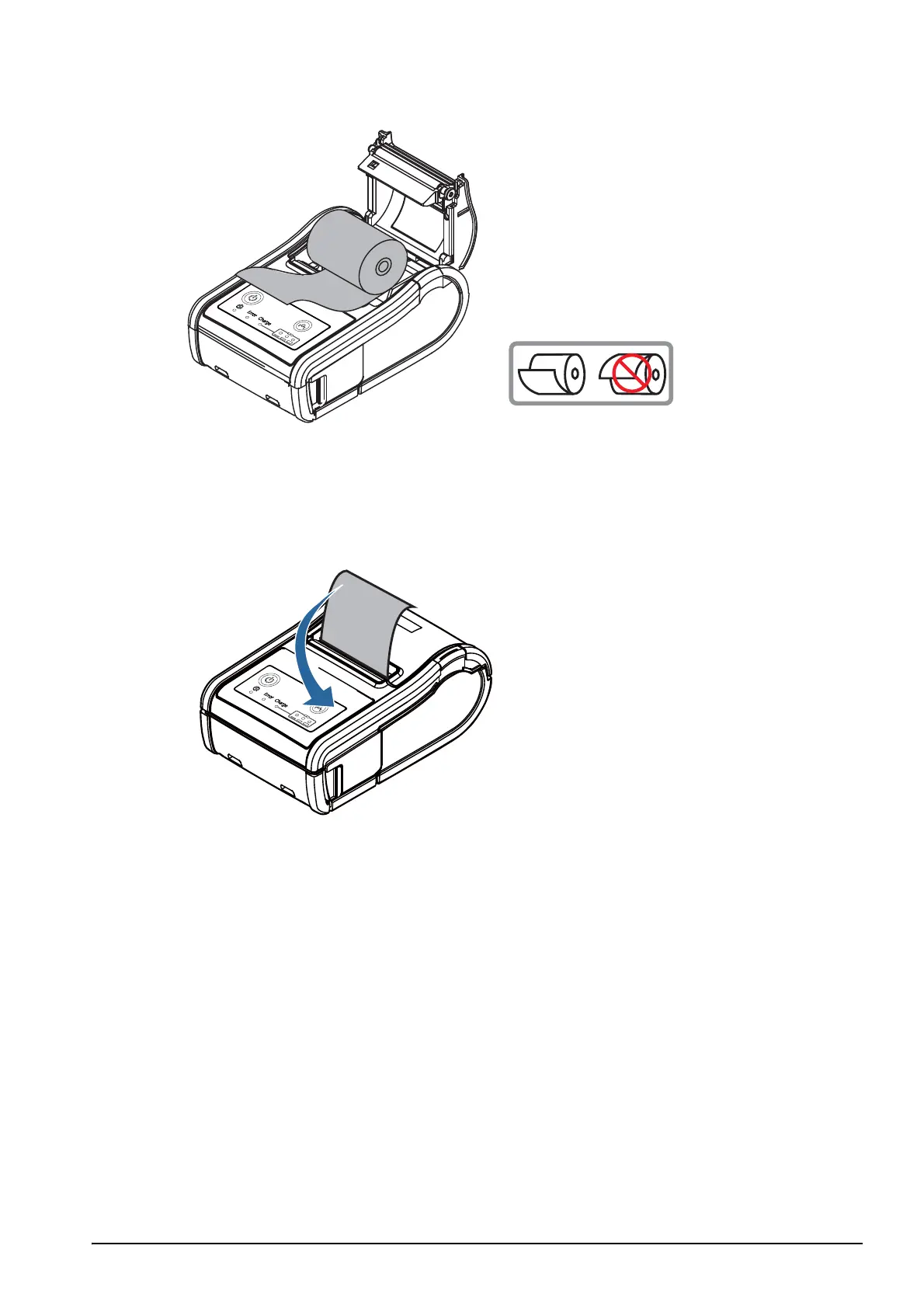

2. Remove the used roll paper core if there is one, and insert the new roll paper.
Note:
Note the direction the paper comes off the roll.
3. Pull out some paper, close the cover, and tear off the paper with the manual
cutter.
Installing or Replacing Roll Paper Vertically
You can hang the printer vertically on a belt using a belt clip on the back of the
printer. When you use the printer vertically, follow the steps below to install the
roll paper.
Note:
Be sure that the roll paper holder is on the bottom when you use the printer vertically.
1. Press the open button to open the roll paper cover.
2. Remove the used roll paper core if there is one.

Epson TM-P60II Specifications

General

Color	-
Print technology	Thermal line
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Product color	Black
Wi-Fi	Yes
Ethernet LAN	No
Optional connectivity	USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Country of origin	China
Media thickness	0.05 - 0.08 mm
Supported paper width	60 mm
Mean time between failures (MTBF)	120000 h
Mean cycles between failures (MCBF)	16000000
Operating relative humidity (H-H)	10 - 90 %
Cables included	USB
Pallet width	800 mm
Pallet height	966 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	288 pc(s)
Quantity per pallet (UK)	432 pc(s)
Quantity per pallet layer	36 pc(s)
Quantity per pallet layer (UK)	54 pc(s)
Package depth	230 mm
Package width	185 mm
Package weight	1040 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	159 mm
Width	103 mm
Height	65 mm
Weight	610 g
