Epson TM-T70II-DT User Manual

5 TM-T70II-DT User’s Manual
Part Names
Front Section
See Illustration A.
Power button (A2)
Press this button to turn on or shut down the product. Keep pressing the power
button to turn off the product forcibly. (See “Forced Termination” on page 8.)
Printer reset button (A3)
Press this button with a pointed object (such as a pen) to reset the printer unit.
Cover open lever (A7)
Press down this lever to open the roll paper cover.
Feed button (A6)
Press this button to feed the roll paper.
Roll paper cover (A4)
Open this cover to load/replace the roll paper.
Controller LEDs (A1)
Indicate the controller unit status.
Printer LEDs (A5)
Indicate the printer unit status.

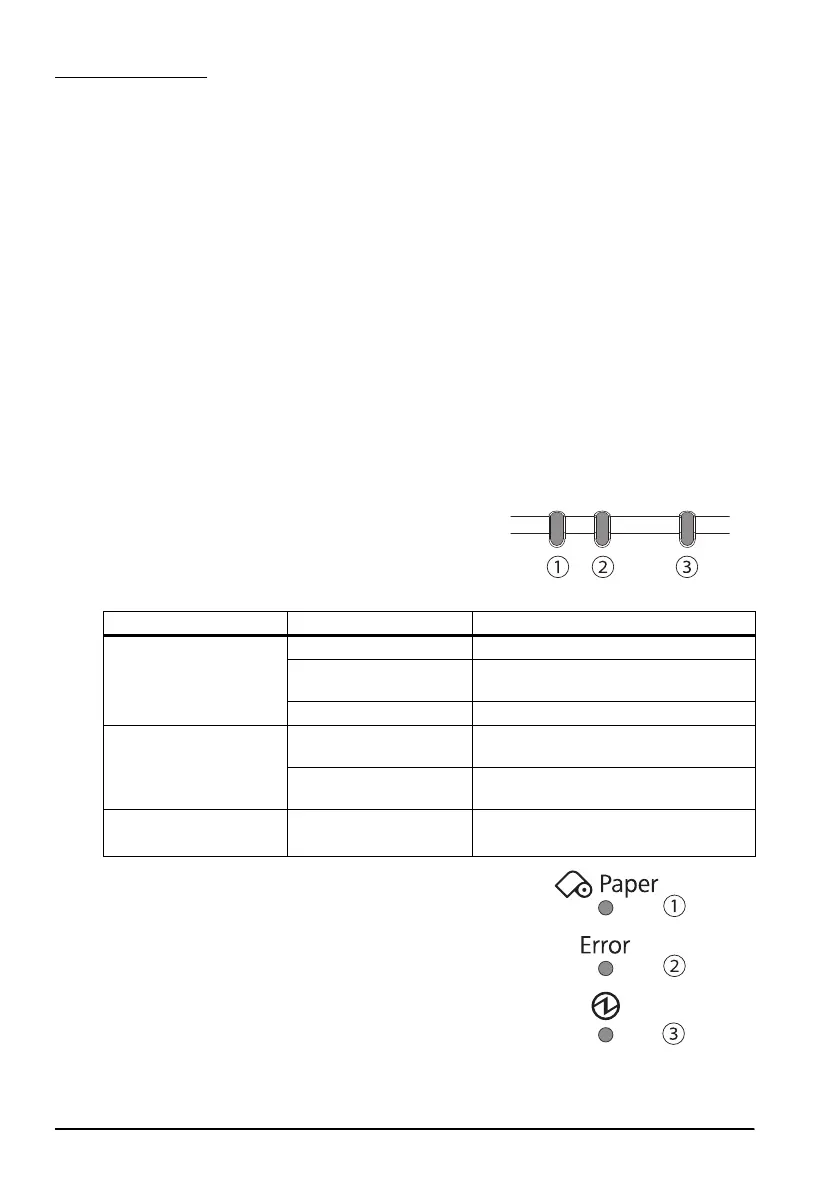

LED LED Status Meaning
➀ Status LED (Green) On Power is on.
Flashing (with approx.
1 sec intervals)
Standby.
Off Power is off.
➁ Status LED (Orange)
Flashing (with approx.
1 sec intervals)
Booting/Shutdown
Flashing (with approx.
160 msec intervals)
CPU temperature is high.
➂ Storage access LED
(Green)
On Accessing storage.

Epson TM-T70II-DT Specifications

General

Type	POS printer
Character size	0.99 x 2.4 mm
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Product color	Black
Maximum roll diameter	83 mm
USB connector	USB Type-A
Serial interface	Yes
Standard interfaces	Ethernet, RS-232, USB 2.0, VGA
Serial interface type	RS-232
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Safety	TUV
RAM capacity	4 GB
Certification	CE, EN55022 Class A
Country of origin	China
Built-in processor	Atom N2800 1.86GHz
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No
Ethernet LAN data rates	10, 100 Mbit/s
Pallet width	800 mm
Pallet height	2005 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	112 pc(s)
Quantity per pallet layer	12 pc(s)
Quantity per pallet layer (UK)	16 pc(s)
Package depth	275 mm
Package width	237 mm
Package height	265 mm
Package weight	4420 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	290 mm
Width	172 mm
Height	114 mm
