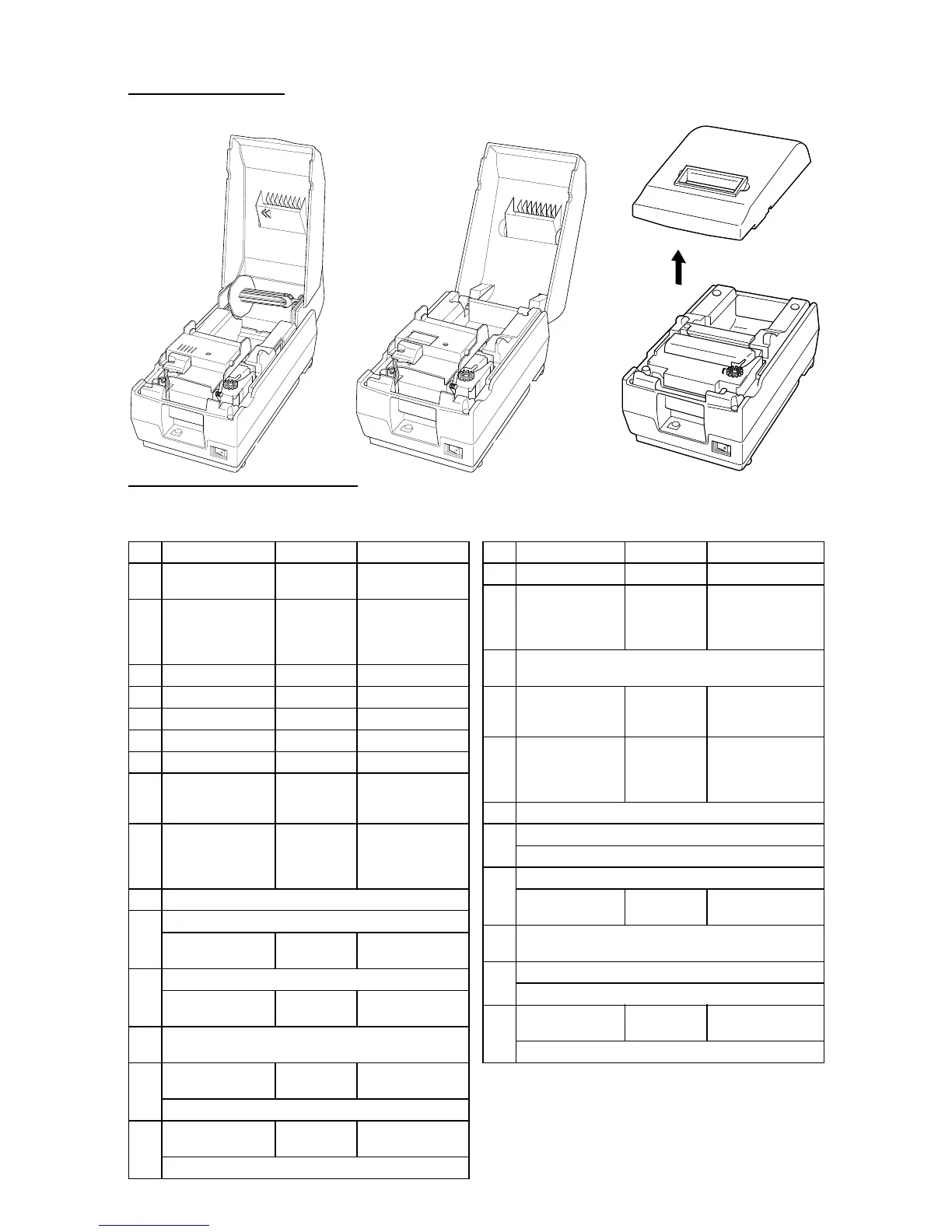

Epson TM-U200 Series

Printer Parts
DIP Switch Tables
Type A
Type B
and
two color
Type D
Single
color
Type D
1
2
3
Serial
SW Function ON OFF
1-1 Data reception
error
Ignored Prints”?”
1-2 Receive buffer
capacity
40 bytes ANK Model:
1000 bytes
Multilingual
model: 512 bytes
1-3 Handshaking XON/XOFF DTR/DSR
1-4 Word length 7 bits 8 bits
1-5 Parity check Yes No
1-6 Parity selection Even Odd
1-7 Baud rate 4800 bps 9600 bps
1-8 Busy condition BUSY when
receive
buffer is full
BUSY when
offline or receive
buffer full
2-1 Print column
selection
7
×
9 font/
9
×
9 font
42/35 40/33
2-2 For internal use. Do not change.
2-3
Type A
For internal use. Do not change.
Types B & D
Pin 6
reset signal
Enabled Disabled
2-4
Type A
Undefind.
Types B & D
Pin 25
reset signal
Enabled Disabled
2-5,
2-6
For internal use. Do not change.
2-7
Type A
Pin 6 reset
signal
Enabled Disabled
Types B & D
For internal use. Do not change
2-8
Type A
Pin 25
reset signal
Enabled Disabled
Types B & D
Undefined.
Parallel
SW Function ON OFF
1-1 Auto line feed Enabled Disabled
1-2 Receive buffer
capacity
40 bytes ANK Model:
1000 bytes
Multilingual
model: 512 bytes
1-3-
1-7
Undefined
1-8 Busy condition BUSY when
receive
buffer is full
BUSY when offline
or receive buffer
full
2-1 Print column
selection
7
×
9 font/
9
×
9 font
42/35 40/33
2-2 Internal use. Do not change.
2-3
Type A
Internal use. Do not change.
Types B & D
Defined.
2-4
Type A
Undefined.
Types B & D
Pin
31 reset signal
Enabled Disabled
2-5,
2-6
For internal use. Do not change.
2-7
Type A
Undefined.
Types B & D
Internal use. Do not change.
2-8
Type A
Pin 31
reset signal
Enabled Disabled
Types B & D
Undefined.
