How to connect an Epson POS printer with Ethernet Interface
http://www.beaglehardware.com/howtoethernet.html[3/4/2011 12:27:20 PM]

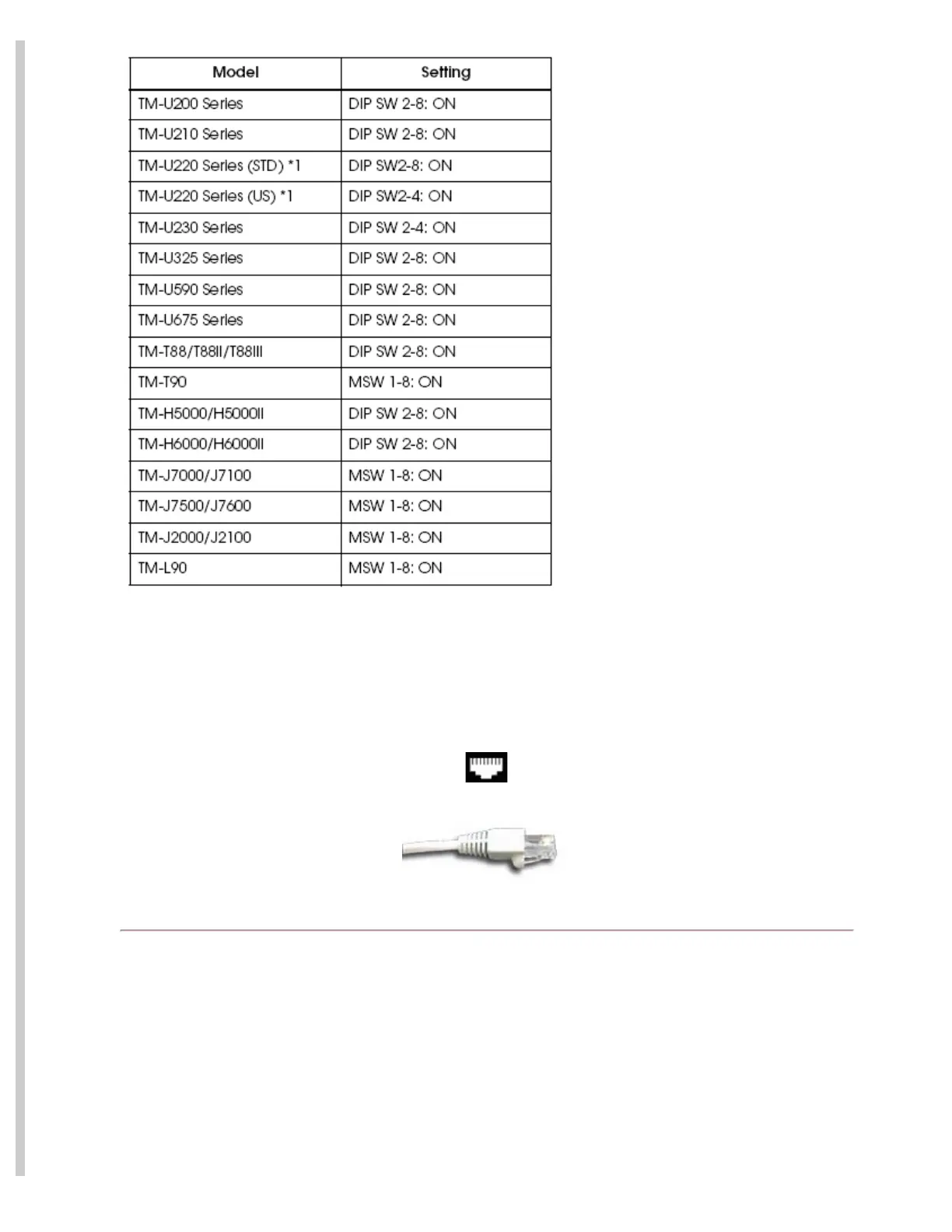

(Key: DIP SW2-8 On: refers to slide switch number 8, on switch bank 2, is turned On)
Cabling
Use a regular LAN patch cord to connect the printer to the LAN.
RJ-45 Female (connector on computer and adapter end)
Ethernet cards use CAT5/6 patch cords
Getting initial printer and Ethernet adapter settings (Type IV)
Get the initial settings of the Ethernet adapter. Run the printer self test (hold down the feed button while turning on the
printer). The printer will print a list of initial settings including interface type and buffer capacity. verify that the interface is
"Ethernet"
A similar test can then be done on the UB-EO2 adapter by inserting a paperclip through the small hole in the adapter for 3
seconds.
