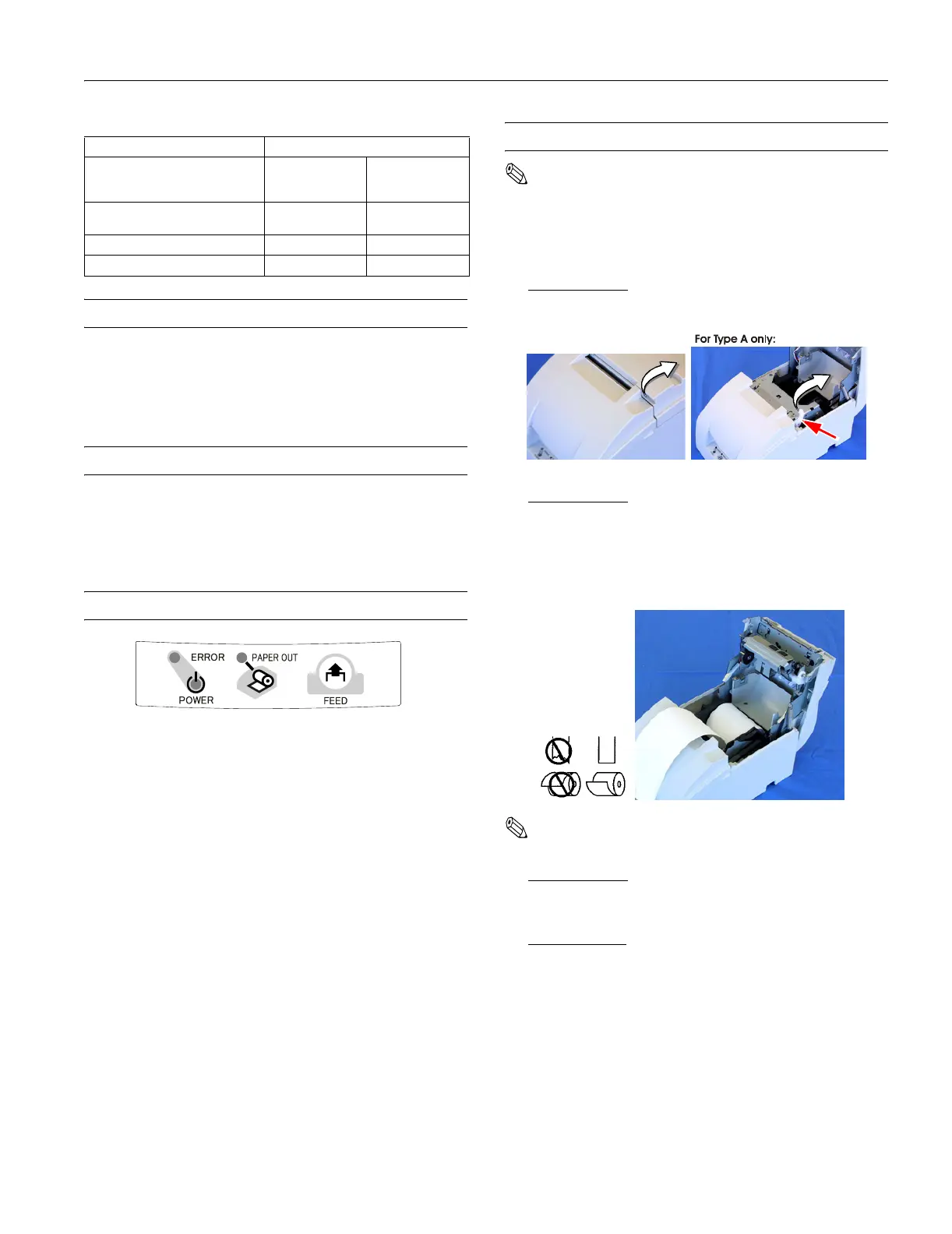

EPSON TM-U220
5/03 EPSON TM-U220 - 3
Serial I/F Communications Settings
Safety
EMI FCC/ICES-003 Class A
Safety standards UL 609501950
CSA C22.2 No. 95060950-00
(Tested using the EPSON AC adaptor C.)
Environmental
Temperature Operating 32 – 122°F
Storage 14 – 122°F
Humidity 10 – 90% (no condensation)
(Storage conditions are without paper and ribbon cassette.)
Control Panel
LEDs
POWER
On when power is on.
ERROR
On when printer is offline. Off when printer is online. Flashes
during an error.
PAPER OUT
On when the printer is out, or nearly out, of paper. Flashes
during the printer self-test
Buttons
FEED
This button feeds roll paper or starts a self-test.
POWER
Turns on printer power.
Loading Paper
Note: Only use roll paper that meets specifications.
Do not use rolls with paper ends glued to the core.
Be careful not to touch the manual cutter. It is sharp.
1. Turn on the printer.
2. Using the tab shown below, open the paper roll cover.
3. For Type A only
, open the unit using the unit open lever
shown at the right below.
4. Remove the used paper core, if there is one.
For Type A only
, remove the paper take-up spool, and then
open the unit and remove any used paper core.
5. Using scissors, cut the leading edge of the paper straight, as
shown at the top left in the illustration below.
6. Insert the paper roll as shown on the right below.
Note: If you are using 2-ply paper, be sure that the top and bottom
layers are aligned at the paper exit.
7. For Type A only, pull out enough paper to reach the
bottom front of the printer; then close the unit as shown at
the left below.
8. For Type A only
, insert the end of the bottom layer of paper
(the journal paper) into the paper take-up spool, and insert
the spool back into the printer. Be sure the paper is aligned
with the spool’s flange.
Function Value
Baud rate 1200 bps
4800 bps
19200 bps
2400 bps
9600 bps
—
Parity None
Even
Odd
—
Handshaking DSR/DTR XON/XOFF
Data length 7 bits 8 bits
To Next Page
