1 Front adjustable foot
2 Mounting bracket holes
3 Rear adjustable feet
4 Security cable attachment point
Parent topic: Projector Part Locations
Related tasks
Installing a Security Cable

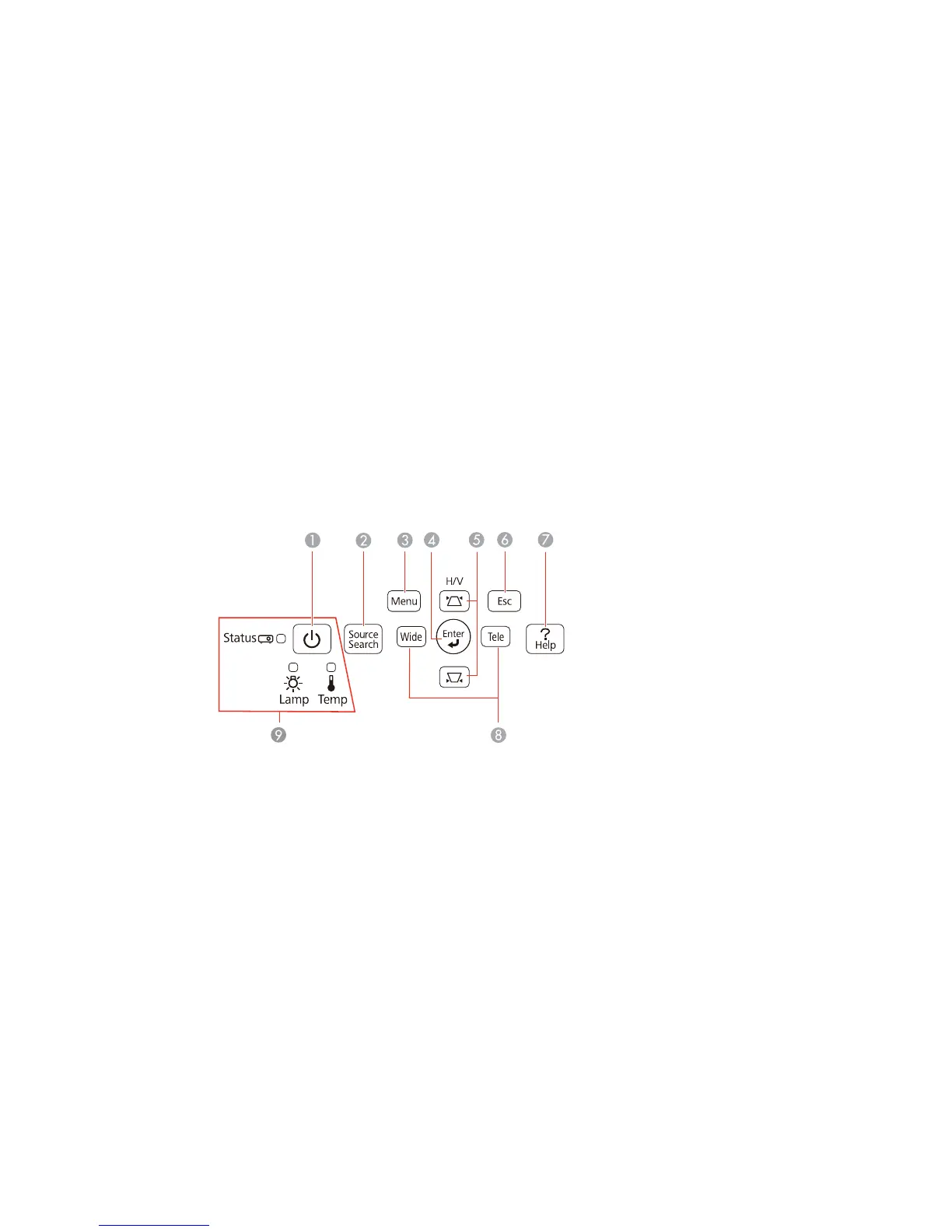

Projector Parts - Control Panel
EX3220/VS230
1 Power button/light
2 Source Search button (searches for connected sources)
3 Menu button (accesses projector menu system)
4 Enter button (selects options)
5 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
6 Esc button (cancels/exits functions)
