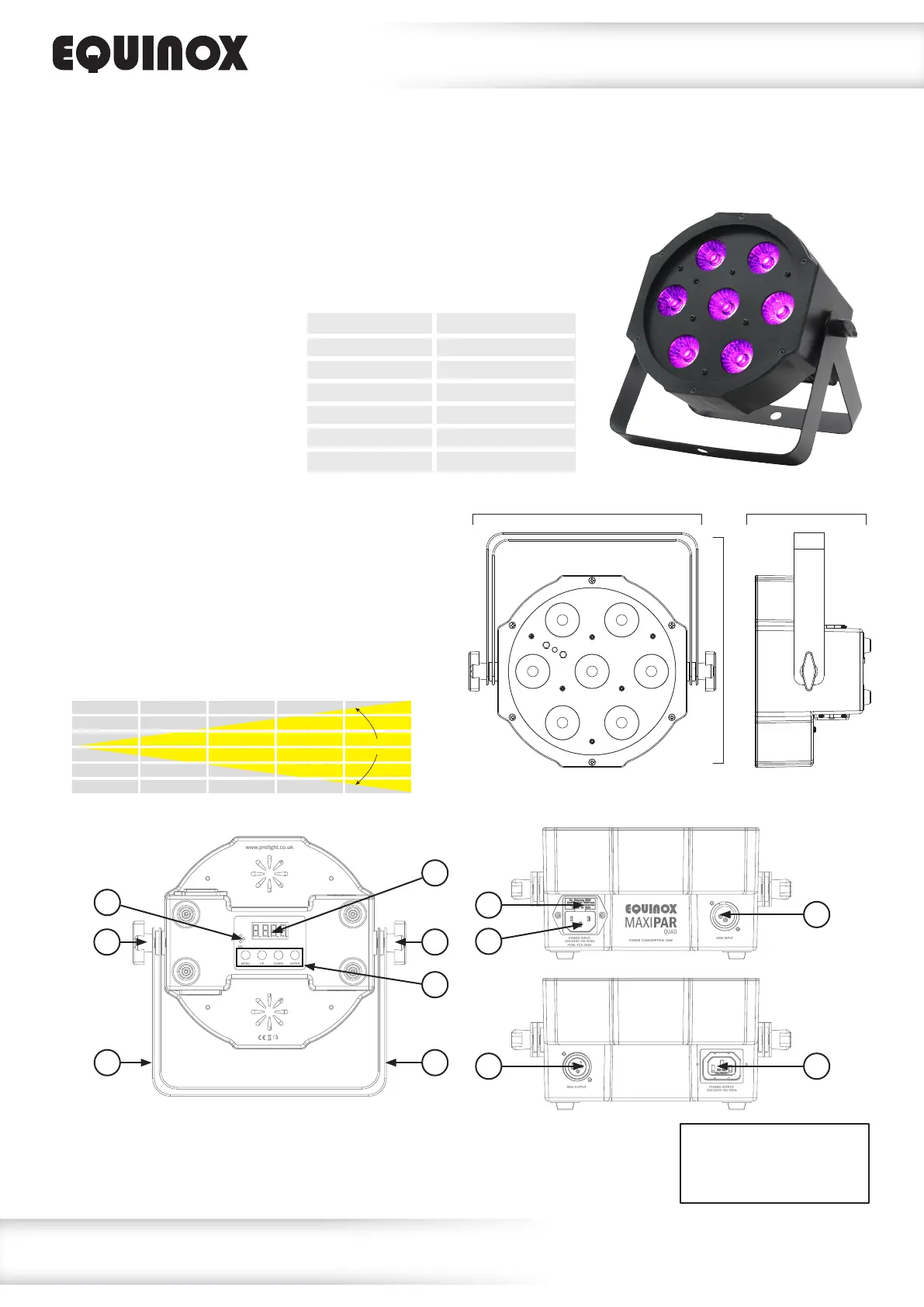

Product overview & technical specications
This compact, slim prole par is designed for uplighting as well as stage lighting, and will bring deep,
rich colours to any event or venue. It features 7 x 5W quad-colour RGBW LEDs which offer smooth colour mixing.
Operational modes including DMX, auto, sound active and master/slave modes.
• 7 x 5W quad-colour LEDs (RGBW)
• Beam angle: 25°
• 1,554 Lux @ 2m (full on)
• DMX channels: 2/3/3/4
or 10 selectable
• Auto, sound active and
master/slave modes
• 0-100% dimming
and variable strobe
• 4 push button menu
with LED display
• Bracket allows for multiple rigging
or oor standing applications
• Rubber feet allow the panel to
sit at on the oor for uplighting
• Side entry XLR and
power connections
• IEC power input/output
• 3-Pin XLR input/output
• Fan cooled
• Supplied with IR remote
MaxiPar Quad
Specications
Power consumption 35W
Power supply 100~240V, 50/60Hz
Fuse F1A 250V
Dimensions 215 x 225 x 110mm
Weight 1.1kg
Order code EQLED117
215mm
225mm 110mm
0m 1m 2m 3m 4m 5m
25° - Lux
FULL ON
R
G
B
W
6216
1888
2448
656
3400
1554
472
612
164
850
690
209
272
72.8
377
25°
388
118
153
41
212
248
75.5
97.9
26.2
136
QUAD
MAXIPAR
DOWNUP
MIC
MENU ENTER
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
POWER INPUT:
100-240V~50/60Hz
FUSE: F1A 250V
DMX INPUT
POWER CONSUMPTION: 35W
DOWNUP
MIC
MENU ENTER DOWNUP
MIC
MENU ENTER
06
0907
08
10
QUAD
MAXIPAR
DOWNUP
MIC
MENU ENTER
www.prolight.co.uk
POWER OUTPUT:
100-240V~50/60Hz
DMX OUTPUT
POWER INPUT:
100-240V~50/60Hz
FUSE: F1A 250V
DMX INPUT
POWER CONSUMPTION: 35W
DOWNUP
MIC
MENU ENTER DOWNUP
MIC
MENU ENTER
02 02
01 01
04
03
05
01 - Bracket
02 - Bracket knobs
03 - LED display
04 - Function buttons
05 - Microphone
06 - DMX input socket
07 - DMX output socket
08 - IEC power input socket
09 - IEC power output socket
10 - Fuse F1A 250V
In the box: 1 x xture,
1 x power cable &
1 x user manual
