ERA E3000 - Outdoor Camera Connection Diagrams

Diagram
-6-
Note: The outdoor camera can be either battery powered or mains powered by
a compatible AC Adapter (not supplied). Do not use both batteries and an AC
Adapter at the same time. The call button backlight is only available when the
outdoor camera is mains powered.

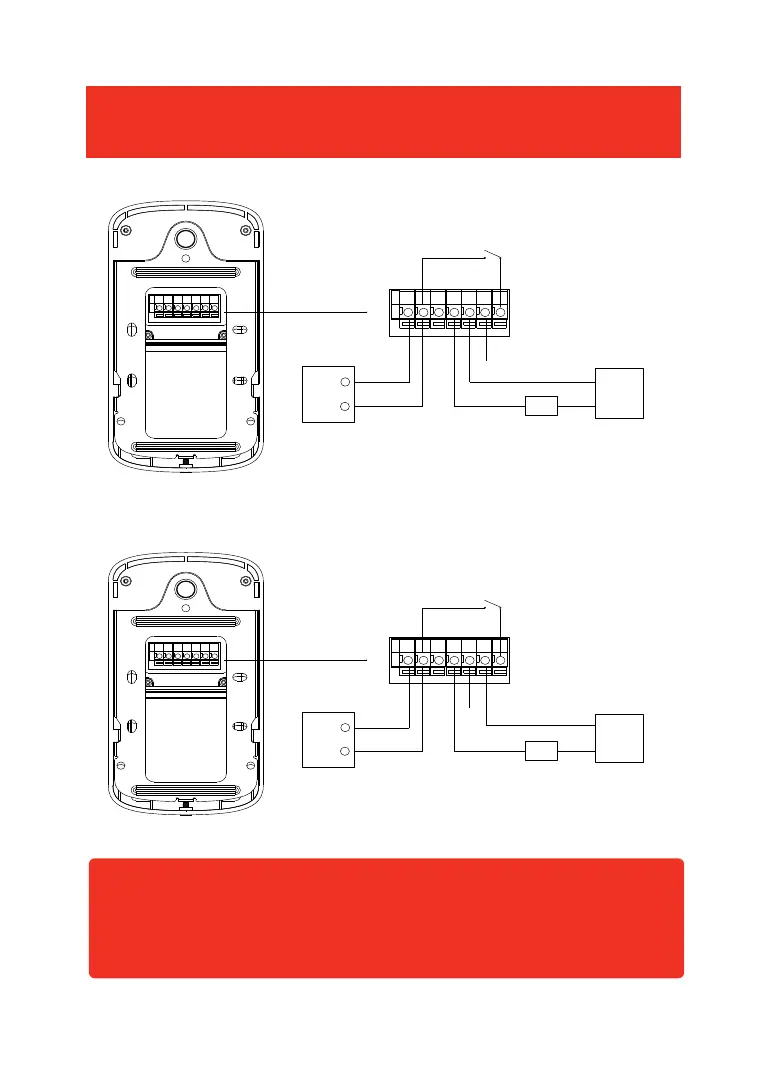

Connecting the Outdoor Camera to a Power Supply and/or
Unlock Module (optional accessories)
Connection Mode 1
Normally 'Open'
DC Power Supply
EX-BUT
DC9-12V
NO COM NC
GND
DC9-12V
Lock
Connection Mode 2
Normally 'Closed'
GND
Normally
open lock
+
+
-
-
DC power
for Lock
Maximum relay output
current 1A
EX-BUT
Lock
Normally
closed lock
+
--
+
Outdoor Camera
Outdoor Camera
DC power
for Lock
DC9-12V
NO COM NC GND
GND
DC9-12V
DC Power Supply
Maximum relay output
current 1A
