ERBAUER 254MM (10”) DOUBLE BEVEL SLIDING MITRE SAW

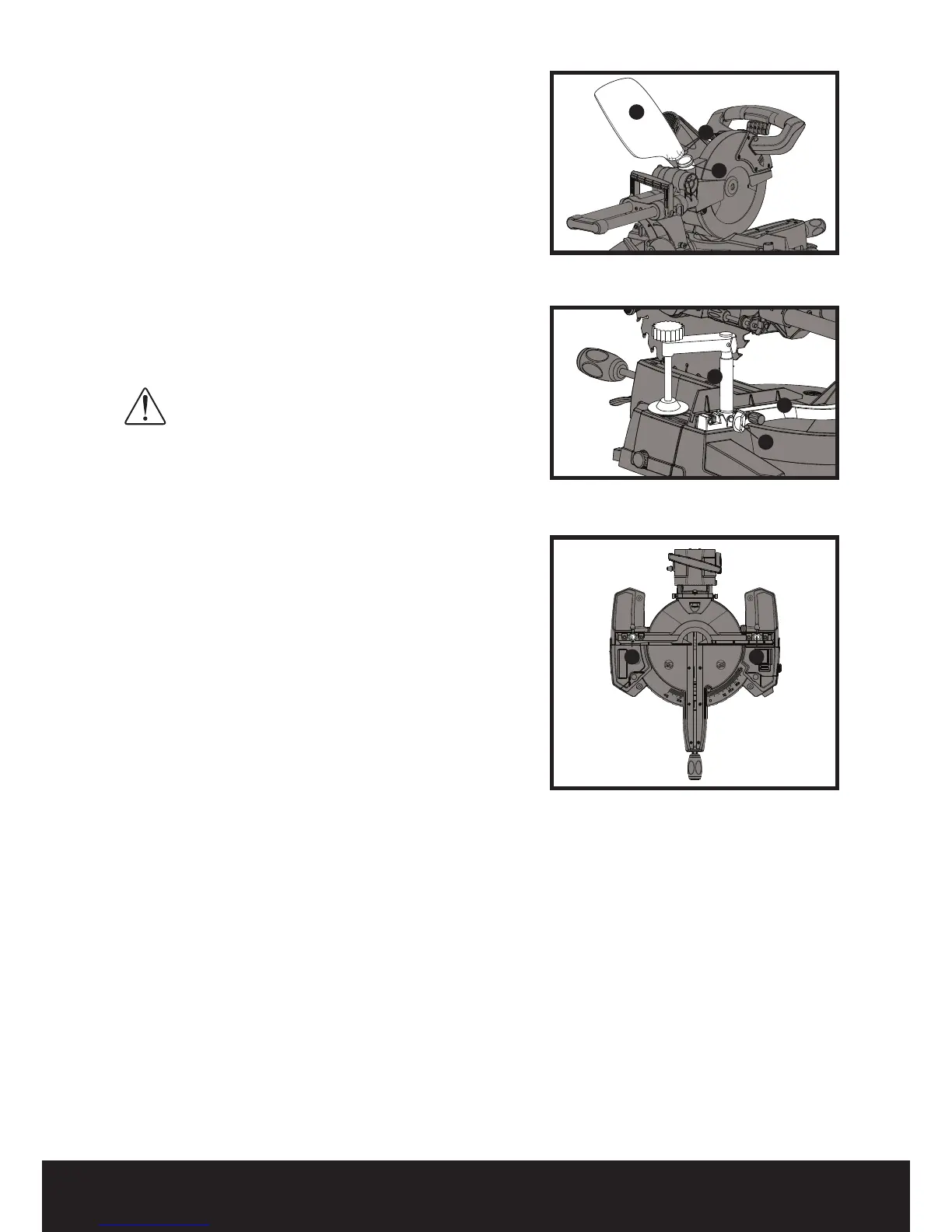

4. Installing the dust bag
1) Squeeze the metal collar wings (2) of the dust
bag (1).
2) Place the dust bag neck opening around the
exhaust port (3), and release the metal collar
wings. (See g. 6)
5. Installing the hold-down clamp
1) Loosen the lock knob (1) from the rear side of
the saw base (2). (See g. 7)
2) Place the hold-down clamp assembly (3) in one
of the mounting holes (4). (See g. 8).
3) Tighten the lock knob (1). (See g. 7)
Warning: When using stop block on
the right side, hold-down clamp must
also be in right side. Using hold-down clamp
on the left side during this operation can cause
kickback and serious injury to the operator.
Fig 6
Fig 7
Fig 8
1
3
2
4
3
2
1
4
