Erbauer ERB239MSW - Basic Saw Operations; Sliding carriage system

ERBAUER 254MM (10”) DOUBLE BEVEL SLIDING MITRE SAW
• Squeeze trigger switch to start saw.
• Lower blade into workpiece with a rm
downward motion.
Finishing a cut:
• Hold the cutting arm in the down position.
• Release trigger switch and wait for all moving
parts to stop before moving your hands and
raising the cutting arm.
Before releasing jammed material:
• Release trigger switch.
• Wait for all moving parts to stop.
• Unplug the mitre saw.
4. Basic saw operations
Warning: For your convenience, your
saw has a blade brake. The brake is not
a safety device. Never rely on it to replace the
proper use of the guard on your saw. If the blade
doesn’t stop within approximately 8 seconds, wait
for the blade to stop, unplug the saw and contact
customer service.
To turn saw on
Push down the lock lever (1) and squeeze the
trigger switch (2) to turn the mitre saw ON.
Release the trigger switch to turn the saw OFF.
(See g. 28)
5. Sliding carriage system
1) For chop cutting operations on small
workpieces, slide the cutting head assembly
completely toward the rear of the unit and tighten
the carriage lock knob (1).
2) To cut wide boards up to 310 mm, the carriage
lock knob must be loosened to allow the cutting
head to slide freely. (See g. 29)
Before leaving the saw
• Never leave tool running unattended. Turn power
OFF. Wait for all moving parts to stop.
• Make workshop childproof. Lock the shop.
Disconnect master switches. Store tool away from
children and other unqualied users.

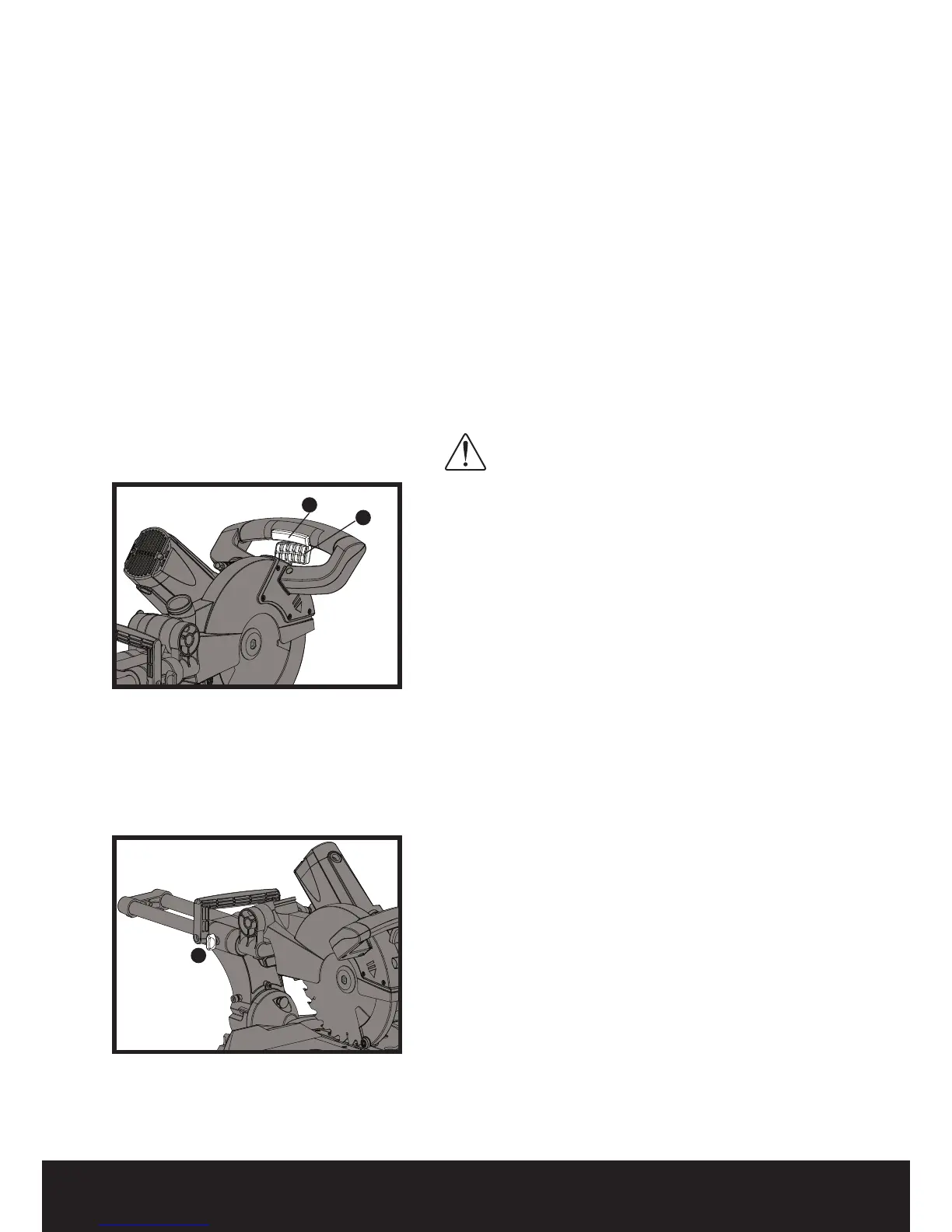

Fig 28
Fig 29
1
1
2
