Erbauer ERB561SRG - CONNECTING TO POWER AND OPERATION CONTROLS; Power Supply Connection; On;Off Switch Operation; Fluid Adjustment Control

700W HVLP SPRAY GUN ERBAUER
1. Make sure the on/off switch (12) is in its off
position (upper position) (Fig. 4).
2. Connect the plug with a suitable socket.
CONNECT TO POWER SUPPLY

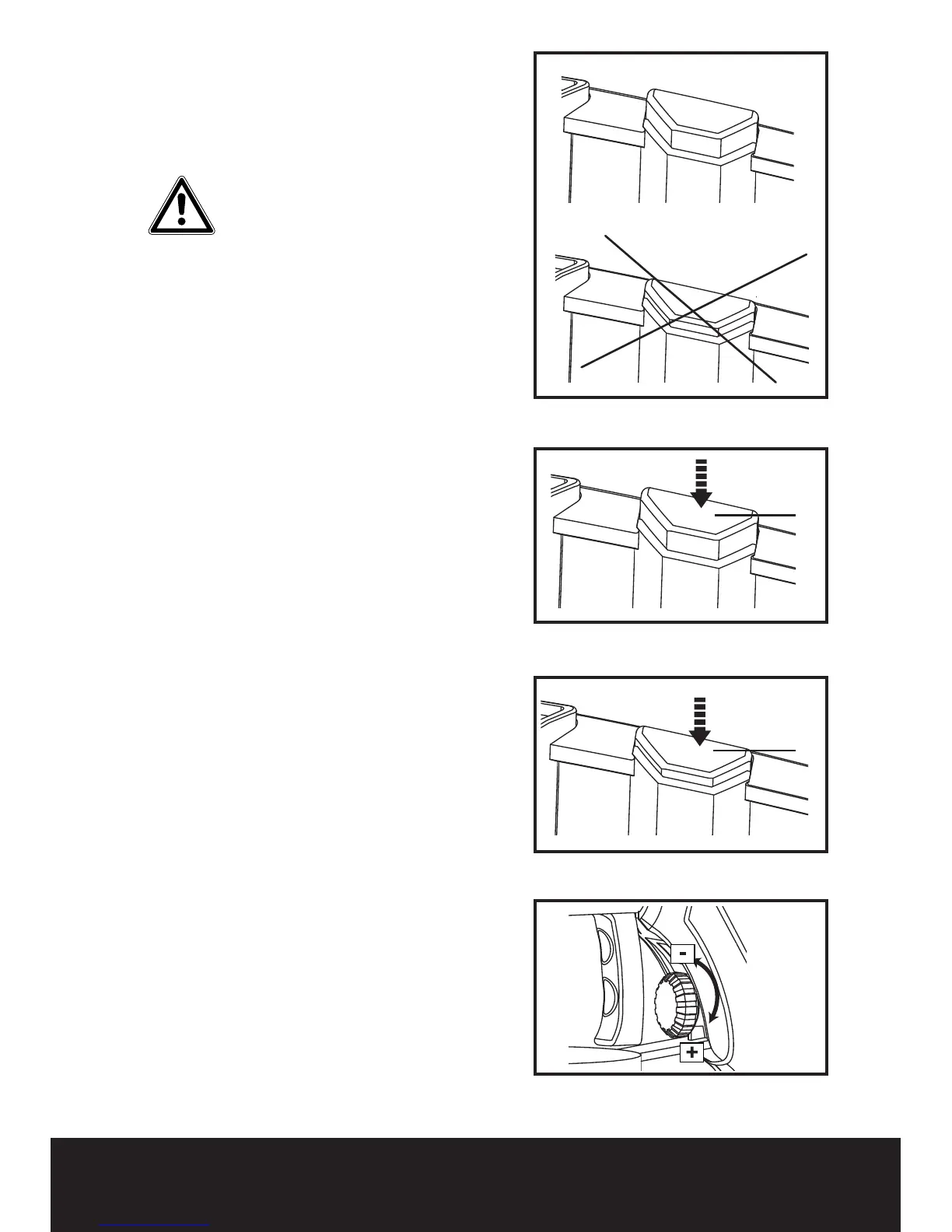

Fig. 4
WARNING! Check the voltage!
The voltage must comply with
the information on the rating
label!
3. Your product is now ready to be used.
ON/OFF SWITCH
1. Press the on/off switch (12) to switch the
product on (Fig. 5).
2. Press the on/off switch (12) again to switch
the product off (Fig. 6).
Fig. 5
Fig. 6
12
12
FLUID ADJUSTMENT
Turn the fluid adjustment knob (16)
anticlockwise to decrease the volume of the
fluid output and clockwise to increase the
volume of the fluid output (Fig. 7).
Fig. 7
