Art.070 User Guide EN 12
2.1.3 SLIDER – COUNTERBENDING DIE UNIT

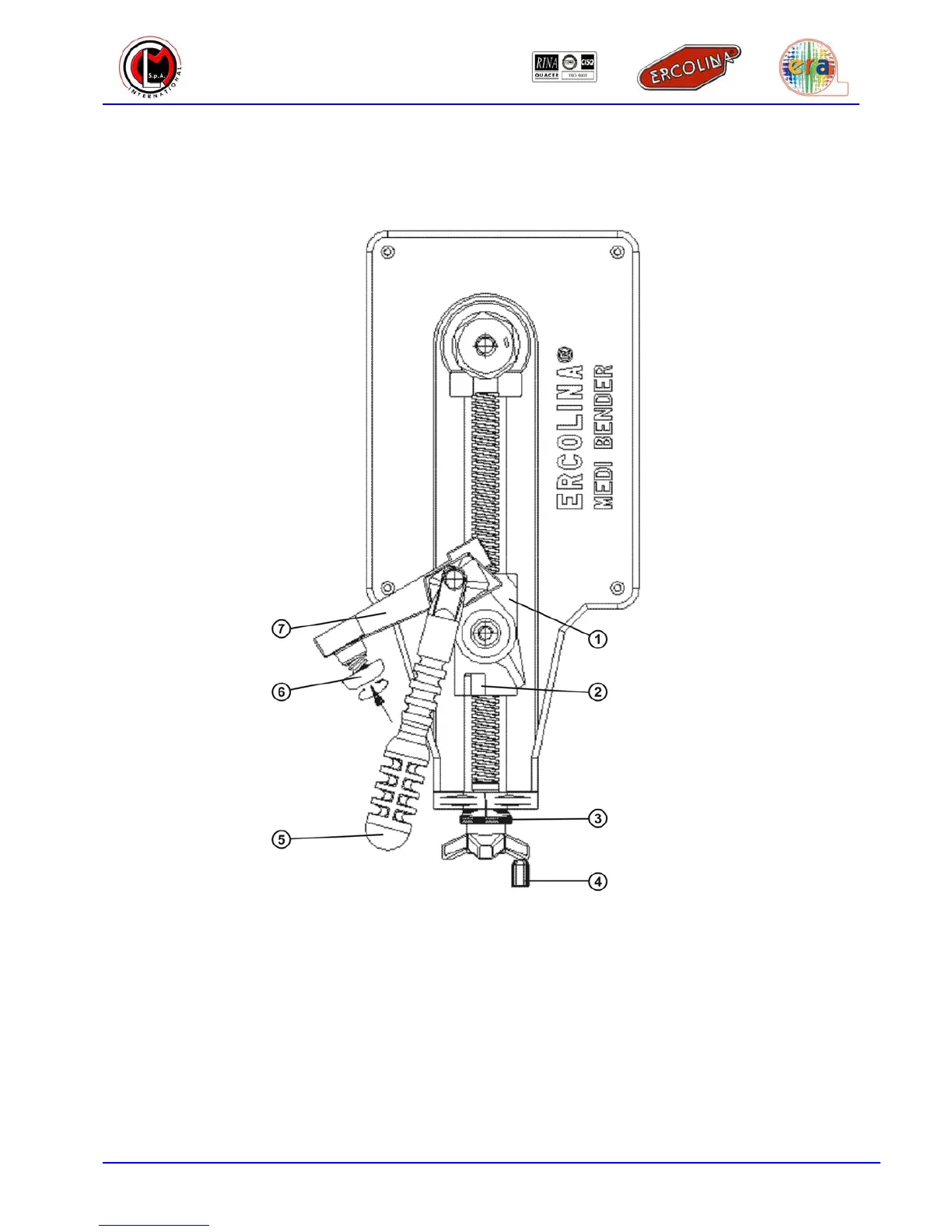

Slider-counterbending die unit elements are indicated in the following figure:
1
Swivelling bracket
2
Stop
3
Reset ring
4
Knob
5
Lever
6
Counterbending die tightening screw
7
Counterbending die support
