Art.070 User Guide EN 21

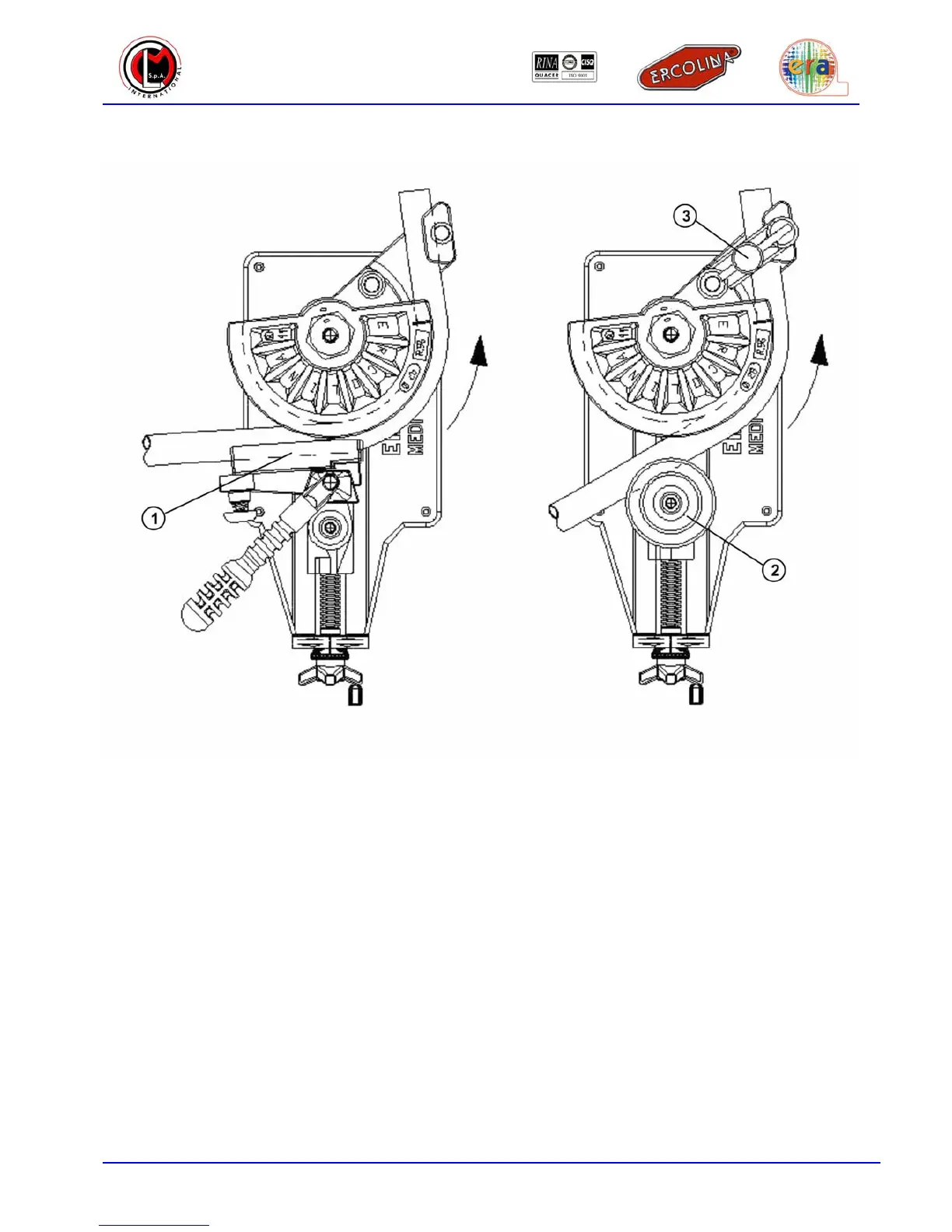

3.5 EXAMPLES OF CORRECT BENDING WITH THE MEDI BENDER
1
Counterbending die
2
Roll
3
Reinforcement bracket
Note: Only for the roll use!
Rotate the former approximately 30°. Insert the tube. Place the roll on the tube without forcing and
then bend.
