Baud Rate Radio [2,400/3,600/4,800] (bps) : To select the Radio link data speed. Choose the 4,800
bps only for high SINAD networks, e.g. with aerials in optical view and adequately high on the earth
surface.
Parity [N,E,O] : Permits the Parity Bit utilisation in Odd (O) mode or in Even (E) mode. If N (No
parity) is selected the message frame must contain only 8 bits.
Digital IN Repetition Time [1..60] (minutes) : To set the repetition time interval between two
successive refreshes of the Digital input status. The value 0 inhibit the periodic refresh but, in all
cases, this status is sent at every change of the digital input and/or at every data transmission with
the exception of the Broadcasting Mode.

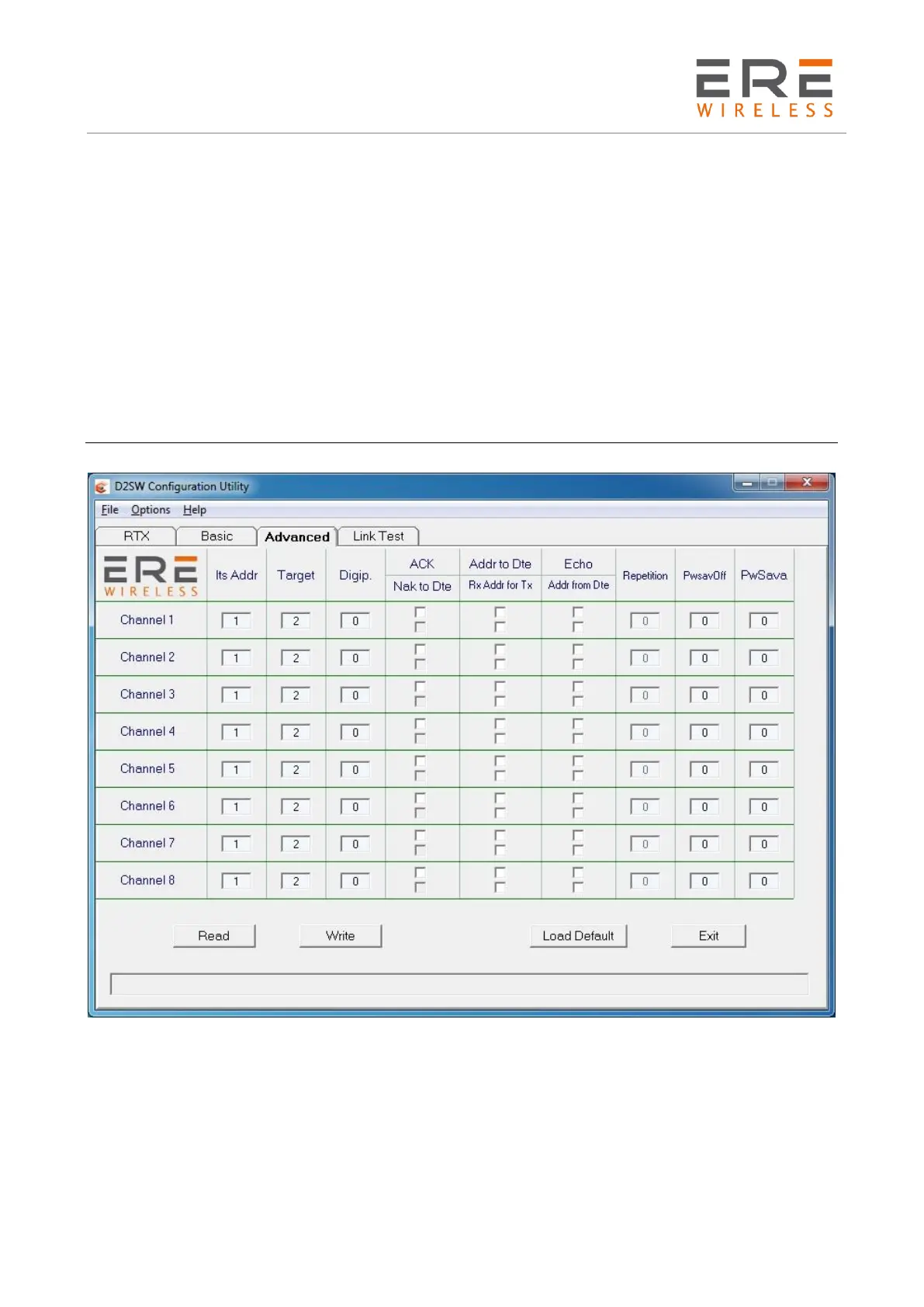

Advanced configuration
Its Addr [1..255] : It is the address of the unit. In a point - multipoint network the Master unit
must have Its Address = 1.
Target [1..255] : The address of the destination radiomodem. In the Broadcasting Mode the
inserted value is not considered while in the Address from DTE Mode it is furnished by the DTE. A
valid value must be inserted in this field independently from the utilisation mode.
Digip. [0..255] : The address of the unit used as repeater. If a network don't contain a repeater, the
value in this field must be set to 0.
