4. Step
First remove the four screws around the
drive shaft by using a 4mm Allen wrench.
To do so, you have to move the
ChainLance to turn the gear wheel until
you can see and open the individual
screws.
5. Step
Remove the fifth screw now and hold
the control unit simultaneously.
6. Step
Pull off the control unit. Make sure that the
small fitting spring on the drive shaft does
not get lost.
7. Step
The installation of the control unit
is done in the reversed order of the
disassembling.
- 65 -

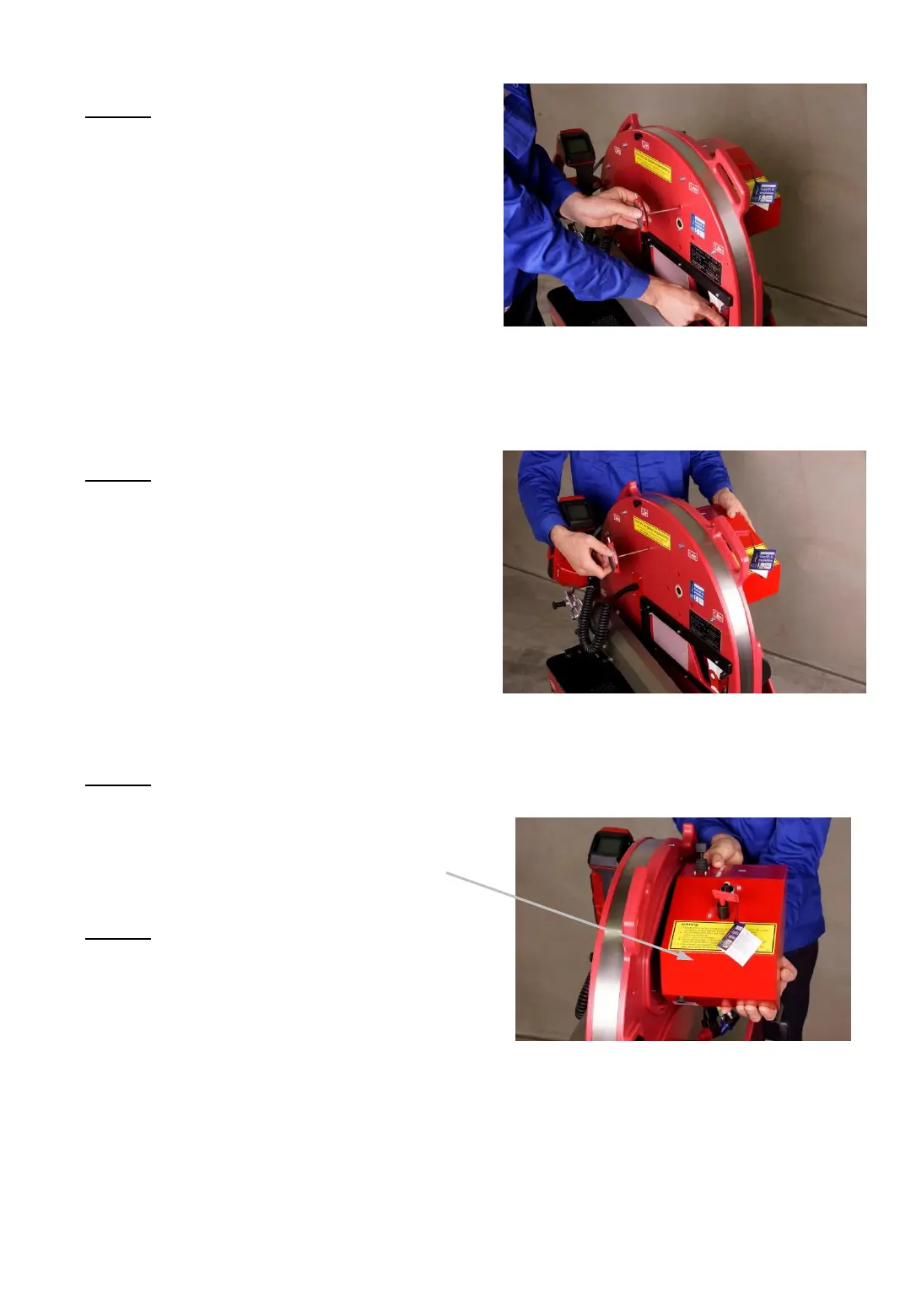

Fig. 99
Fig. 98
Fig. 97
