INSTALLATION INSTRUCTION
Faktaansvarig - Subject responsible
The battery cabinet provides the additional
connections:
• H and I for the alarm cables.

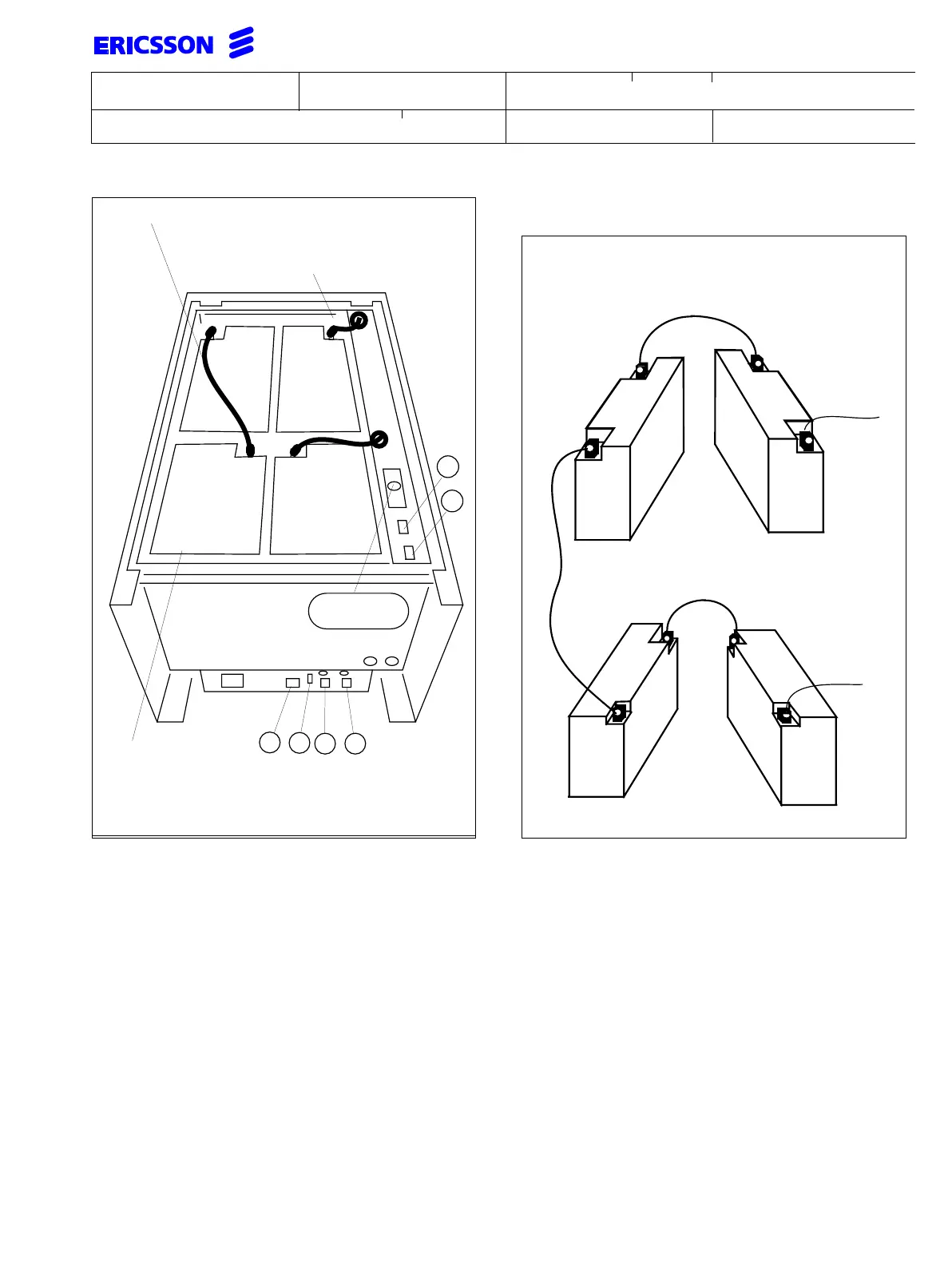

Make the connections in the battery cabinet according
to the wiring diagram below, using the supplied cables.
WARNING: TAKE CARE WHEN USING
METAL NON-INSULATED TOOLS AS THE
BATTERIES DELIVER HIGH CURRENTS IN
CASE OF SHORT CIRCUIT.
This unit is equipped with a circuit breaker
disconnecting the batteries from the power supply unit.
A
B
CD
H
I
battery interconnection cables
battery cabinet BKB 201 002
CIRCUIT
BREAKER
(-) battery terminal
cable (grey)
(+) battery terminal
cable (red)
Figure 3
+
+
-
-
TRE 990 119/0200
to the BML unit
to the BML unit
-
-
-
+
-
+
+
+
