INSTALLATION INSTRUCTIONS
7.3 Connection to the extension line
The line cord shall be connected in one end to the wall box according to fig 7-1 and the other end
to the connector in the bottom of the set marked LINE.

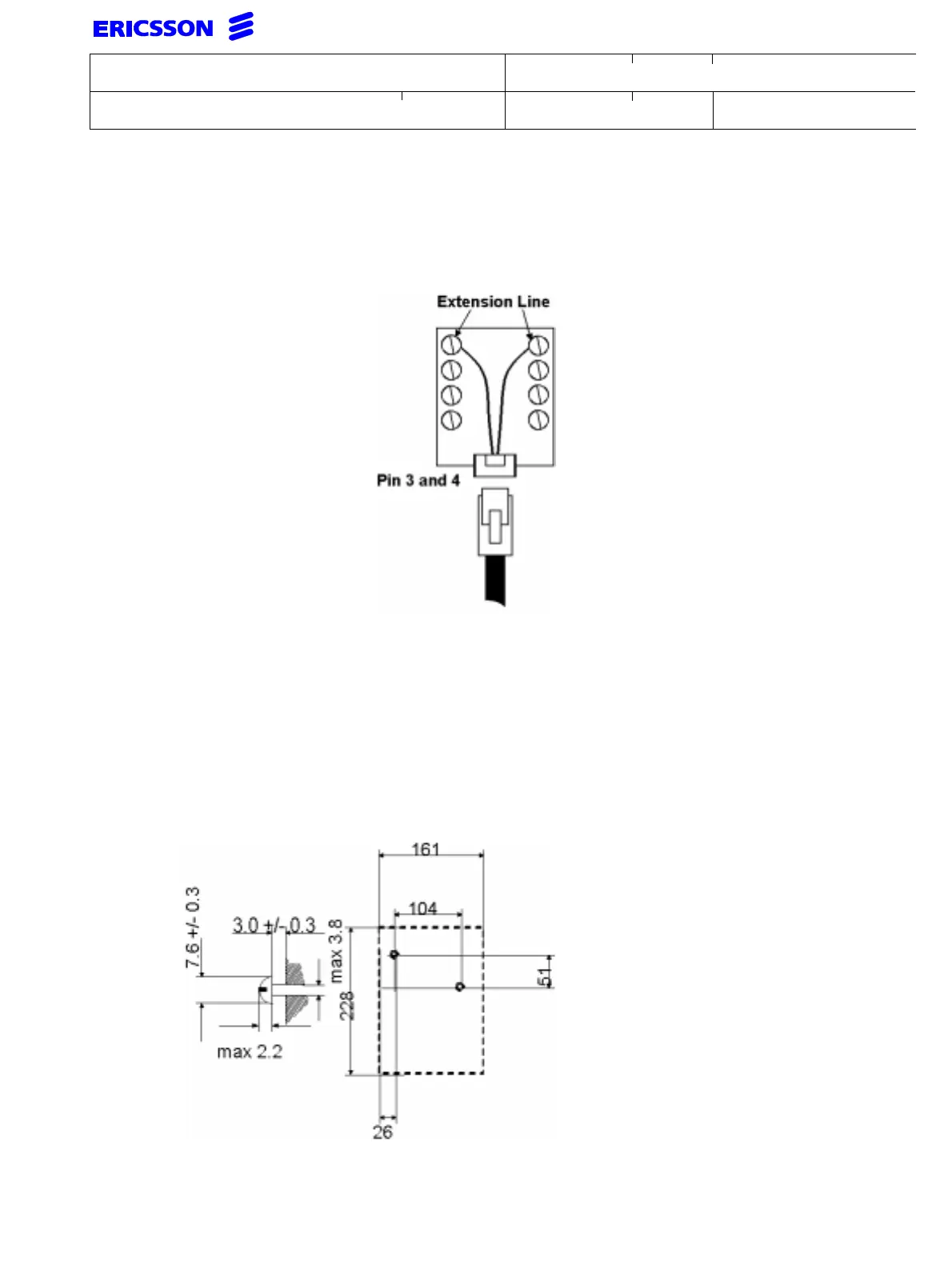

Figure: 7-1. Connection of extension line
7.4 Wall mounting
Mount the two screws on the wall according to fig 7-2.
Snap off and turn the hook around according to fig 7-3.
If the adjustable foot consoles are mounted they must be removed.
Mount the telephone on the screws.
Figure: 7-2. (All distances in mm)
Positions for screws DBC 210 01
