# VSH400PLC090909

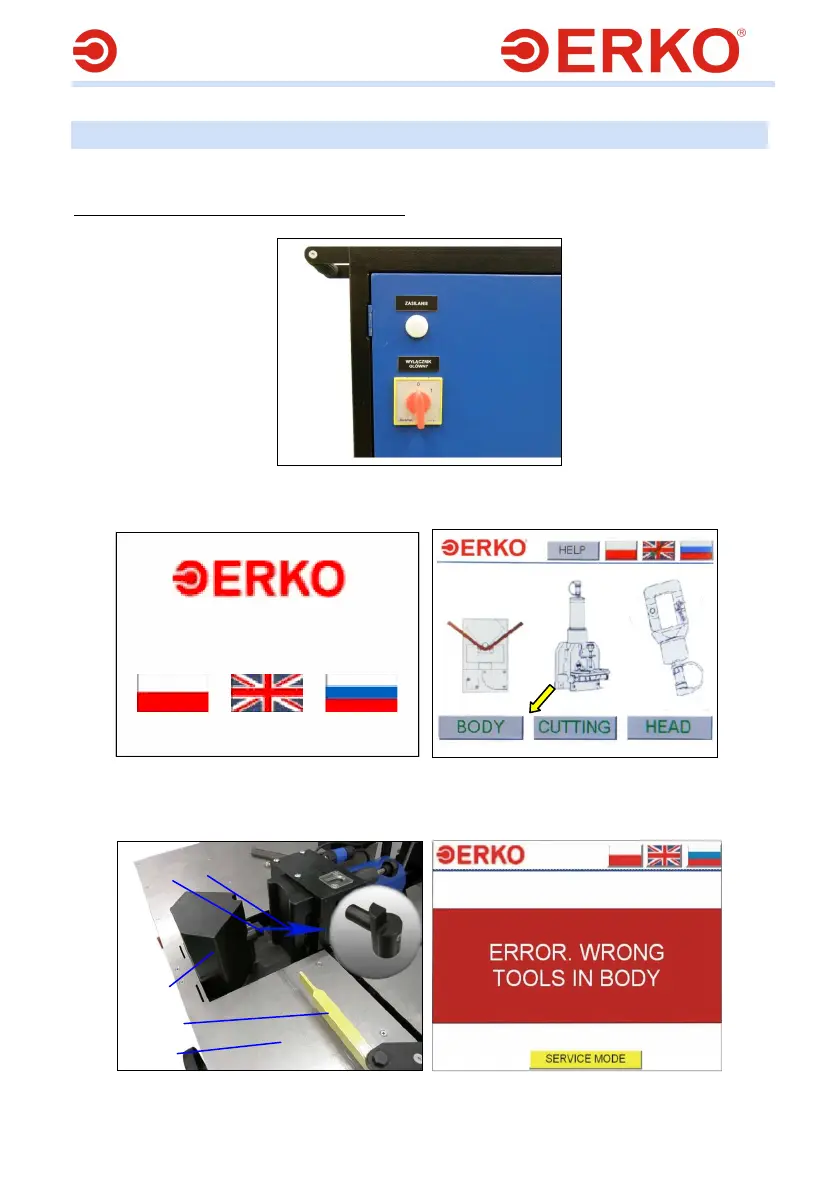

7. ZERO ADJUSTING OF THE MEASUREMENT SYSTEM
Only for the software version SH400 PLC3-V2
Length scaling of the cut bus (counter G)
1. Switch on the power supply of the stand
Fig.23
2. After selecting the language version on the control panel [Fig. 24] select the
option KORPUS (body) [Fig. 25]
Fig.24 Fig.25
3. Put the locating insert SH410PLC (2) and the offset insert (3) [Fig.4] into the
body (1); the screen will display a message about the instrumentation error
[Fig.27])
Fig.26 Fig.27
3
2
1
4
5
