2.4.1 Power Connector
It is important that only an approved power adapter is used.
2.4.2 Cellular SIM card slots
There are three SIM card options on the HERA604 router:
 Internal MFF AnyNet CHIP SIM
 SIM Slot 1, this fits a 2FF plastic SIM
 SIM Slot 2, this fits a 2FF plastic SIM
2.4.3 Service connection

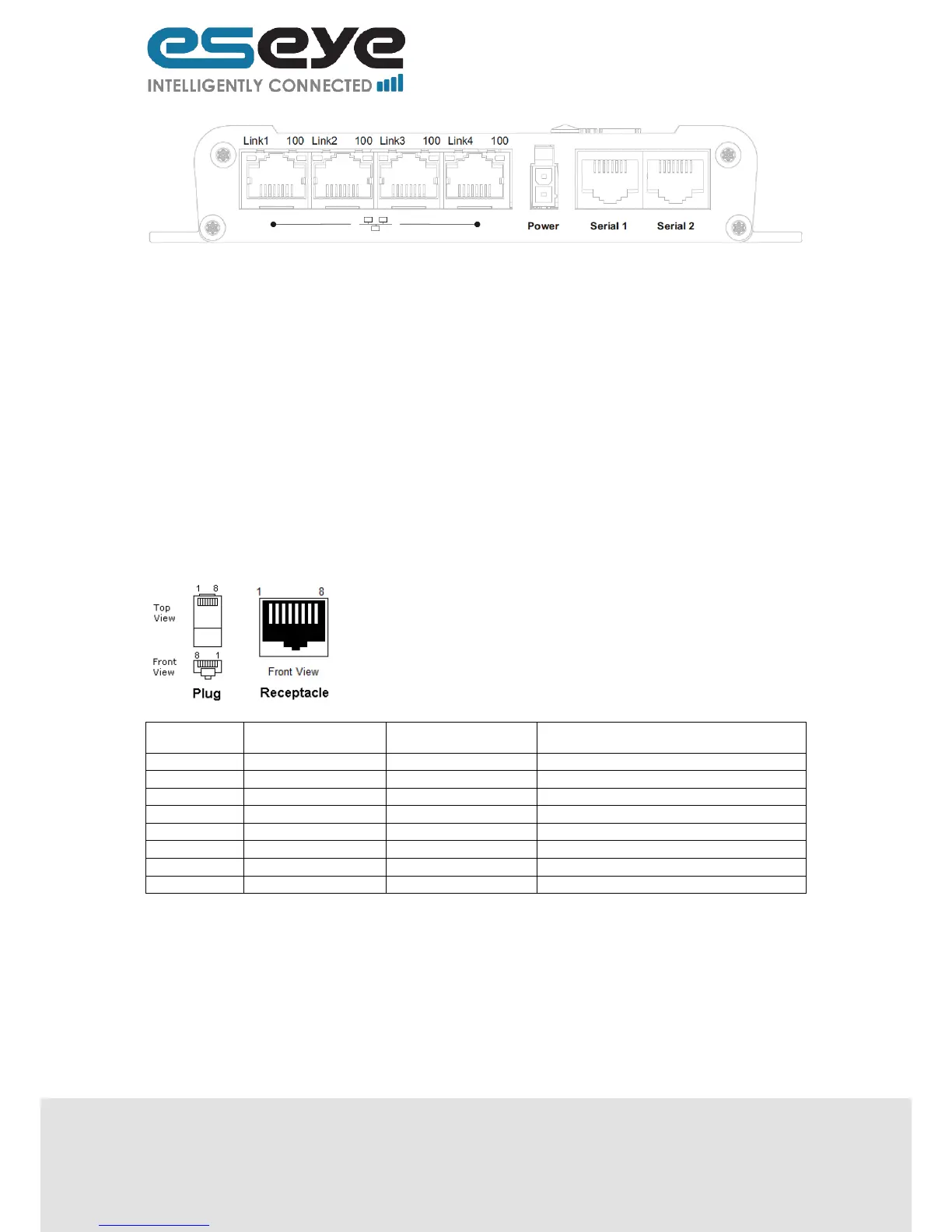

On all router products there is a FCC-68 8p8c socket (V.28) used for service and diagnostics. The
connector is specific to the product and it can be obtained from your supplier. It is recommended that
only an approved connector adapter is used.
The Serial Console port supports the following signals:
Pin #
Direction
RS232 DCE
Description
1
N/C
2
N/C
3
OUT
RxD
Receive Data
4
GND
GND
Ground
5
N/C
6
IN
TxD
Transmit Data
7
N/C
8
N/C
This port has the following specifications:
