ESAB A6 User Manual

- 14 -
hfa7i1ea
3.4 Connections
3.4.1 General
 PEK is to be connected by a qualified person.
See instruction manual 0460 948 xxx, 0460 949 xxx, 0459 839 036.
 For the connection of A6 GMH, see instruction manual 0460 671 xxx.
 For the connection of A6 PAV, see instruction manual 0460 670 xxx.

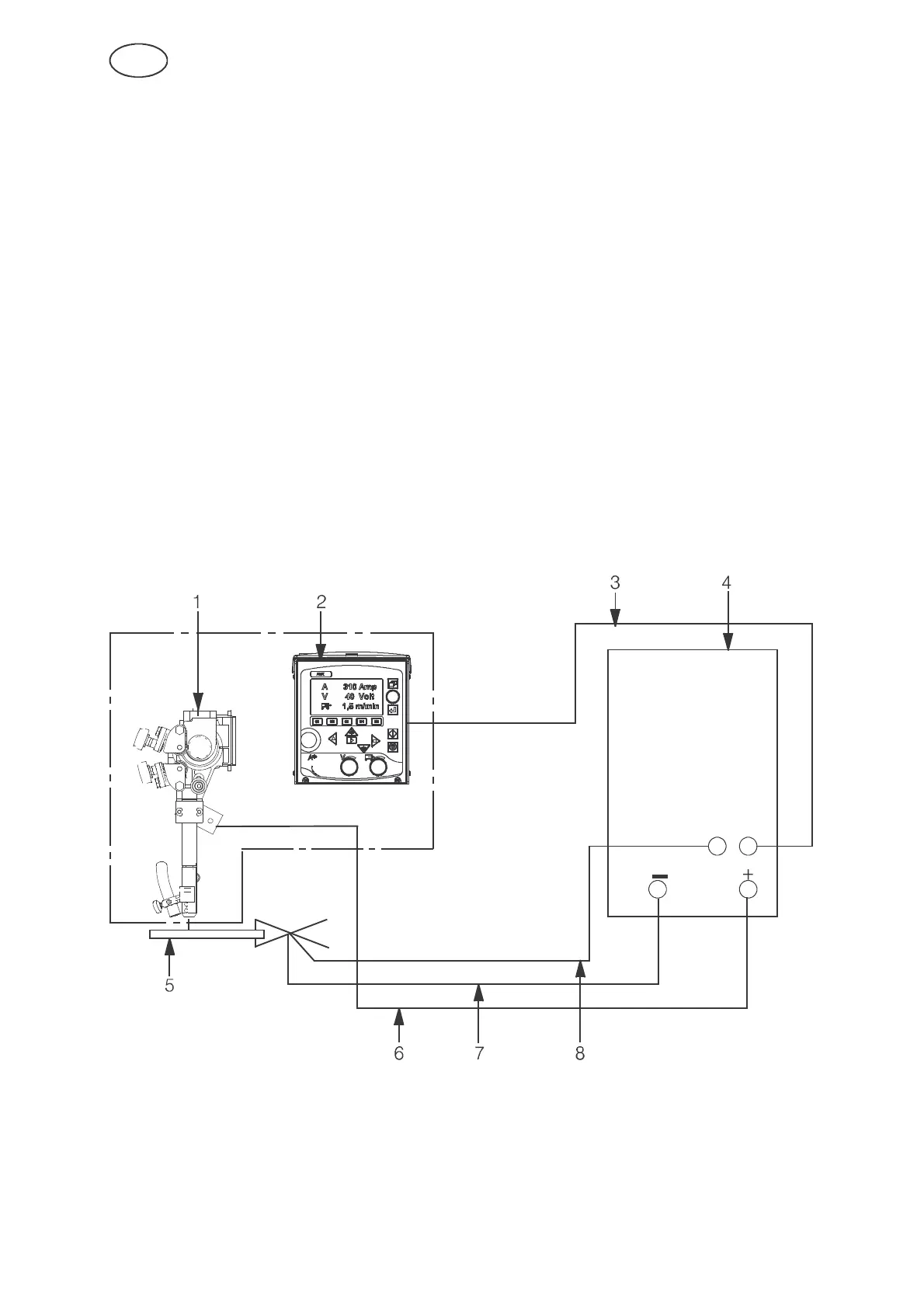

3.4.2 Welding Head A6SF F1 / A6SF F1 Twin
1. Connect the control cable (3) between the welding power source (4) and the (2).
2. Connect the return cable (7) between the welding power source (4) and the work
piece (5).
3. Connect the welding cable (6) between the welding power source (4) and the
welding head (1).
4. Connect the measuring cable (8) between the welding power source (4) and the
work piece (5).
GB
