5.1 Connections

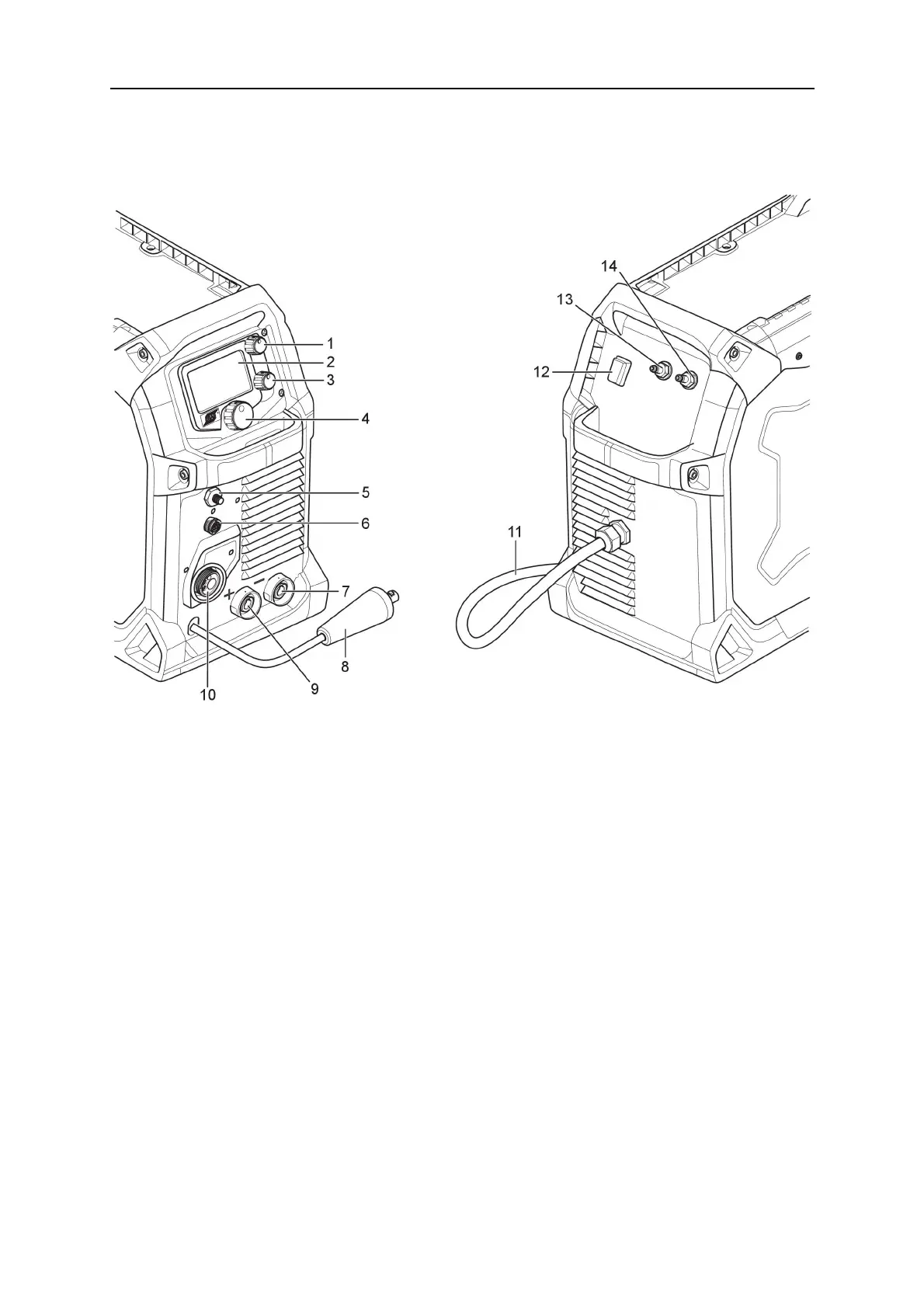

Front and rear:
1. Knob for current or wire feed speed
selection
8. Polarity changeover cable
2. Display 9. Positive output [+]
3. Knob for voltage selection 10. Euro torch connection
4. Main knob for menu navigation 11. Mains cable
5. Gas outlet, optional: TIG torch 12. Mains supply switch ON/OFF
6. Torch/Remote/Spool Gun connection 13. Gas inlet, optional: TIG torch
7. Negative output [-] 14. Gas inlet for MIG/MAG/Spool Gun
