5 INSTALLATION
The installatio n must be executed by a p rofessional.
WARNING!
This product is intended for industrial use. In a domestic environment this product may cause radio
interference. It is the user’ s responsibility to take adequate precautions.
LTR 160 LTR 200
Mains voltage 230 V ¦ 10 %, 1--phase 400 V ¦10 %, 3--phase
Mains frequency 50--60 Hz 50--60 Hz
Fuse, slow rupture 16 A*) 10 A
Mains cable, cross section 3x2.5 mm
2
4X1,5 mm
2
Welding cable, cross section 25 mm
2
25 mm
2
*) When welding with max 100 A a 10 A slow rupture fuse is sufficient.
LTR 160/200 are equipped with mains voltage compensation, which means that a
¦10 % variation in the mains voltage only results in a ¦0,2 % variation in the
welding current.
To reduce the voltage drop when using a long cable it can be advisable to select a
heavier cable cross section.
1. Place the equipment in a suitable place and make sure the r ectifier is not cov-
ered or set--up so that cooling is prevented.
2. Make sure the machine is connected to the correct mains voltage.
Earth according to applicable directives.
3. Connect the shielding gas.
4. Connect the T IG torch and the return cable or the MMA welding cables.
The machine is now ready for welding.

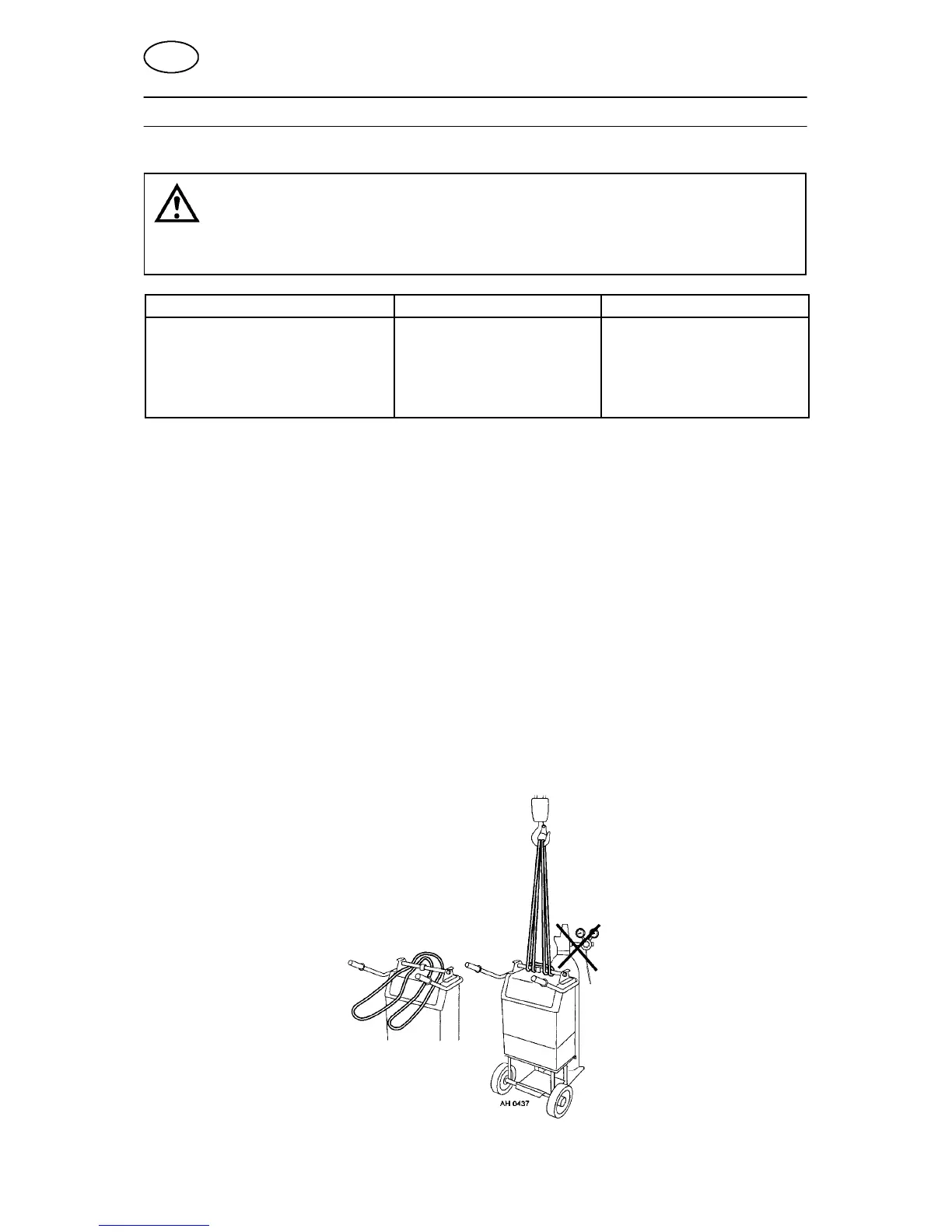

5.1 Lifting instructions
