5 OPERATION

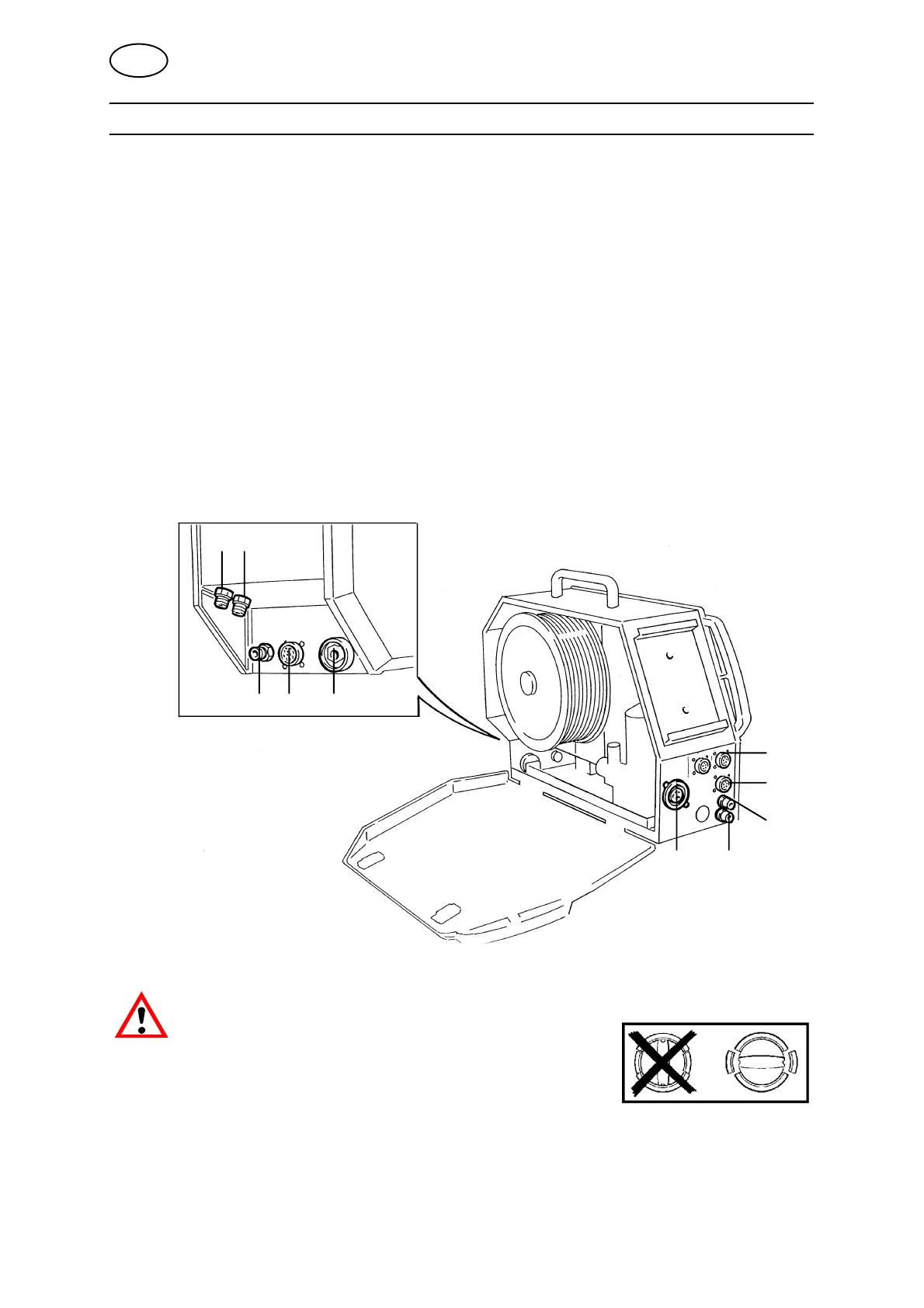

5.1 CONNECTION
1. Nipple, cooling water (only certain models)
2. Nipple, gas connection
3. Connector, control cable
4. Adapter, welding current
5. Connector, remote control (activated automatically on connection of remote)
6. Nipple, cooling water (only certain models)
7. Adapter, welding torch
8. Connector setting control
23 4
61
8
5
6
17
IMPORTANT!
To prevent the reel sliding off the hub: Lock the reel in place
by turning the red knob as shown on the warning label atta-
ched next to the hub.
