8
TABLE 1.2 Basic Torch Assemblies Available (see Fig. 5.1)*
* Basic torches do not include liners, contact tips/tubes, or nozzles. Mix and match the accessories listed in Fig. 1.4 and
Tables 1.4.1, 1.4.2, and 1.4.3 to customize a torch for your welding application.
1.3 REQUIRED EQUIPMENT (See Fig. 1.3)
1.3.1 Wire Feeder Connector Assembly - P/N
2075378
Provides quick connect and disconnect of the
MT-200 or MT-400 to a MIG-35, or Digimig Wire
Basic Assy./Length 10-ft. (3.0m) 12-ft. (3.6m) 15-ft. (4.5m) 25-ft. (7.5m)
MT-200 998888 948921 998887 ---
MT-400 999469 948922 999470 18232
Feeder. It includes power cable, gas hose, and
switch cord with fitted connections.
1.3.2. Wire Outlet Guide and Feed Roll
Select the proper outlet guide and feed roll from
Table 1.3.
Table 1.3 - Outlet Guide to Feed Roll
Wire Wire Outlet Guide Feed Roll (U-, V-, or Serrated Groove)
Wire Size MIG-35 MIG-35
Type In. Digimig Digimig
Hard 0.023 999745n 17998(V)
H 0.030 993860(a) 2075300(V)
0.035 993860(a) 2075303(V)
0.045 39N15(b) 2075302(V)
0.052 39N15(b) 2075330(V)
1/16 39N15(b) 2075299(V)
Cored 0.035 9933860(a) 19761 (Serr.)
"C" 0.045 39N15(b) 19761 (Serr.)
0.052 39N15(b) 2075261 (Serr.)
1/16 39N15(b) 2075261 (Serr.)
5/64 62N17(c) 2075261 (Serr.)
3/32 62N17(c) 2075257 (Serr.)
Soft 0.035 29N13(d) 2075304 (U)
"S" 3/64 29N13(d) 2075301 (U)
n Also requires Guide Bushing, P/N 17997 (see Fig. 1.3).
(a) Includes replaceable sleeve (995651).
(b) Includes replaceable sleeve (995692).
(c) Requires outlet guide insert (993902 - yellow for 0.035-in.; 05N57 - red for 3/64-in.)
MIG-35, DIGIMIG
using 0.023-in. wire (MT-200)
OUTLET GUIDE - 999745
INCLUDES INSERT - 999746
(CUT TO LENGTH)
(See Table 1.3 or
Wire Feeder booklet)

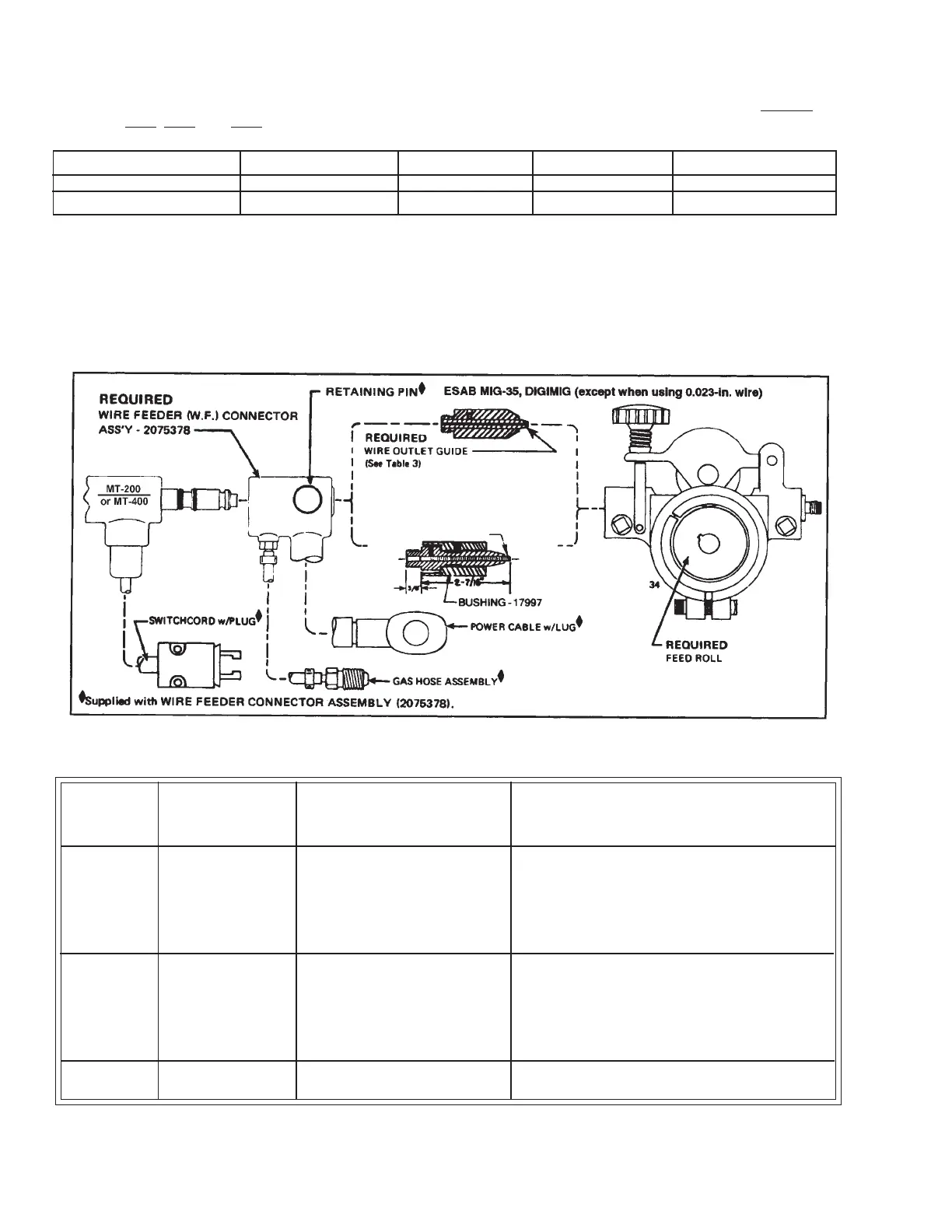

Figure 1.3 - Connecting MT-200 or MT-400 to a Mig-35 or Digimig Wire Feeder
