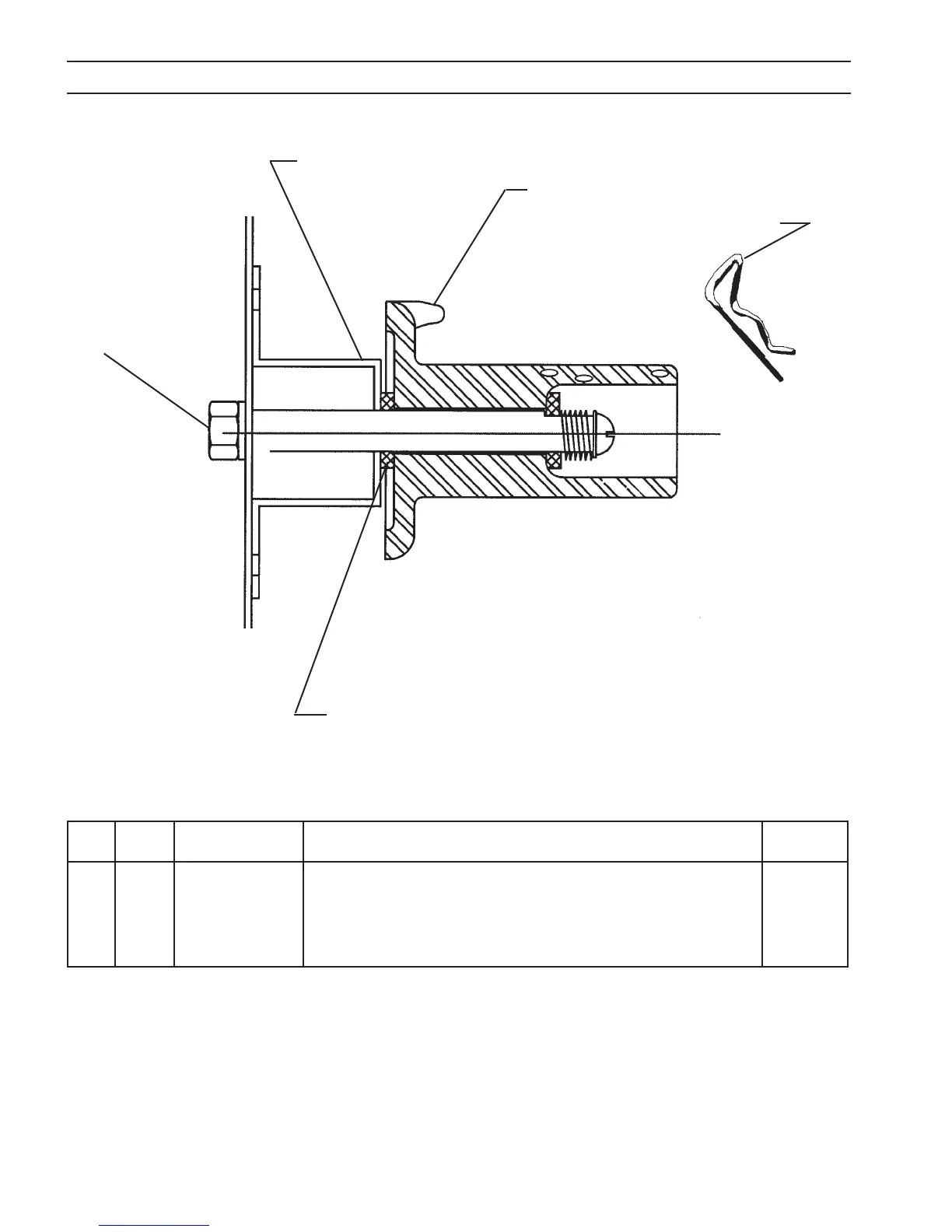

Figure 30 - Spindle Assembly for Migmaster 260
80
81
82
83
84
QTY. ITEM CIRCUIT
No. REQ. NO. DESCRIPTION SYMBOL
80 1 0558002561M WIRE SPOOL MOUNT BRACKET
81 1 948258 MOLDED SPINDLE
82 1 634347 CLIP HITCH .16D X 3.25L
83 2 948255 BRAKE PADS
84 1 36756 “D” SHAFT ALUMINUM
SECTION 6 REPLACEMENT PARTS
