6 OPERATION
General safety regulations for the handling of the equipment can be found on
page 3. Read through before you start using the equipment!

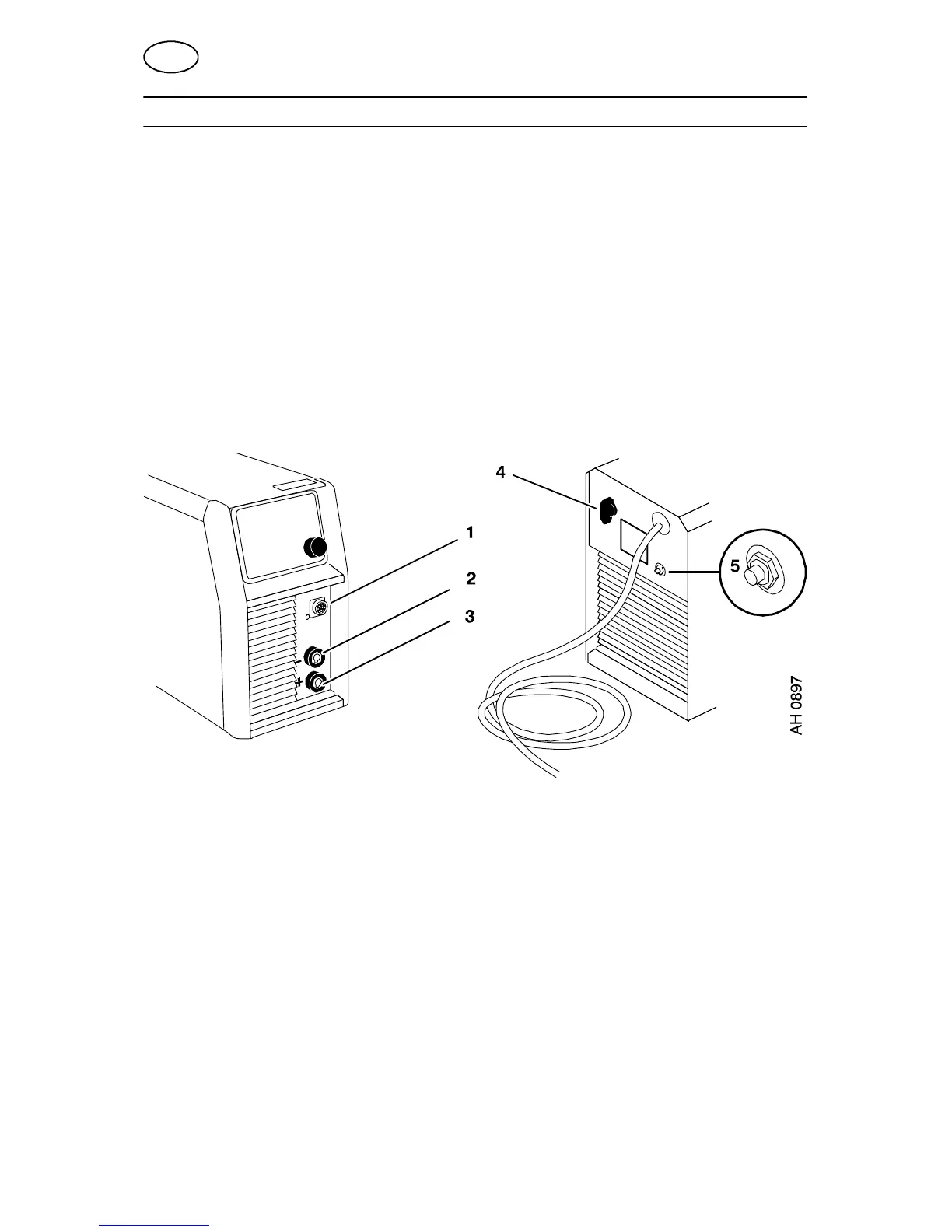

6.1 Connections and control devices
1 Connection for wire feed unit or remote
control unit
4 Mains voltage switch 1 / 0
2 Connection (--) MIG/MAG: Return cable
TIG: Welding torch
MMA: Return cable or welding cable
5 Fuse for supply voltage for feeder unit,
42 V
3 Connection (+) MIG/MAG: Welding cable
TIG: Return cable
MMA: Welding cable or return cable
6.2 Connection of welding and return cable
The power source has two outputs, a positive terminal (+) and a negative terminal
(--), for connecting welding and return cables. The output to which the welding cable
is connected depends on the welding method or type of electrode used.
Connect the return cable to the other output on the power source. Secure the return
cable’s contact clamp to the work piece and ensure that there is good contact be-
tween the work piece and the output for the return cable on the power source.
For MMA welding, the welding cable can be connected to the positive terminal (+) or
negative terminal (--) depending on the type of electrode used. The connecting polar-
ity is stated on the electrode packaging.
