10
DO NOT DUNK ON THIS UNIT .
DO NOT HANG FROM ANY PART OF THIS
UNIT , INCLUDING THE BACKBO ARD, RIM,
SUPPORT BRACES OR NET.
4L-8152-01
WARNING
!
10.
Note: Tighten bolts snug but, do not over tighten.
Board Arms must pivot freely

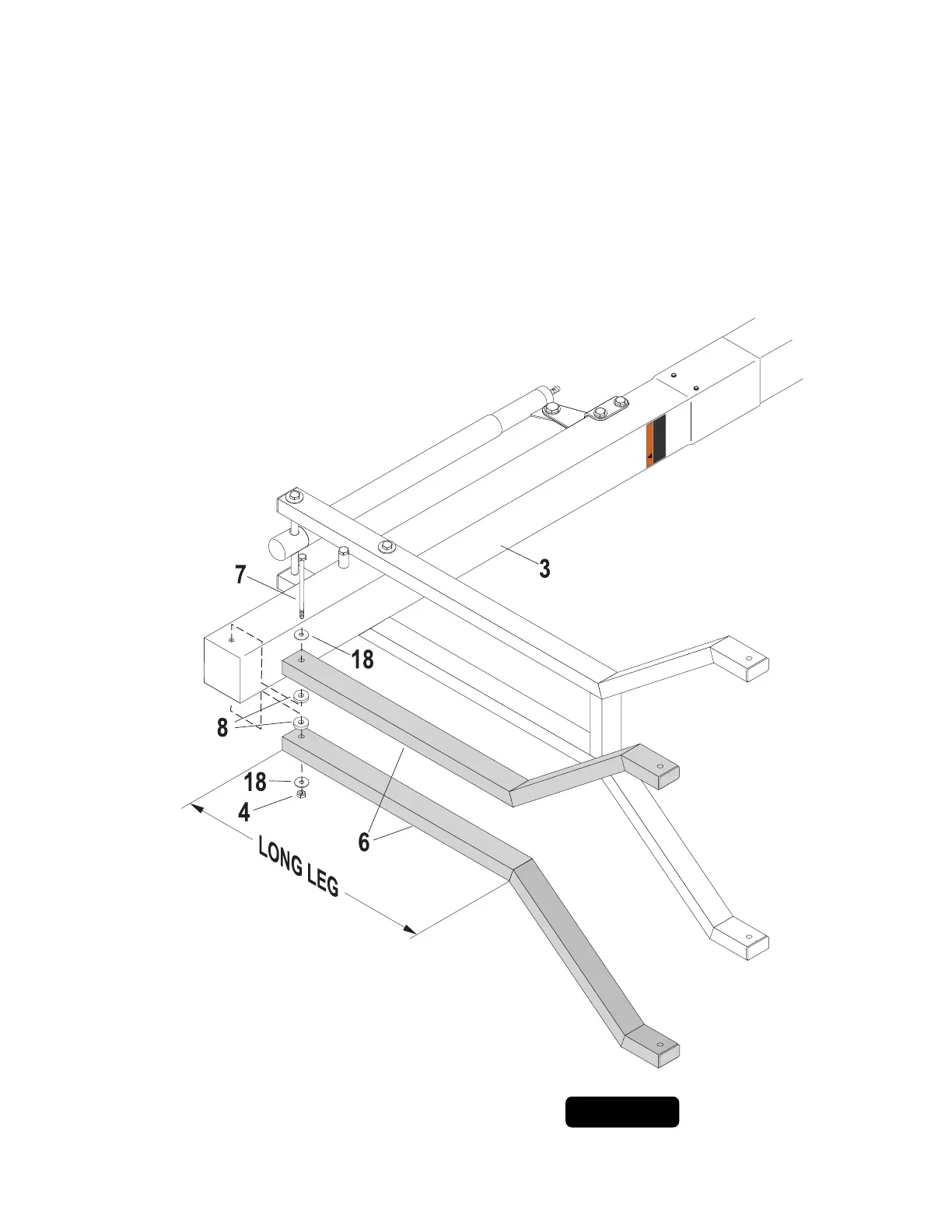

Attach long leg of Upper Arms (#6) to Top Pole (#3), as
shown in Figure 9, using a bolt (#7), two flat washers
(#18), two spacers (#8) and one lock nut (#4).
Figure 9
To Next Page
