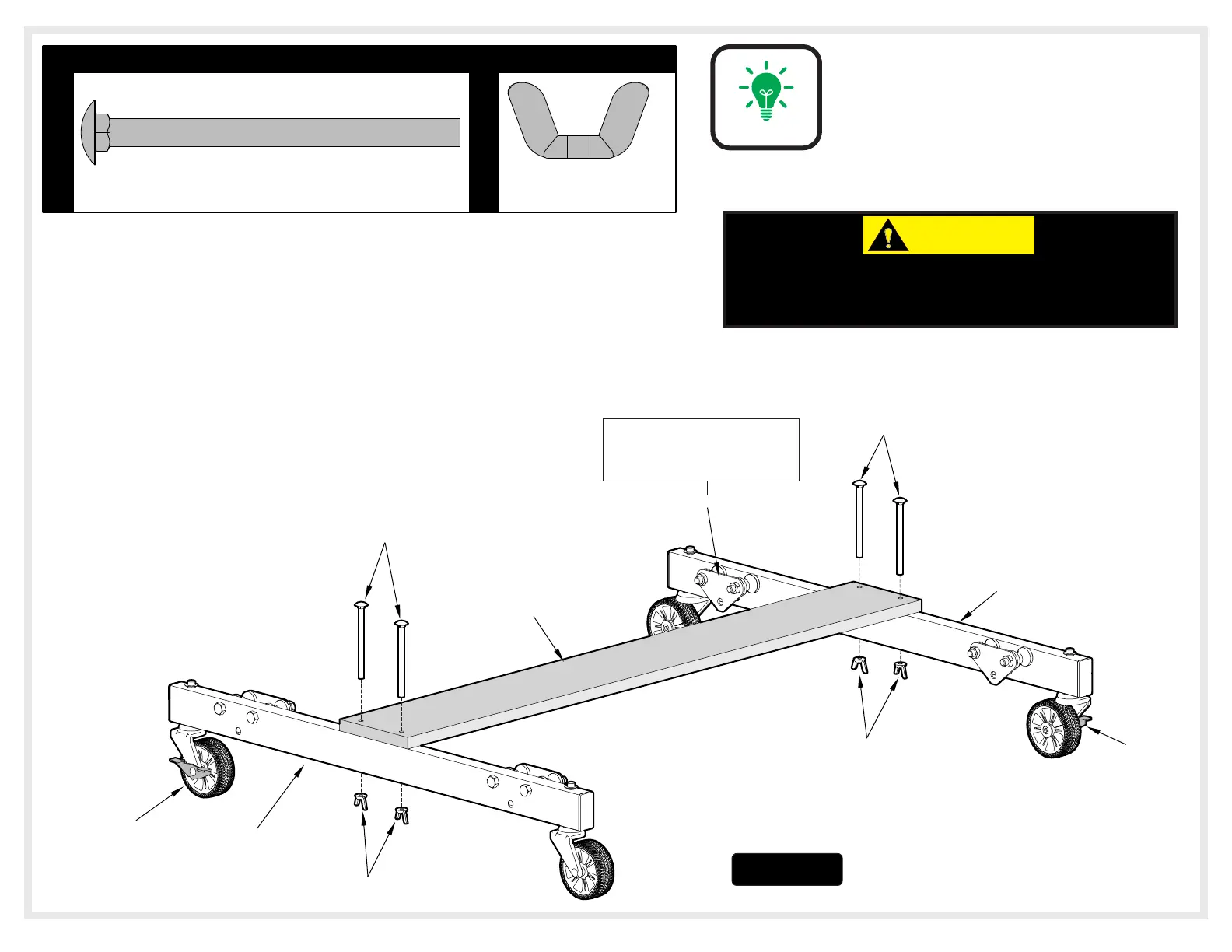

1. Attach Wood Bottom Board (#15) to Caster Beam Assemblies (#8)
as shown in Figure 1. Turn Caster Beams as shown and attach
board with four Carriage Bolts (#31) and four Wing Nuts (#32).
Tighten Wing Nuts securely.
32
31
(Qty. 4)
1/4-20 Wing Nut
8
Caster
with
Lock
HARDWARE NEEDED
1/4-20 X 3 1/4 Carriage Bolt
(Qty. 4)
NOTE: Make sure logos are right side up and
facing the outside as shown.
1
Figure
4
32
31
15
31
32
Caster
with
Lock
8
43
Note: Support Plate (#43)
is on the inside of Caster
Rail (#8) as shown.
ASSEMBLY TIP
On the top of each page you will find a picture of the
Hardware Needed (to scale) along with the Quantity,
Key# and Description. You can lay the hardware on
the picture to identify and sort the hardware.
READ AND FOLLOW ALL ASSEMBLY, OPERATING, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO (2)
ADULTS ARE NEEDED TO PUT THIS TABLE TOGETHER!
CAUTION
