If you want to see a video on how to insert Screw (#35) go to:
https://support.escaladesports.com/videos/
Or
Scan with your smartphone:

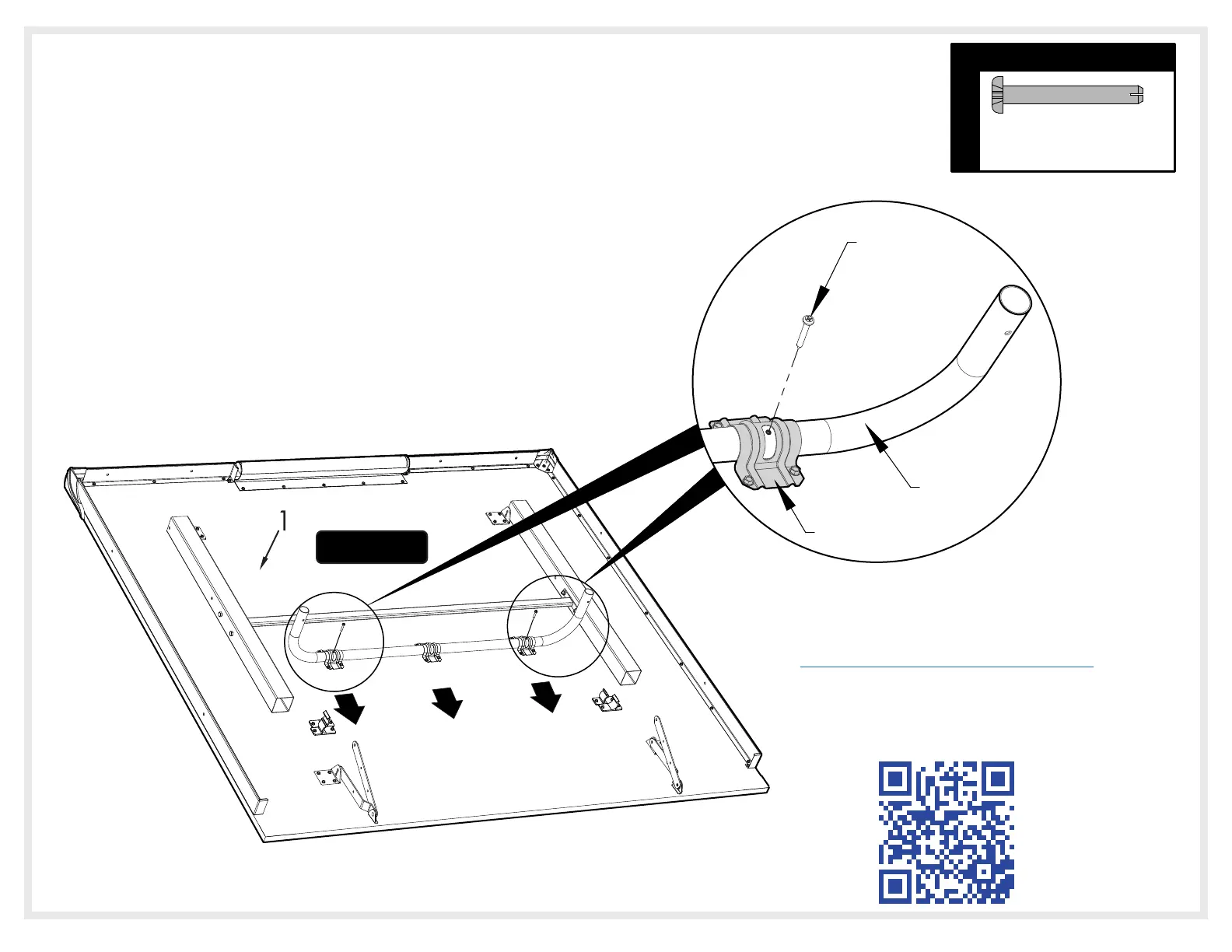

3. Rotate U-support (#21) that is on bottom of Table Top until you see the screw holes in the slots of U-clips (#22).
If necessary Slide U-support (#21) side to side and back and forth to see holes. See Figure 3 & Detail A.
4. Insert Screw (#35) through slot in U-clip (#22) and into U-support (#21). See Figure 3 & Detail A.
Thread screw all the way into U-support until it touches the back of the tube. There should be about
3/8” of screw (#35) left sticking out. Repeat for second Screw (#35) and U Clip (#22).
NOTE: To aid in assembly use a cordless drill but DO NOT over tighten screws. Wear safety glasses.
35
HARDWARE NEEDED
#8-32 X 1 1/4
Sheet Metal Screw
(Qty. 2)
Detail A
3
Figure
21
NOTE: Prepare an area for the assembly of the second table top half. If necessary,
move the first table top half aside with the aid of a helper. Be sure to place it in a
location where it won't be disturbed or damaged. If setting on its side, be sure to
place the bottom edge no less than 12 inches away from the wall. Also be sure to
place carpet or pieces of the shipping carton down to protect table top edges. If
floor is not carpeted, brace table top half with a heavy object to keep it from sliding.
5. Repeat this steps 3 & 4 to complete a second Table Top Assembly.
6
To Next Page
