2.2.3 Omega Brackets Installation
Omega brackets are used to ensure the required distance from the wall is maintained.
2.2.4 Remote Alarm Contacts Connection
External alarm can be connected to the remote alarm
contacts located at the back of the freezer base above
the power cord. These remote alarm contacts will
transmit a DC voltage upon occurrence of a high
temperature (HA) and power failure (PF) alarm. The
contacts provide 12 VDC (+) and (-) connectivity.
2.2.5 Electrical Supply Connection and
Power Protection Bracket Installation
Plug the power cord (1) into the power inlet at the
rear of the unit. Turn on the power switch (2). Install
the power protection bracket (3) over the power cord
and power switch by installing the 3 screws into the
pre-tapped holes.

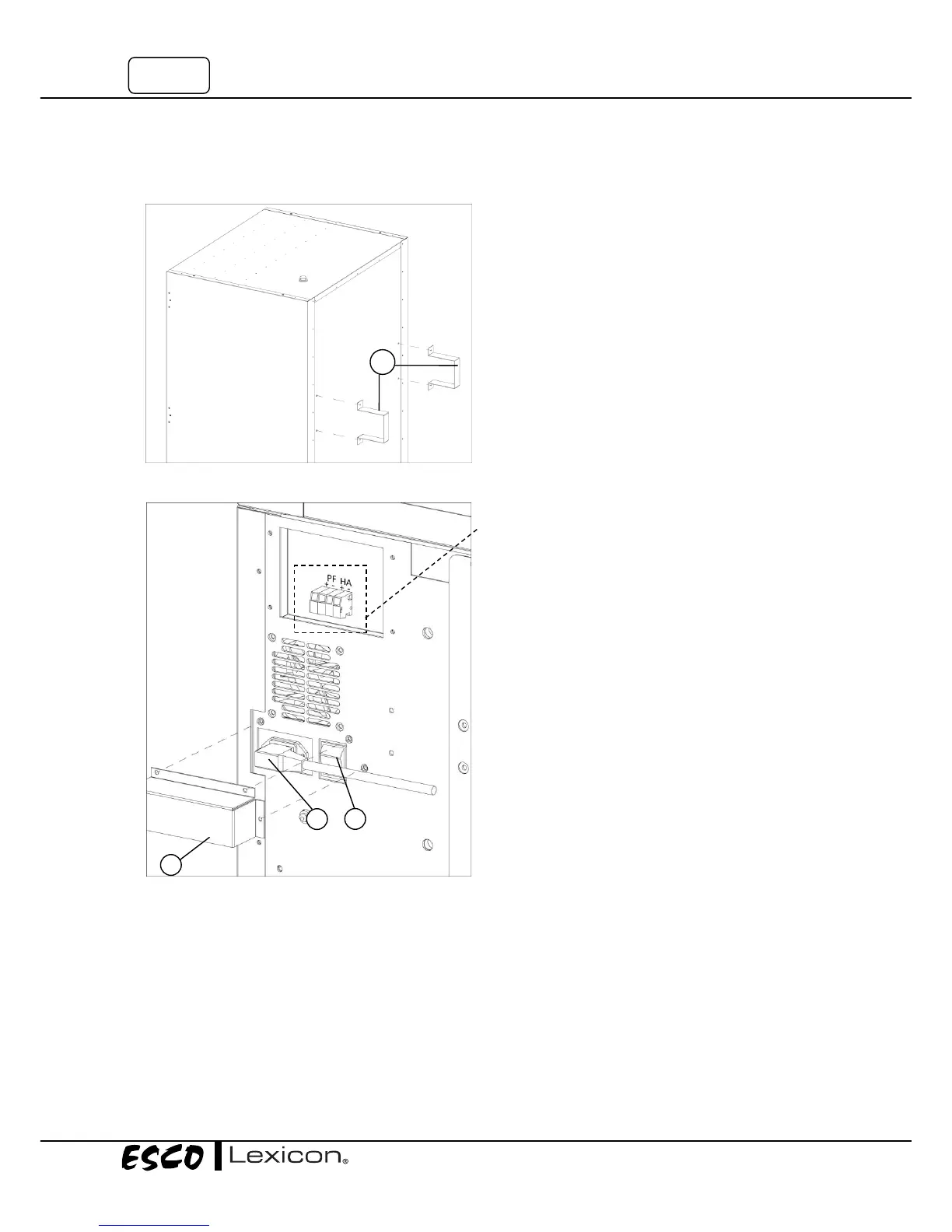

1. Attach the bracket(1) to its place – sync the hole in
the bracket(1) to the hole in the unit
2. Screw the M6 bolts into the designated place (the
holes on top and below the bracket(1))
3. Repeat the 2 steps above with the other bracket(1)
1
2
1
3
