Changing your iLog’s battery
You have the ability to change your iLog’s battery, but once opened your loggers IP rating
becomes void and will not be covered under warranty. To replace your logger’s battery, please
follow the following steps:
1. Purchase a SAFT 3.6V ½ AA, Lithium battery (can be purchased through your ESCORT
distributor or local electronics store).
2. Remove the three screws located on the rear of your iLog logger.
3. Carefully separate the two halves of your iLog’s plastic case and ensure that you can
locate the three small screw o-ring seals and larger o-ring case seal.
Note: If you are changing the battery on an iLog humidity logger it is important not to
make contact with the sensor. If you accidentally remove the humidity sensor and bung
from the iLog case, you can reinsert the sensor using the guide hole in the PCB (Printed
Circuit Board).
4. Move the battery located within the battery compartment so that the batteries polarity can
be viewed. The polarity of the battery should be as follows + C -.
5. Remove the battery by pushing firmly on either end of the battery and pulling the battery
towards you.
6. Insert the new battery by separating the battery springs, ensuring that the battery is fitted
in the correct direction (polarity + C -).
7. Place the three small screw o-ring seals and larger o-ring case seal on their appropriate
positions and replace the lid of your iLog case ensuring the lid of the case is the correct
direction.
8. Finally, re-attach the three screws located on the back of the logger case so that a tight
seal is formed between both case halves.

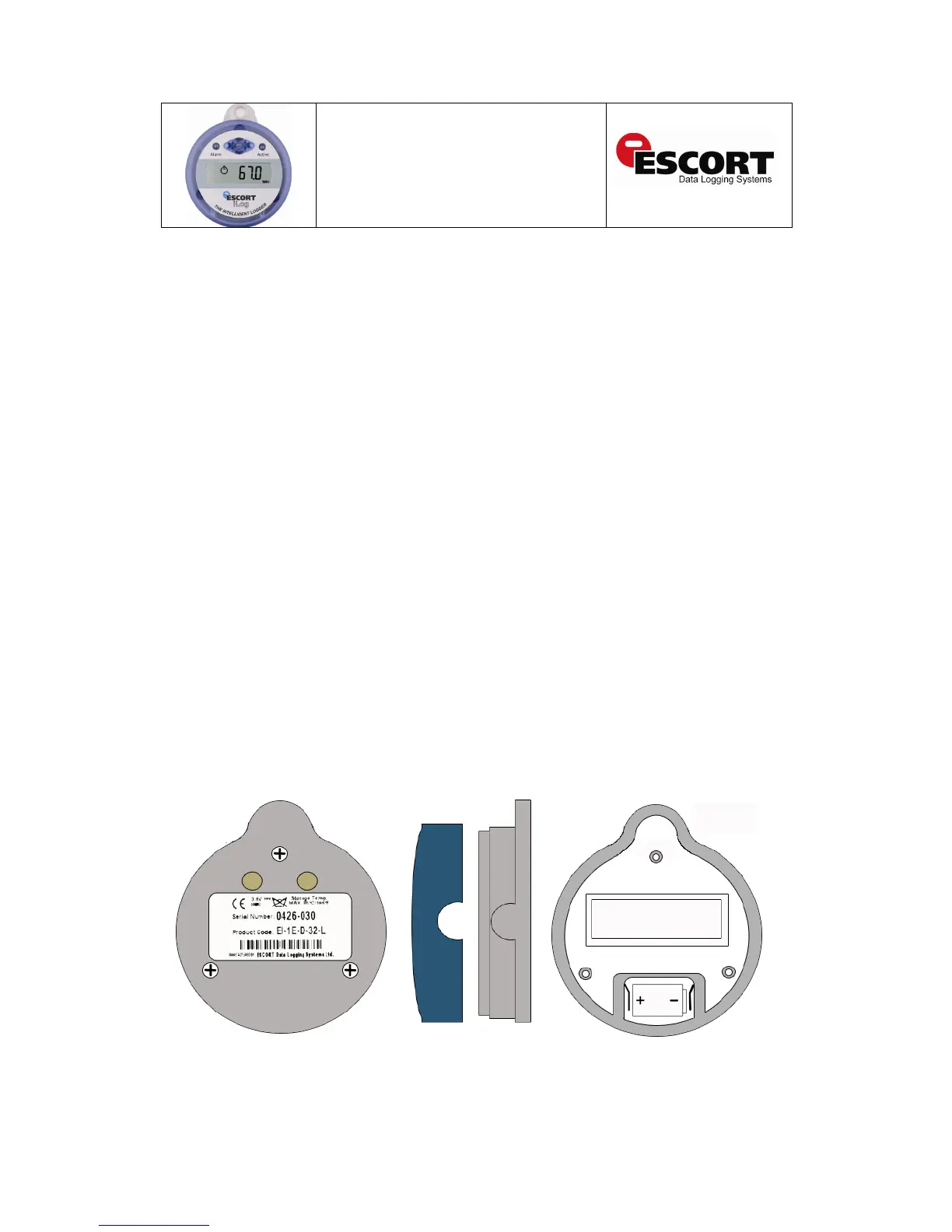

iLog back view iLog side view iLog internal view
