MAYA44 ESI
5. Connecting External Devices

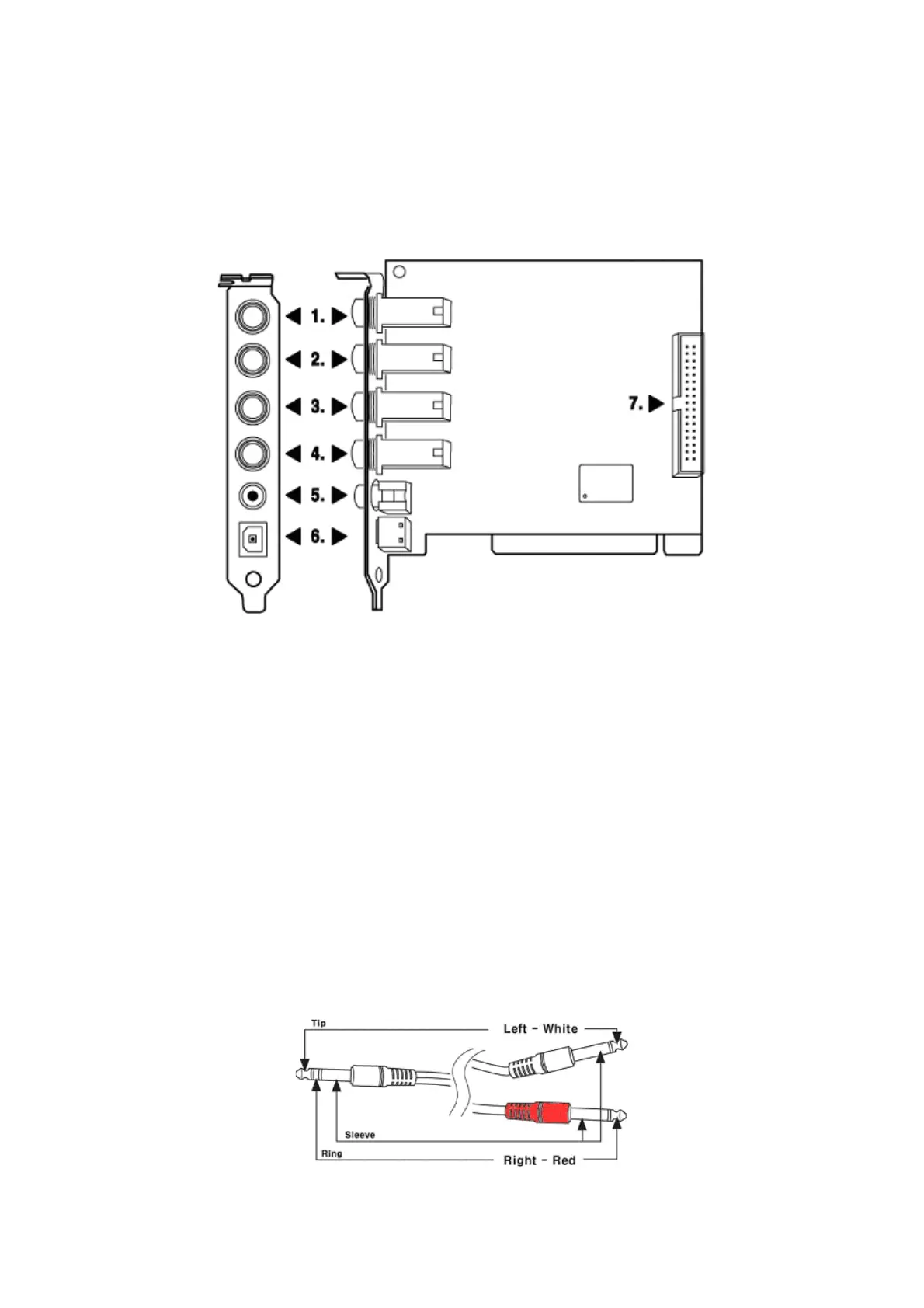

5.1. MAYA44 Connectors
1. LINE 1/2 Analog Input Connector (Stereo Input) / MIC 1 Input (Mono Input)
2. LINE 3/4 Analog Input Connector (Stereo Input)
3. LINE 1/2 Analog Output Connector (Stereo Output)
4. LINE 3/4 Analog Output Connector (Stereo Output)
5. Coaxial Digital Output Connector
6. Optical Digital Output Connector
7. Optional I/O add-on connector
NOTE: The MAYA44’s output port uses stereo 2 x Mono Y cable. Like below picture, MAYA44 Input port
uses 55 stereo phone jack and connection to Mixer or external devices need two MONO jacks for each Left
and Right channel. Stereo (TRS) cable’s Tip is connected with Left(white) In/Out port. The Ring is
connected with Right(red) In/Out port. The Sleeve connected with Ground of both side.
(Cables sold separately)
13
