Eskimo Eskape 2000 - Parts List; Hardware Identification Chart

5
Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
ENGLISHENGLISH
PARTS LIST
NO. PART DESCRIPTION QT Y.
1 26544 ASSEMBLY SPREADER POLE 35IN 1
2 27727 ASSEMBLY EXTENSION TUBE AND CORNER 2
3 27729 ASSEMBLY SPREADER POLE ADJUSTABLE FRONT 2
4 27730 ASSEMBLY SPREADER POLE ADJUSTABLE REAR 1
5 27821 CAP SQUARE TUBE 20.5MM 6
6 36618 HINGE LIGHTWEIGHT DBL SIDE 3 HOLE 2
7 36858 CAP SQUARE TUBE 20.5MM X 27MM 2
8 42831 TUBE 29.5MM SQUARE MID SECTION 34.5IN 4
9 42832 POLE BTM SLED FRONT 55.4IN X 6.64IN DROP 1
10 42833 POLE BTM SLED REAR 55.4IN X 6.64IN DROP 1
11 42834 TUBE ASSEMBLY CORNER ESKAPE DOOR 43.5IN 2
12 42835 TUBE ASSEMBLY CORNER SIDE ESKAPE FNT 54IN 1
13 42836 TUBE ASSEMBLY CORNER SIDE ESKAPE REAR 54IN 1
14 43504 SLED DRILLED 52 X 36 X 9IN LONG SIDE ORIENT 1
15 42982 ASSEMBLY BENCH SEAT 38IN 1
16 43337 ASSEMBLY BENCH BACKREST 38IN 1
17 43422 WELDMENT BENCH FNT SPAN TUBE F 52IN SLED 1
18 43423 WELDMENT BENCH FNT SPAN TUBE M 52IN SLED 1
19 43424 WELDMENT BENCH BK SPAN TUBE F 52IN SLED 1
20 43425 WELDMENT BENCH BK SPAN TUBE M 52IN SLED 1
21 33581 KIT QRS REPLACEMENT 
22 36642 ASSEMBLY HINGE ESKAPE QRS 2
ITEMS BELOW NOT SHOWN
 69180 BOLT 1/420 X 13/4 PTH 2
 67430 BOLT 1/420 X 21/2 PTH 6
 48270B BOLT 1/4 X 20 X 21/2 IN HH CS GR5 BLK ZN 2
 48250B BOLT 1/420 X 13/4 HHCS GR5 BLK ZN PT 4
 48240B BOLT 1/420 X 11/2 HHCS GR5 ZN 2
 69345 BOLT 1/420 X 1 HH GR5 ZN 8
 36953 SCREW #6 X 1/2 PTH BLK ZN 16
 48320 SCREW #8 X 1/2 IN PPH SELFDRILLING 16
 67538B NUT 1/420 NYLK GR2 ZN 10
 48752B NUT 1/420 HFNYLK BLK ZN 16
 48261B WASHER 1/4 X 5/8 X 0.07 IN GR8 ZN 24
 WN516 WASHER 8.1 X 19 X 1.6 MM PLASTIC 8
 37546 WINDOW HEXAGON 4
 37547 WINDOW TRIANGLE 2
 69654 EDGE TRIM 1/4 IN X 93.5 IN 1
 42826 SKIN SEWN COMPLETE ESKAPE 2000 1
 27921 ROPE 1/4 IN X 10 FT TWISTED BLK 1

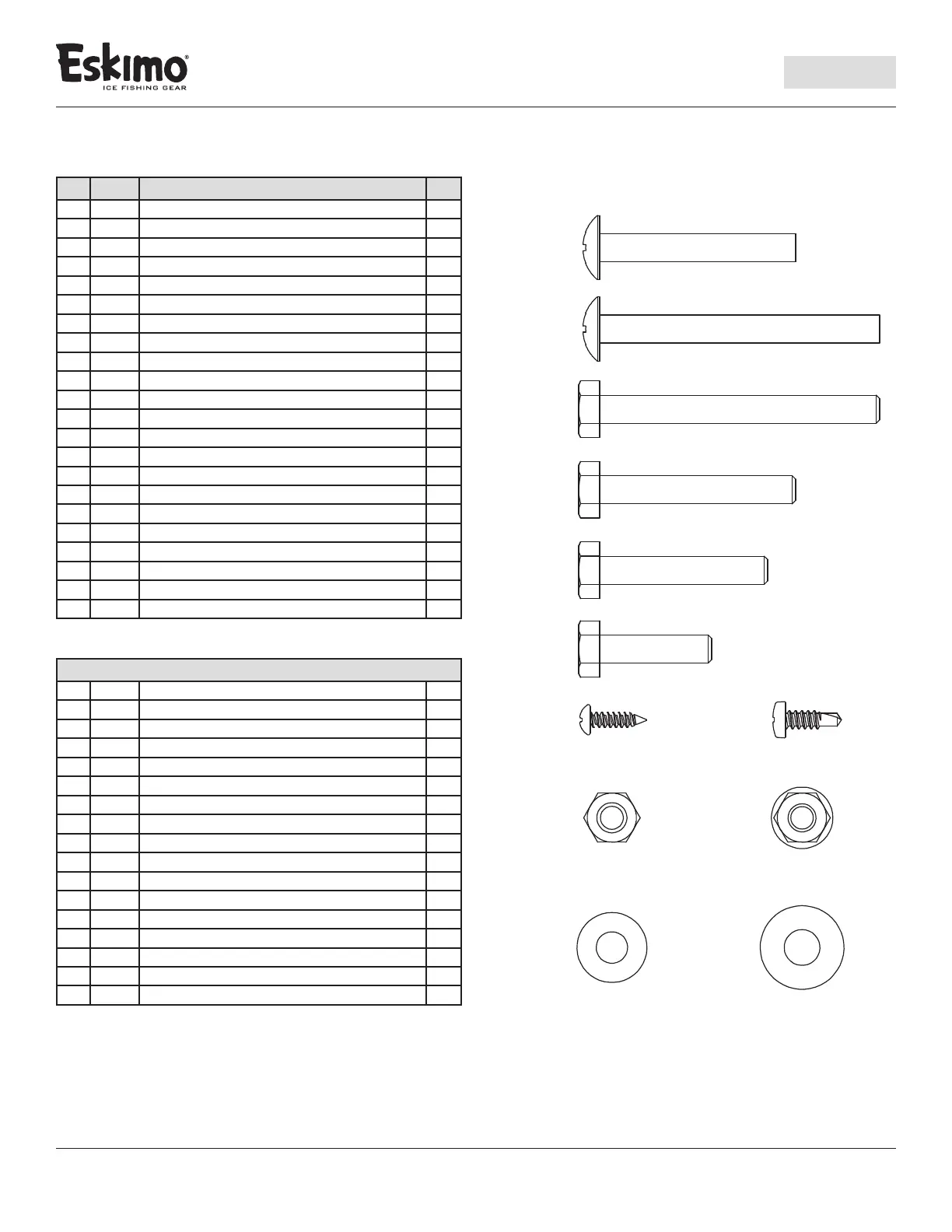

HARDWARE IDENTIFICATION CHART
Not all bolt sizes shown are included with all shelters. Bolts shown are for size reference only.
Extra hardware may be included in the parts bag.
69180
BOLT 1/4-20 X 1-3/4 PTH
67430
BOLT 1/4-20 X 2-1/2 PTH GR5 BLK ZN
48270B
BOLT 1/4-20 X 2-1/2 IN HH CS GR5 BLK ZN
NUT 1/4-20 HNYLK
GR5 BLK ZN
67538B
WASHER 1/4 X 5/8 X 0.07 IN
GR8 BLK ZN
48261B
NUT 1/4-20 HFNYLK
GR5 BLK ZN
48752B
WASHER 8.1 X 19 X 1.6 MM
PLASTIC
WN516
BOLT 1/4-20 X 1-3/4 HHCS GR5 BLK ZN P-T
48250B
BOLT 1/4-20 X 1-1/2 IN HH CS GR5 BLK ZN P-T
48240B
BOLT 1/4-20 X 1 IN HH GR5 ZN
69345
SCREW #6 X 1/2 IN
PTH BLK ZN
36953
SCREW #8 X 1/2 IN
PPH SELF-DRILLING
48320
