Eskimo Eskape 2000 - Assembly Instructions; Tools Needed for Assembly; Assembly Tips and Notes; Section 1: Mounting Bench Seat to Sled

6 Check for parts online at www.GetEskimo.com or call 800-345-6007
Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
ENGLISHENGLISH

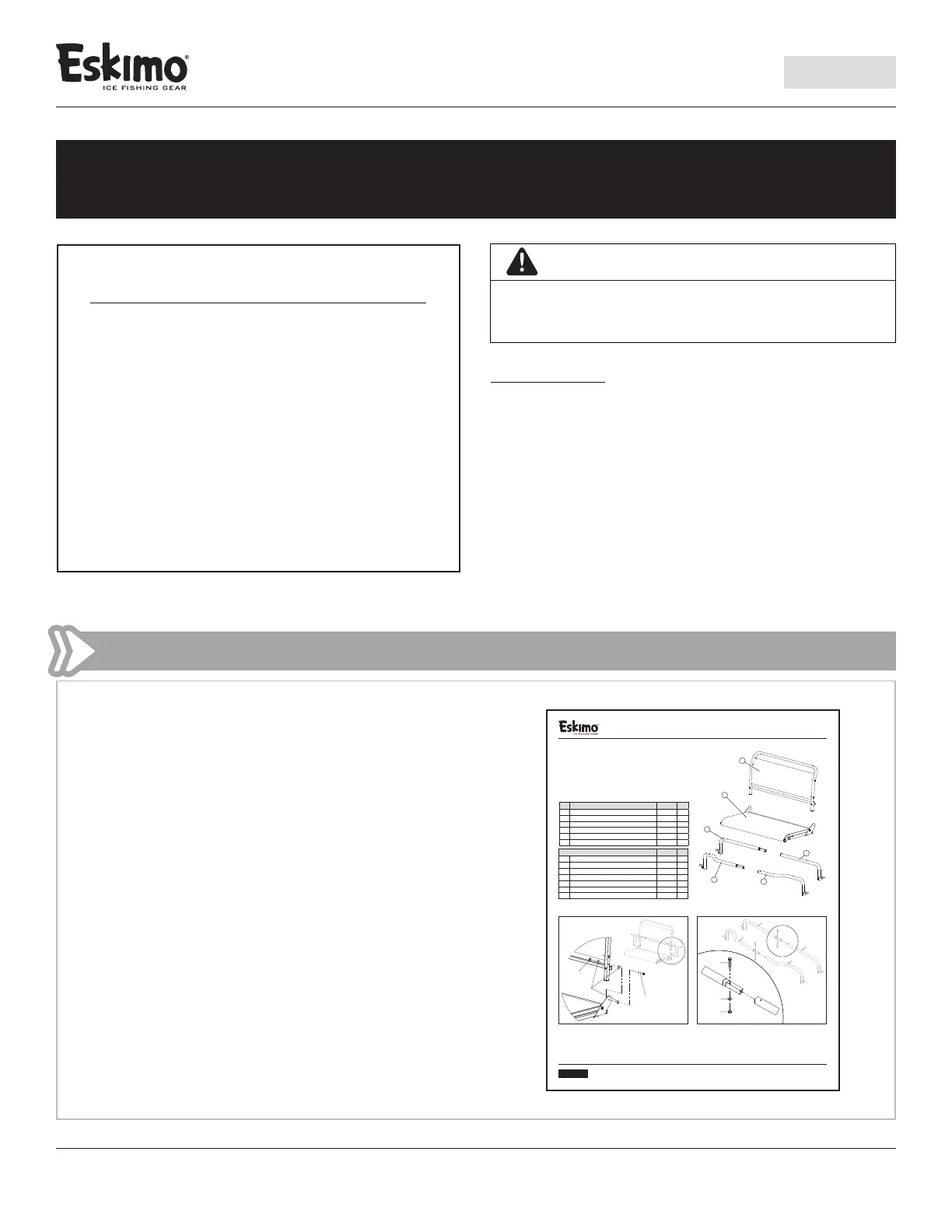

Reference the separate insert
sheet (#43501)
38" Eskape Bench Seat
Assembly Instructions
for guidance on assembling
your bench seat.
Once assembled, return here to
mount it to your sled.
IMPORTANT ASSEMBLY TIP
DO NOT FULLY TIGHTEN ANY NUT AND BOLT COMBINATION
UNTIL INSTRUCTED IN LATER NOTES. THIS WILL HELP WITH
HOLE ALIGNMENT FOR ALL PARTS.
ASSEMBLY TIPS:
• This ice shelter should be assembled in an indoor setting due to the
time and length of assembly. Identify and familiarize yourself with all
parts and hardware before assembly. Allow 2-3 hours for assembly.
• The use of a cordless drill with socket will make assembly of your
ice shelter much quicker. Be sure to set the drill speed on low so
you do not over tighten any nut and bolt combination.
• If a tracking kit is purchased with the shelter it should be mounted
to the sled before assembly of the ice shelter for convenience.
ASSEMBLY INSTRUCTIONS
Get parts online at www.GetEskimo.com or Call 800-345-6007
P/N: 43501 | REV 1 | 04/21/2023 | ©2023 Ardisam, Inc. | All Rights Reserved.
Assembly Instructions
38 INCH ESKAPE BENCH SEAT
1
2
6
3
4
5
PARTS LIST
NO. DESCRIPTION PART NO. QT Y.
1 ASSEMBLY SEAT BENCH 38 INCH 42982 1
2 ASSEMBLY BACKREST BENCH 38 INCH 43337 1
3 WELDMENT BENCH FNT SPAN TUBE F 52IN SLD 43422 1
4 WELDMENT BENCH FNT SPAN TUBE M 52IN SLD 43423 1
5 WELDMENT BENCH BK SPAN TUBE F 52IN SLD 43424 1
6 WELDMENT BENCH BK SPAN TUBE M 52IN SLD 43425 1
ITEMS BELOW NOT SHOWN PART NO. QT Y.
 B OLT 1/420 X 1 HH GR5 Z N 69345 4
 B OLT 1/420 X 11/2 HHC S GR5 ZN 48240B 2
 B OLT 1/420 X 13/4 HHC S GR5 ZN 48250B 4
 B OLT 1/420 X 21/2 HHC S GR5 ZN 48270B 2
 WASHER 8.1 X 19 X 1.6 MM PLASTIC WN516 6
 WASH ER 1/4 X 5/8 X 0.07 IN GR8 ZN 48261B 14
 NUT 1/420 HFNYLK BLK ZN 48752B 12
The assemblies created from this kit will be referenced and used
in your Eskape shelter manual.
Remaining hardware from this kit will be used for mounting the
bench in the shelter. DO NOT DISCARD.
ENGLISH
ENGLISH
Assemble #42982 to #43337 using; (2) ¼-20 x 1-¾ bolts,
(2) nylock nuts, and (6) plastic washers. Place plastic washers
on the nut side and bolt head side, along with (1) plastic
washer between #42982 and #43337.
1
#48752B
#48250B
#WN516
#42982
#43337
Assemble #43423 to #43422 using (1) ¼-20 x 1-½ bolts,
(1) nylock nut, and (1) washer (placed on nut side). Assemble
#43425 to #43424 using (1) ¼-20 x 1-½ bolts, (1) nylock nut,
and (1) washer (placed on nut side).
2
#43423
#43425
#43422
#43424
#48752B
#48261B
#48240B
• (2) 7/16" wrenches and/or socket driver
• Cordless drill with #1 Philips head bit
Tools Needed
SECTION 1  Mounting Bench Seat to the Sled
