Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
ENGLISHENGLISH
D

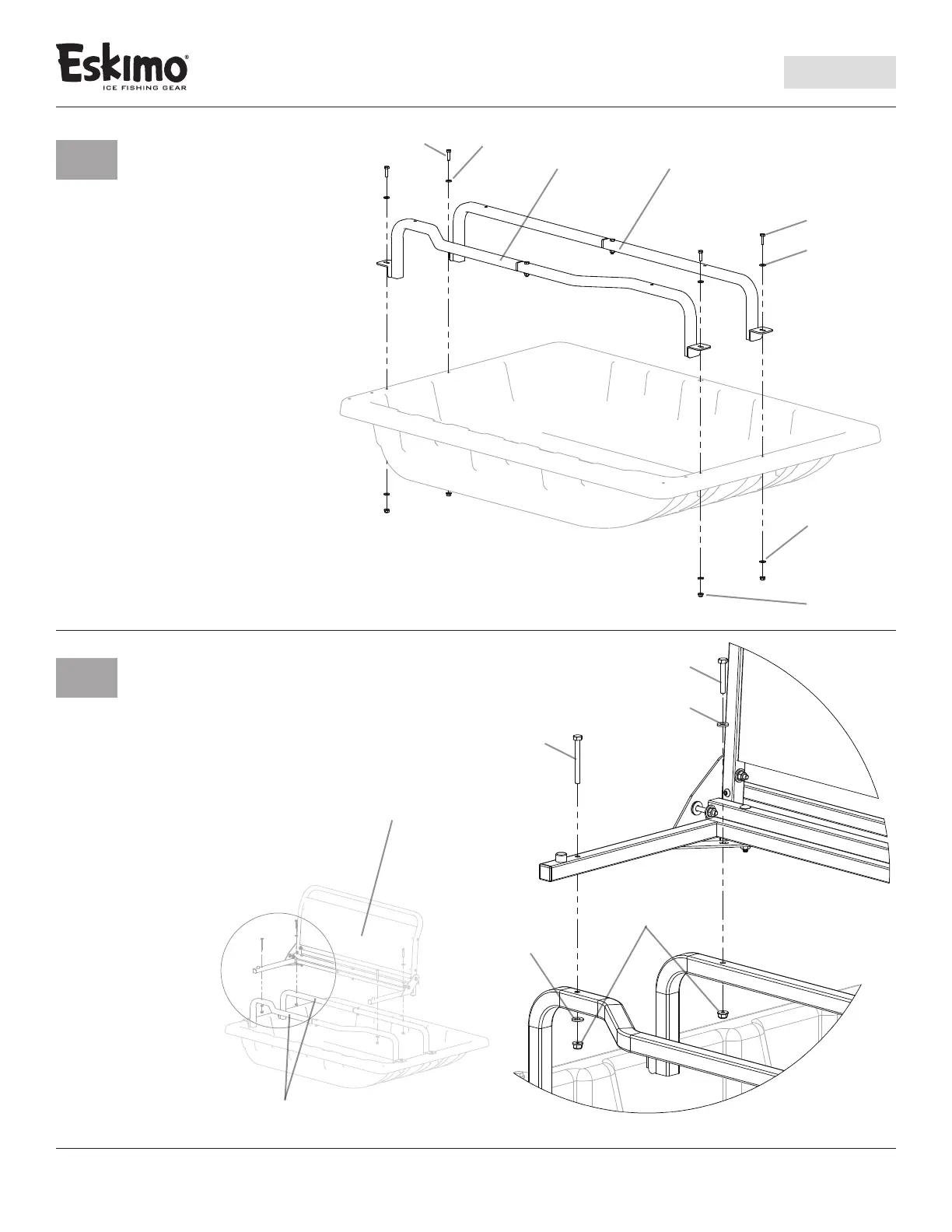

1.1
Assemble the 43425/43424 and
43423/43422 bench seat span
tubes to the sled using:
– (4) 1 Inch Bolts (69345)
– (8) ¼ Inch Washers (48261B)
– (4) Nylock Nuts (48752B)
NOTE:
This hardware was included in the bench
kit hardware bag.
1.2
Using the Bench Seat Assembly
you created at the beginning
of this section, attach the
42982-Seat/43337-Backrest
to the span tubes using:
– (2) 2-½ Inch Bolts (48270B)
– (2) 1-¾ Inch Bolts (48250B)
– (4) ¼ Inch Washers (48261B)
– (4) Nylock Nuts (48752B)
#48261B
#48752B
#48261B
#69345
#48261B
#69345
#48270B
#48250B
#48261B
#48261B
43422/43423
ASSEMBLY
43424/43425
ASSEMBLY
42982/43337
ASSEMBLY
SPAN TUBES
#48752B
