Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
ENGLISHENGLISH
#42832
#42834
#27727
#42834
#27727
#42833
#42836
#42835
#42831
#42831
#42831
#42831
FIGURE

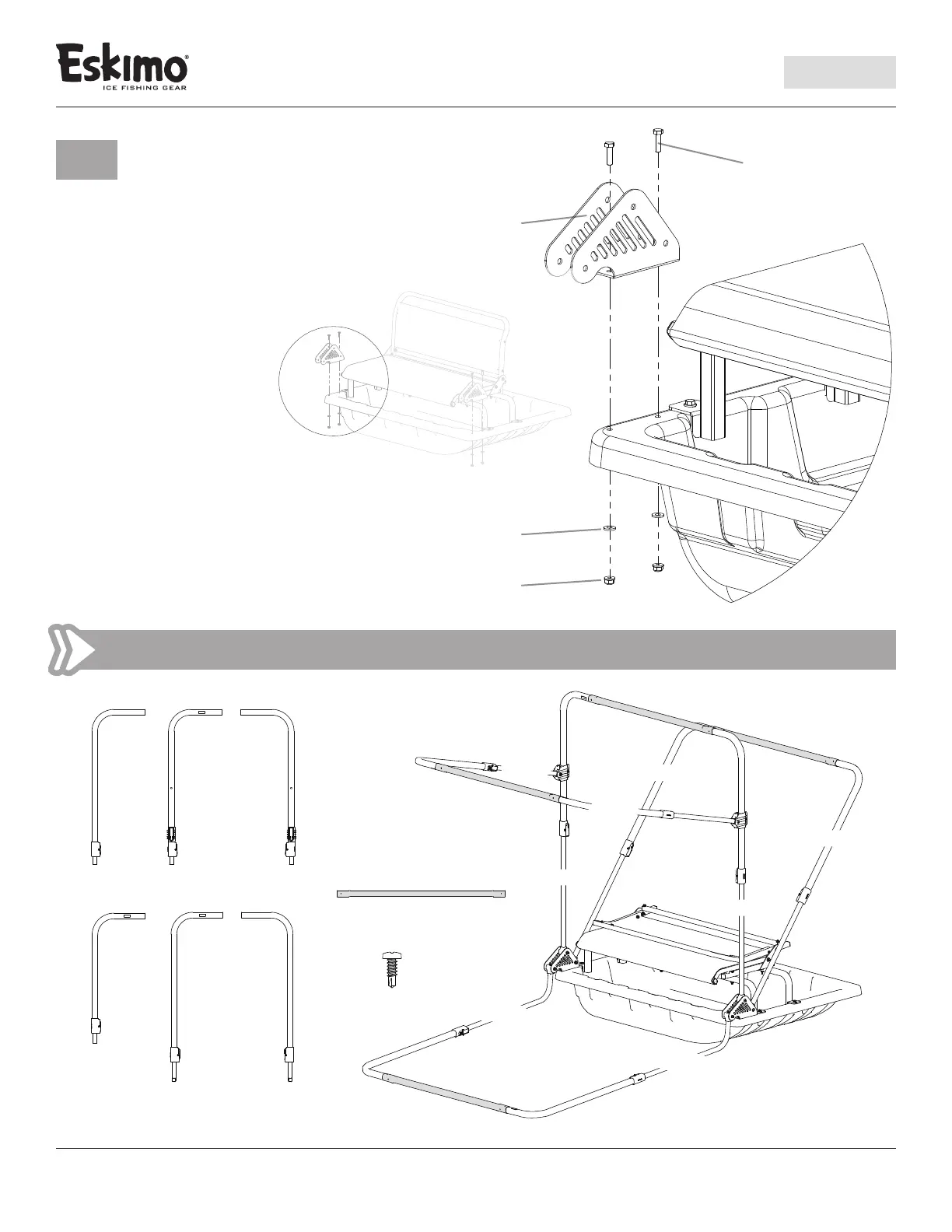

Pole Schematic Breakdown
1.3
Assemble 36618-Hinge to each
side of the sled using:
– (4) ¼-20 x 1 Inch Bolts (69345)
– (4) ¼ Inch Washers (48261B)
– (4) Nylock Nuts (48752B)
#27727
QTY 2
#42835
QTY 1
#42831
QTY 4
#42836
QTY 1
#42834
QTY 2
#42832
QTY 1
#48320
QTY 16
#42833
QTY 1
#36618
#48752B
#48261B
#69345
SECTION 2 – Assembling Frame Poles
