Eskimo Eskape 2000 - 2.1 Corner Pole Assembly (Mid Section); 2.2 Corner Pole Assembly (Mid Section); 2.3 Corner Pole with Hinge Assembly

9
Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
ENGLISHENGLISH
NOTE: There are two separate pole
assemblies covered in these steps.
Conrm you have matching corner
poles before beginning assemblies.

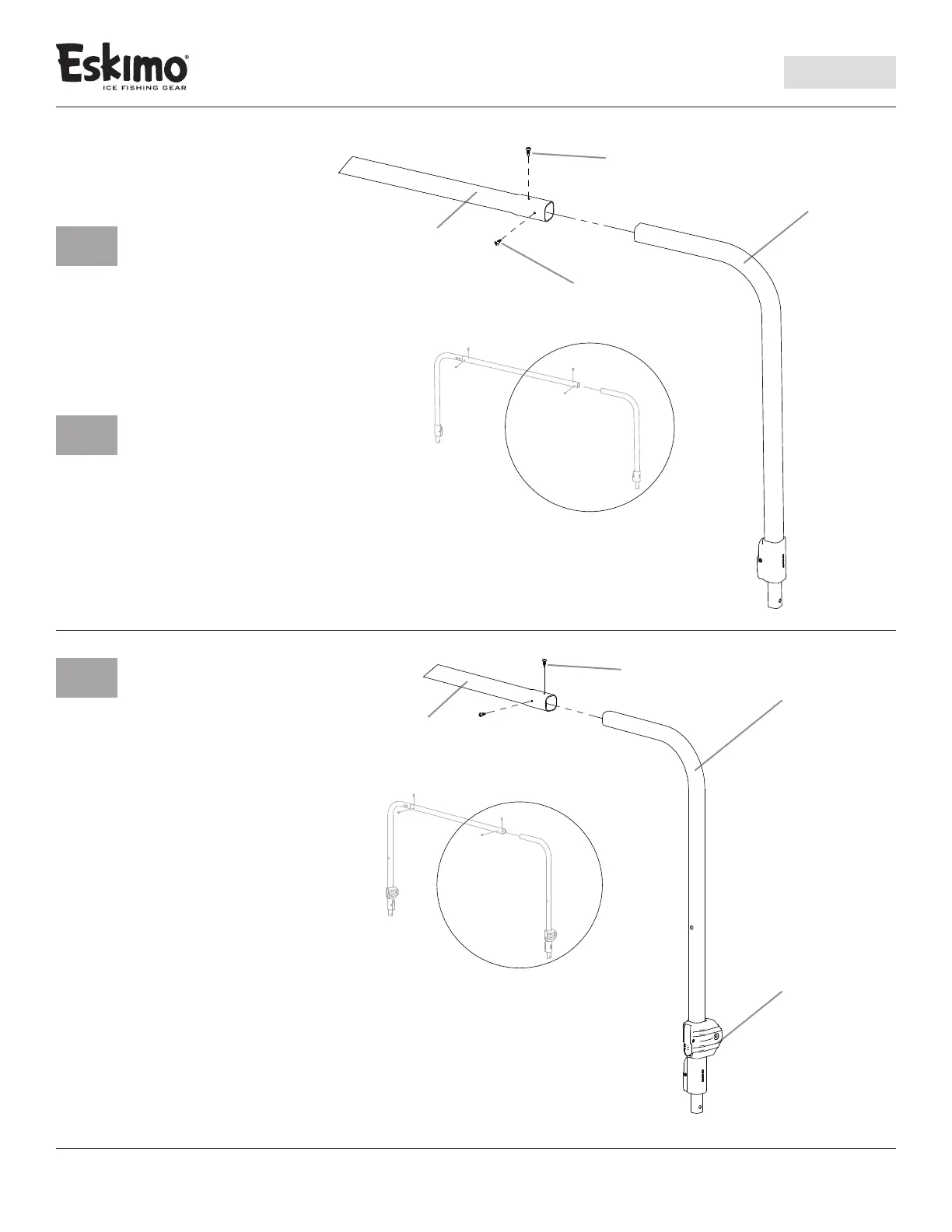

2.1
Insert 42834 corner pole assembly
into the end of 42831-Mid Section
Tube. Use (2) ½ inch self-drilling
screws (48320) to ax the tubes
together at the pre-drilled pilot
holes on the 42831 tube. Repeat for
the other side.
2.2
Insert 27727 corner pole assembly
into the end of 42831-Mid Section
Tube. Use (2) ½ inch self-drilling
screws (48320) to ax the tubes
together at the pre-drilled pilot
holes on the 42831 tube. Repeat for
the other side.
2.3
Insert the 42835-Corner Pole
with Eskape Hinge into the
end of the 42831-Mid Section
Tube. Use (2) ½ inch self-drilling
screws (48320) to ax the tubes
together at the pre-drilled pilot
holes on the 42831 tube.
On the other side insert the
42836-Corner Pole with Eskape
Hinge into the end of 42831.
Ax the tubes using (2) ½ inch
self-drilling screws (48320).
#42831
#42831
#42834
OR
#27727
SLIDING
ESKAPE
DOOR
HINGE
#42835
OR
#42836
CORNER POLE
WITH HINGE
#48320
#48320
#48320
