Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
ENGLISHENGLISH

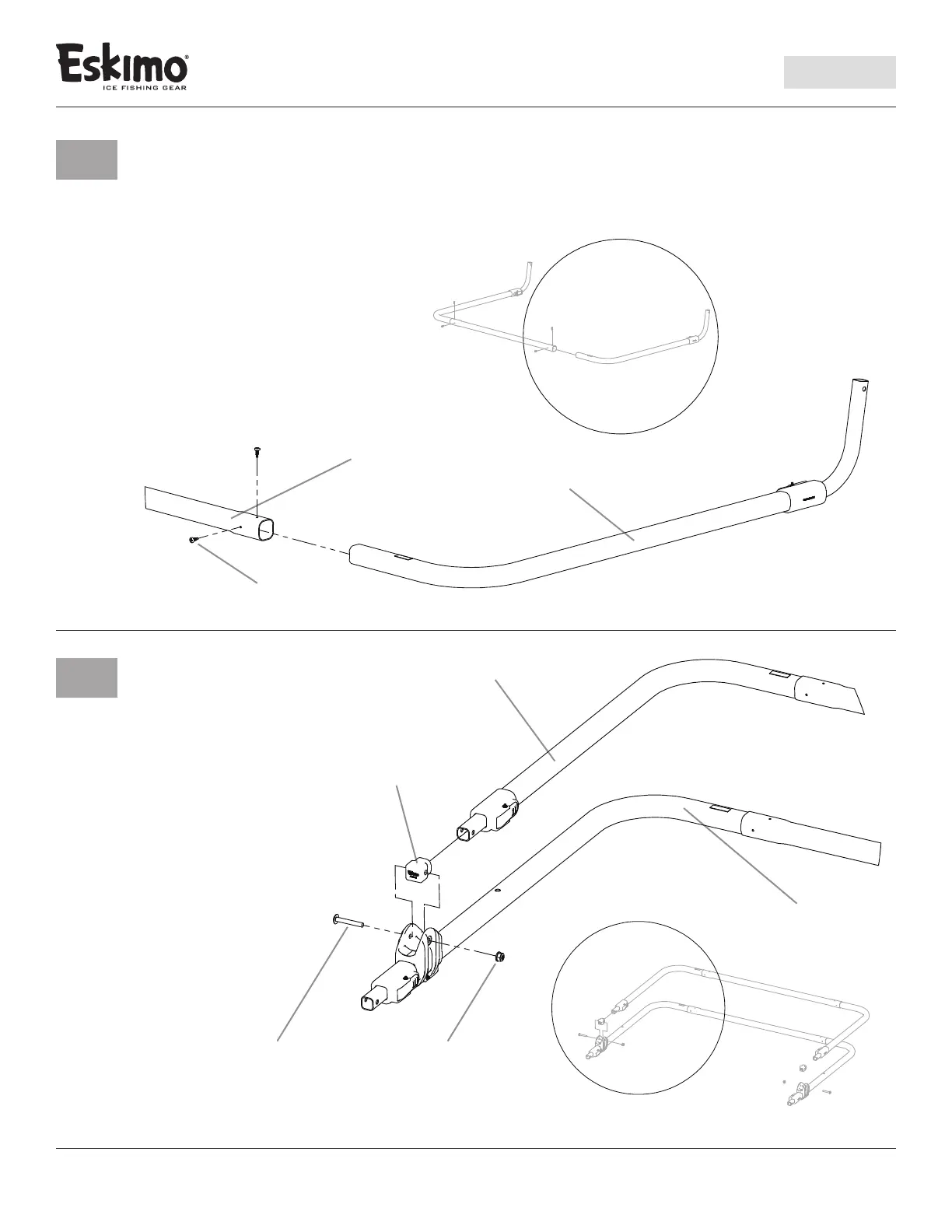

2.4
Insert the 42832-Bottom Corner
Pole into the end of 42831-Mid
Section Tube. Use (2) ½ inch
self-drilling screws (48320) to
ax the tube together at the
pre-drilled pilot holes on the
42831 tube.
On the other side insert the
42833-Bottom Corner Pole
into the end of 42831. Ax
the tubes using (2) ½ inch
self-drilling screws (48320).
2.5
Join the 42834/42831
pole assembly from Step 2.1
in this section with the
42835/42831/42836 pole
assembly from Step 2.3 in
this section using:
– (2) Pole Caps (36858)
– (2) 1-¾ Inch Pan Head Bolts (69180)
– (2) Flange Nylock Nuts (48261B)
#42831
#42832 AND #42833
#48320
#69180 #48261B
#36858
42824/42832/42824
ASSEMBLY
42835/42832/42836
ASSEMBLY
