Operator’s Manual
44100
|
Eskape™ 2000 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
ENGLISHENGLISH
E

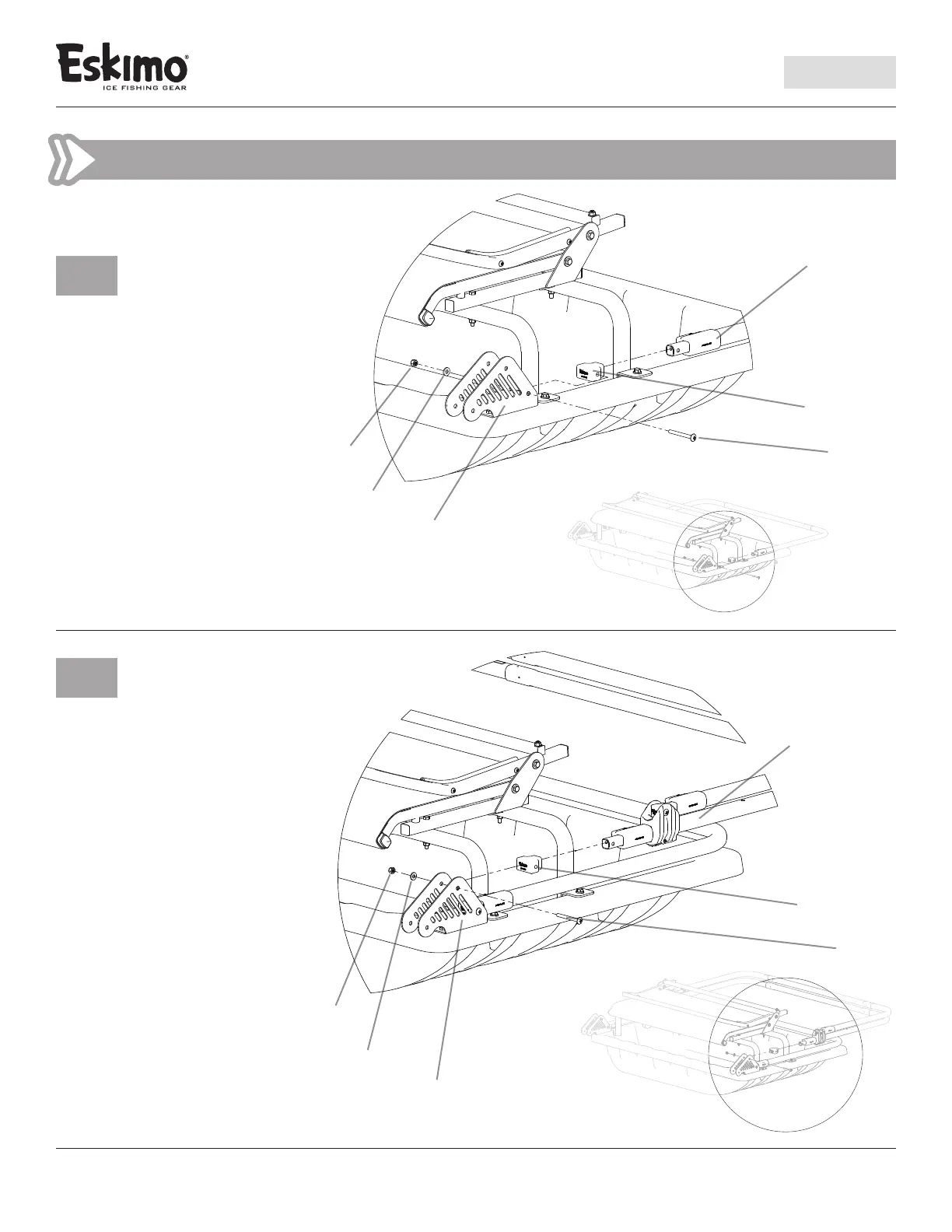

SECTION 3  Attaching Frame Pole Assemblies to Sled
3.1
Attach the 27727/42831/27727
rear pole assembly to hinges using:
– (2) Pole Caps (27821)
– (2) 2½ Inch Pan Head Bolts (67430)
– (2) ¼ Inch Washers (48261B)
– (2) Nylock Nuts (67538B)
NOTE:
Do not overtighten this assembly.
3.2
Attach the 42834/42831/42834,
42835/42831/42836 combined
middle pole assembly to hinges using:
– (2) Pole Caps (27821)
– (2) 2-½ Inch Pan Head Bolts (67430)
– (2) ¼ Inch Washers (48261B)
– (2) Nylock Nuts (67538B)
NOTE:
Do not overtighten this assembly.
27727/42831/27727
ASSEMBLY
42834/42831/42834 /
42835/42831/42836
COMBINED ASSEMBLY
#36618
#36618
#27821
#27821
#67430
#67430
#48261B
#48261B
#67538B
#67538B
