Installation guide Bench-top type temperature(humidity) chamber
ESPEC CORP.
13
CAUTION

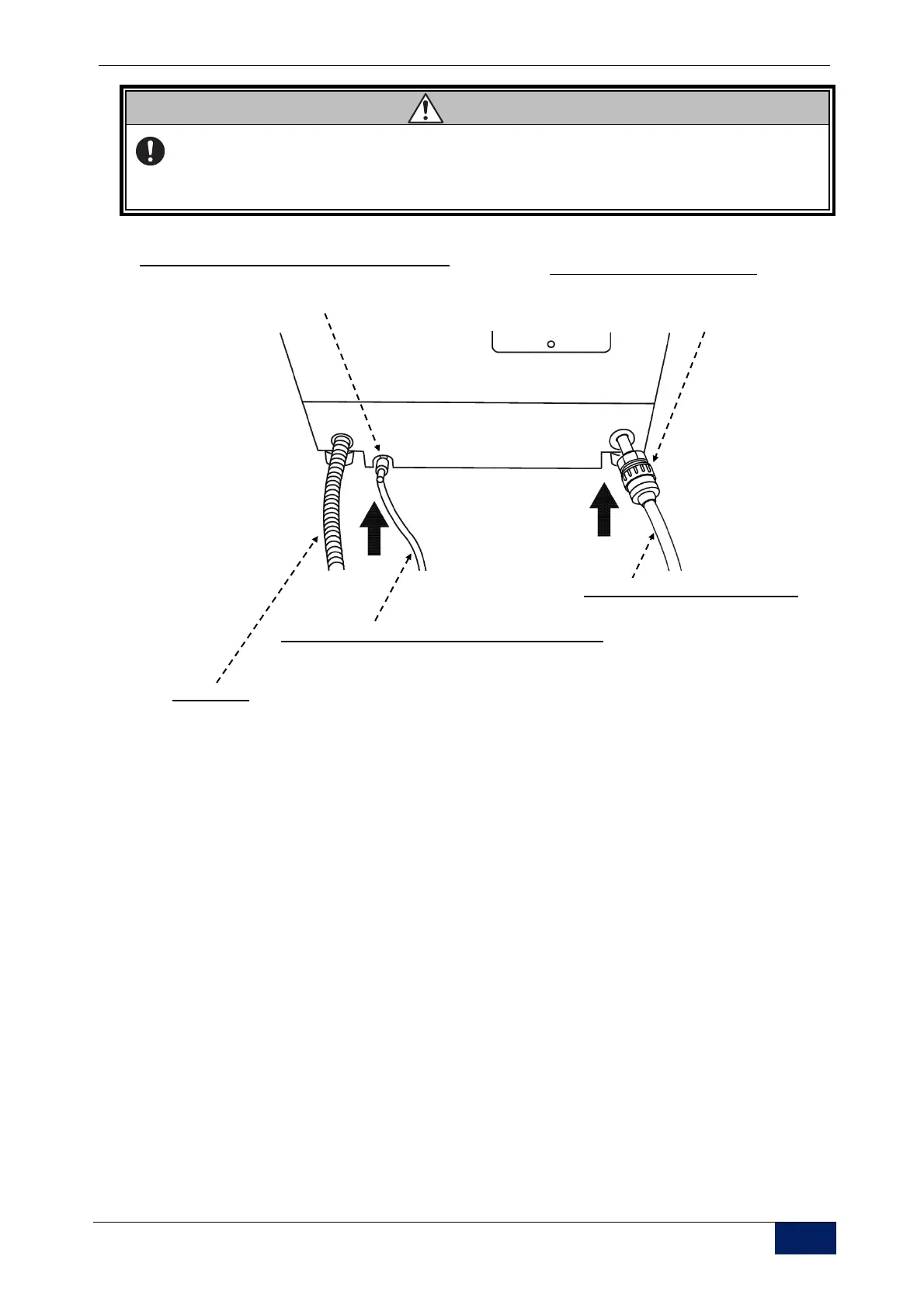

HOT WATER！ Be careful of hot water drainage from the humidifying
tray shortly after operation.
Aright after the operation, it may get burned by exhaust hot water.
Water supply sensor container drain port
A socket for draining when cleaning the
water supply pump filter. (SH only)
Humidifying tray drain port
A socket for draining when performing
temperature operation or cleaning the
humidifying tray. (SH only)
Humidifying tray drain hose
I.D. 8 mm hose with plug. (SH only)
Drain pipe
Drains water accumulated in the test area or
from the dew tray.
* Equipped at the bottom of the machinery
compartment on the SU.
ater supply sensor container drain hose
I.D. 5 mm hose with plug. (SH only)
